A Systematic Review of Complications Associated with Initial Learning Curve of Endoscopic Spine Surgery Highlighting the Necessity of Introducing an Effective Fellowship to Train Competent Endoscopic Spine Surgeons

Pang Hung Wu^1,2*, Hyeun Sung Kim¹, Dong Hwa Heo¹, Gamaliel Yu Heng Tan¹ and Tae Jang^1
*Correspondence: Pang Hung Wu, Department of Spine, Nanoori Gangnam Hospital, Seoul Spine Surgery, Korea, Email:

Keywords

Endoscopic spine surgery • Endoscopy • Surgery education • Training program in surgery • Complications in endoscopic spine surgery • Learning curve in endoscopic spine surgery

Abbreviations

TELD: Transforaminal Endoscopic Lumbar Discectomy; TELF: Transforaminal Lumbar Foraminotomy; TE-LRD: Transforaminal Endoscopic Lateral Recess Decompression; IELD: Interlaminar Endoscopic Lumbar Discectomy; IE-LRD: Interlaminar Endoscopic Lateral Recess Decompression; LE-ULBD: Lumbar Endoscopic Unilateral Laminotomy for Bilateral Decompression; EELD: Extraforaminal Endoscopic Lumbar Discectomy; ICELF: Interlaminar Contralateral Endoscopic Lumbar Foraminotomy; PECF: Posterior Cervical Endoscopy Foraminotomy; PECD: Posterior Endoscopic Cervical Discectomy; AECD: Anterior Endoscopic Cervical Discectomy; TETD: Transforaminal Endoscopic Thoracic Discectomy; TE-ULBD: Throacic Endoscopic Unilateral Laminotomy for Bilateral Decompression

Introduction

With the evolution of endoscopic spine surgery as an option in minimally invasive surgery, there is an increasing number of endoscopic spine procedures performed to treat various spinal conditions. The steep learning curve was one of the reasons for the low overall pick up rate of endoscopic spine surgery among spine surgeons. There is paucity of literature to evaluate the initial complication rate during the early phase of learning curve of endoscopic spine surgery. The experts who practise uniportal and/or biportal endoscopic spine surgery from various centres around the world had set up fellowship program to fulfil the training requirements of budding endoscopic spine surgeon to mitigate these complication risks in early phase of endoscopic practice. Our objective in this review is to evaluate the most consistent parameters of the learning curve which were procedure time and complication rate. We also discussed the importance of endoscopic spine surgery fellowship. We propose various educational strategies and highlight the difficulties encountered by mentors and fellows in the process of gaining knowledge and skills in endoscopic spine surgery.

Literature Review

Search strategy and criteria

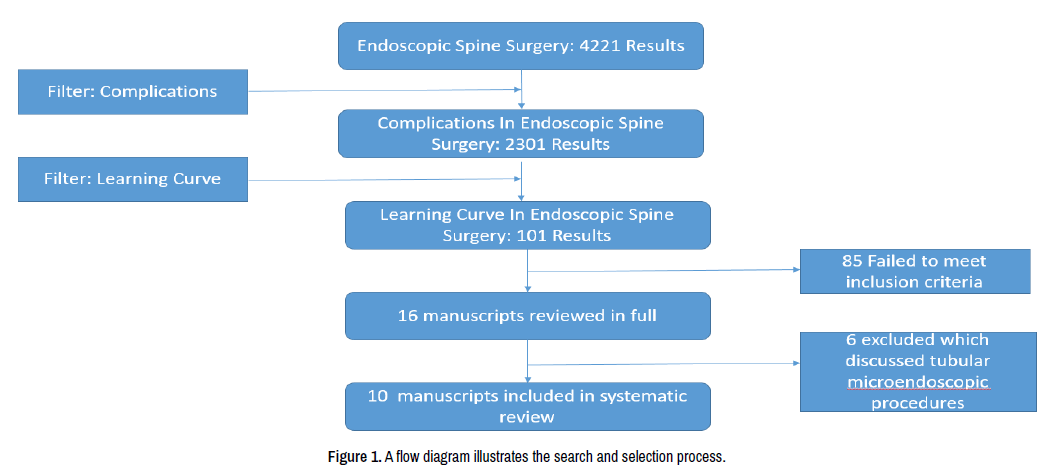

We used the Cochrane methodology [1] to perform a systematic review of PubMed for the learning curve of endoscopic spine surgery. We used three successive searches: “Endoscopic Spine Surgery” (4221 results), “AND complications” (reduced to 2301 articles), “AND learning curve” (reduced to 101 articles). A manual review of abstracts of 101 articles was performed. 85 articles did not describe procedures which used spinal endoscope and were excluded. 16 articles were reviewed in full, 6 articles which were describing techniques of tubular retractor with microendoscopic assisted decompression were excluded. 10 articles met the criteria of uniportal and biportal endoscopic surgeries evaluation of complications and operation timing in the initial learning curve were included in our systematic review [2-11]. None of the articles were case report (Table 1). The mean and median publication year was 2016. We included four Transforaminal Endoscopic Lumbar Decompression/Discectomy (TELD) studies, two Biportal Endoscopic Spine Surgery (BESS) studies, three Interlaminar Endoscopic Lumbar Discectomy (IELD) studies, one mixed TELD and IELD study in this review. No cervical or thoracic endoscopic spine procedures describing learning curve was found in our review. Of the 618 spinal endoscopic procedures included in this review, all were level IV evidence case series evaluating a retrospective cohort of patients operated at different time point of the performing surgeons (Figure 1).

Endoscopic learning curve parameters assessed were complication rate and operating time. In the 10 studies, total number of complications were 45 cases (7.2%) of which 33 cases (5.3%) occurred in the early phase of learning curve and 12 cases (1.9%) occurred at the later phase of learning curve. The most frequent reported complications were incomplete decompression (18 cases, 2.9%), incidental durotomies (13 cases; 2.1%), nerve root injuries (11 cases; 1.77%), discitis (2 cases; 0.32% of complications) and hematoma (1 case; 0.16%). 9 early revisions were reported of which 5 were done for dural tears, 4 were for incomplete decompression. 7 late revisions were done for recurrence of disc herniations. Joswig et al. [5] had a disproportionally high intraoperative conversion rate of 16/76 (21%) most of which were due to technical difficulties, while Passacantilli et al. [2] had 3/100 (3%) conversion due to technical difficulties. Various length of duration of procedures was reported as shown in Table 1. Due to heterogeneity of the 10 studies involved, we were unable to identify a conclusive number of cases needed to achieve asymptote for the learning curve. The operative time was observed to decrease throughout these case series prior to reaching asymptote with less variation in timing once asymptote of learning curve was reached.

Conclusion

There is a trend of higher complication and longer operation time during early phase of learning curve in endoscopic spine surgery. Good guidance from fellowship mentor is recommended to overcome the steep learning curve. It is evident that the differences in outcome can be significant between proficient and inexperienced surgeons. We suggest a stepwise approach in progression in delivery of progressively more challenging endoscopic procedures during the fellowship. This stepwise acquisition of knowledge and skills can be achieved structured teaching in simulation trainings, cadaveric workshop, live surgeries and various assessment tools moderated by the endoscopic mentors. Despite the allure of endoscopic surgery, it is important for the fellows to be competent with open procedures in order to resolve complications arising from endoscopic spine surgery with open conversion and manage challenging cases which required open surgical intervention.

Acknowledgement

Dr. Hyeun-Sung Kim and Dr. Pang Hung Wu contributed equally to this work as first authors. We would like to acknowledge scientific team members Ms. Jae Eun Park, Ms Elin Lee and Mr. Kyeong Rae Kim for providing assistance in statistical support, acquiring full text articles and managing digital works.

References

1. Andrea D. Furlan, Victoria Pennick, Claire Bombardier and Maurits van Tulder. “2009 Updated Method Guidelines for Systematic Reviews in the Cochrane Back Review Group.” Spine 34 (2009): 1929-1941.
2. Emiliano Passacantilli, Jacopo Lenzi, Federico Caporlingua and Lorenzo Pescatori, et al. “Endoscopic Interlaminar Approach for Intracanal L5‐S1 Disc Herniation: Classification of Disc Prolapse in Relation to Learning Curve and Surgical Outcome.” Asian J Endoscop Surg 8 (2015): 445-453.
3. Dae-Jung Choi, Chang-Myong Choi, Je-Tea Jung and Sang-Jin Lee, et al. “Learning Curve Associated with Complications in Biportal Endoscopic Spinal Surgery: Challenges and Strategies.” Asian Spine J 10 (2016): 624-629.
4. Hsien-Ta Hsu, Shang-Jen Chang, Stephen S. Yang and Chung Liang Chai, et al. “Learning Curve of Full-endoscopic Lumbar Discectomy.” Euro Spine J 22 (2013): 727-733.
5. Heiko Richter, Sarah Haile, Gerhard Hildebrandt and Jean-Yves Fournier, et al. “Introducing Interlaminar Full-Endoscopic Lumbar Diskectomy: A Critical Analysis of Complications, Recurrence Rates, and Outcome in View of Two Spinal Surgeons Learning Curves.” J Neurolog Surg 77 (2016): 406-415.
6. Sang-Soak Ahn, Sang-Hyeon Kim and Dong-Won Kim. “Learning Curve of Percutaneous Endoscopic Lumbar Discectomy Based on the Period (Early vs. Late) and Technique (in-and-out vs. in-and-out-and-in): A Retrospective Comparative Study.” J Korean Neurosurg Soc 58 (2015): 539-546.
7. Bin Sun, Changgui Shi, Zeng Xu and Huiqiao Wu, et al. “Learning Curve for Percutaneous Endoscopic Lumbar Diskectomy in Bi-needle Technique Using Cumulative Summation Test for Learning Curve.” World Neurosurg 129 (2019): 586-593.
8. Lee Dong and Lee Sang-Hao. “Learning Curve for Percutaneous Endoscopic Lumbar Discectomy.” Neurol Med 48 (2008): 383-388.
9. Sang-Min Park, Ho-Joong Kim, Gang-Un Kim and Min-Ho Choi, et al. “Learning Curve for Lumbar Decompressive Laminectomy in Biportal Endoscopic Spinal Surgery Using the Cumulative Summation Test for Learning Curve.” World Neurosurg 122 (2019): 1007-1013.
10. Haidong Xu, Xiaozhou Liu, Gang Liu and Jiangning Zhao, et al. “Learning Curve of Full-Endoscopic Technique through Interlaminar Approach for L5/S1 Disk Herniations.” Cell Biochem Biophys 70 (2014): 1069-1074.
11. Jin Yang, Chuan Guo, Qingquan Kong and Bin Zhang, et al. “Learning Curve and Clinical Outcomes of Percutaneous Endoscopic Transforaminal Decompression for Lumbar Spinal Stenosis.” Int Ortho 44 (2020): 309-317.
12. Ashwin Kumaria, Antony H. Bateman, Niall Eames and Michael G. Fehlings, et al. “Advancing Spinal Fellowship Training: An International Multi-centre Educational Perspective.” Euro Spine J 28 (2019): 2437-2443.
13. Manzar Hussain, Sadaf Nasir, Amber Moed and Ghulam Murtaza. “Variations in Practice Patterns among Neurosurgeons and Orthopaedic Surgeons in the Management of Spinal Disorders.” Asian Spine J 5 (2011): 208-212.
14. Nico Sollmann, Carmen Morandell, Lucia Albers and Michael Behr, et al. “Association of Decision-making in Spinal Surgery with Specialty and Emotional Involvement the Indications in Spinal Surgery (INDIANA) Survey.” Acta Neurochir 160 (2018): 425-438.
15. Dong Hwa Heo, Dong Chan Lee and Choon Keun Park. “Comparative Analysis of Three Types of Minimally Invasive Decompressive Surgery for Lumbar Central Stenosis: Biportal Endoscopy, Uniportal Endoscopy and Microsurgery.” Neurosurg Focus 46 (2019): 9.
16. Chang-Hyun Lee, Miyoung Choi, Dal Sung Ryu and Il Choi, et al. “Efficacy and Safety of Full-endoscopic Decompression via Interlaminar Approach for Central or Lateral Recess Spinal Stenosis of the Lumbar Spine: A Meta-analysis.” Spine 43 (2018): 1756-1764.
17. Antony H. Bateman, Jeremie Larouche, Christina L. Goldstein and Daniel M. Sciubba, et al. “The Importance of Determining Trainee Perspectives on Procedural Competencies during Spine Surgery Clinical Fellowship.” Global Spine J 9 (2019): 18-24.
18. Brian P. Calio, Christopher K. Kepler, John D. Koerner and Jeffrey A. Rihn, et al. “Outcome of a Resident Spine Surgical Skills Training Program.” Clin Spine Surg 30 (2017): 1126-1129.
19. Manyoung Kim, Hyeun-Sung Kim, Sung Woon Oh and Nitin Maruti Adsul, et al. “Evolution of Spinal Endoscopic Surgery.” Neurospine 16 (2019): 6-14.
20. Anthony Yeung, Andrew Roberts, Lifan Zhu and Lei Qi, et al. “Treatment of Soft Tissue and Bony Spinal Stenosis by a Visualized Endoscopic Transforaminal Technique under Local Anesthesia.” Neurospine 16 (2019): 52-62.
21. Sebastian Ruetten, Martin Komp, Harry Merk and Georgios Godolias, et al. “A New Full-endoscopic Technique for the Interlaminar Operation of Lumbar Disc Herniations using 6-mm Endoscopes: Prospective 2-year Results of 331 Patients.” Minim Invasive Neurosurg 49 (2006): 80-87.
22. Sebastian Ruetten, Martin Komp, Harry Merk and Georgios Godolias. “Surgical Treatment for Lumbar Lateral Recess Stenosis with the Full-endoscopic Interlaminar Approach versus Conventional Microsurgical Technique: A Prospective, Randomized, Controlled Study.” J Neurosurg Spine 10 (2009): 476-485.
23. Pang Hung Wu, Hyeun Sung Kim and Il-Tae Jang. “How I do it? Uniportal Full Endoscopic Contralateral Approach for Lumbar Foraminal Stenosis with Double Crush Syndrome.” Acta Neurochirurg 162 (2019): 305-310.
24. June Ho Lee and Sang-Ho Lee. “Clinical and Radiographic Changes after Percutaneous Endoscopic Cervical Discectomy: A Long-term Follow-up.” Photomed Laser Surg 32 (2014): 663-668.
25. Zhi-Qiang Jia, Xi-Jing He, Li-Tao Zhao and San-Qiang Li, et al. “Transforaminal Endoscopic Decompression for Thoracic Spinal Stenosis under Local Anesthesia.” Euro Spine J 27: 465-471.
26. Kim Ho and Park Jones. “Comparative Assessment of Different Percutaneous Endoscopic Interlaminar Lumbar Discectomy (PEID) Techniques.” Pain Phys 16 (2013): 359-367.
27. Hyeun Sung Kim, Nitin Adsul, Ankur Kapoor and Sung Ho Choi, et al. “A Mobile Outside-in Technique of Transforaminal Lumbar Endoscopy for Lumbar Disc Herniations.” J Visualiz Exp 138 (2018): 2.
28. Byapak, Paudel. “Percutaneous Endoscopic Lumbar Discectomy for All Types of Lumbar Disc Herniations (LDH) Including Severely Difficult and Extremely Difficult LDH Cases.” Pain Phys 21 (2018): 401-408.
29. Parviz Kambin and Steven Sampson. “Posterolateral Percutaneous Suction-excision of Herniated Lumbar Intervertebral Discs: Report of Interim Results.” Clin Orthop Relat Res 207 (1986): 37-43.
30. Sebastian Ruetten, Martin Komp, Harry Merk and Georgios Godolias. “Use of Newly Developed Instruments and Endoscopes: Full-endoscopic Resection of Lumbar Disc Herniations via the Interlaminar and Lateral Transforaminal Approach.” J Neurosurg Spine 6 (2007): 521-530.
31. Lee Jones, Kim Hane, Jang Jas and Jang Ian. “Structural Preservation Percutaneous Endoscopic Lumbar Interlaminar Discectomy for L5-S1 Herniated Nucleus Pulposus.” Bio Med Res Int 2016 (2016): 625-629.
32. Thomas Hoogland, Michael Schubert, Boris Miklitz and Agnes Ramirez. “Transforaminal Posterolateral Endoscopic Discectomy with or without the Combination of a Low-dose Chymopapain: A Prospective Randomized Study in 280 Consecutive Cases.” Spine 31 (2006): 890-897.
33. Hyeun Sung Kim, Harshavardhan Dilip Raorane, Pang Hung Wu and Yeon Jin Yi, et al. “Evolution of Endoscopic Transforaminal Lumbar Approach for Degenerative Lumbar Disease.” J Spine Surg 6 (2020): 424-437.
34. Urim Lee, Chi Heon Kim, Calvin C. Kuo and Yunhee Choi, et al. “Does Preservation of Ligamentum Flavum in Percutaneous Endoscopic Lumbar Interlaminar Discectomy Improve Clinical Outcomes.” Neurospine 16 (2019): 113-119.
35. Kyung-Chul Choi, June-Ho Lee, Jin-Sung Kim and Luigi Andrew Sabal, et al. “Unsuccessful Percutaneous Endoscopic Lumbar Discectomy: A Single-center Experience of 10,228 Cases.” Neurosurg 76 (2015): 372-380.
36. Sebastian Ruetten, Martin Komp, Harry Merk and Georgios Godolias. “Recurrent Lumbar Disc Herniation after Conventional Discectomy: A Prospective, Randomized Study Comparing Full-endoscopic Interlaminar and Transforaminal versus Microsurgical Revision.” J Spinal Disord Tech 22 (2009): 122-129.
37. Hyeun Sung Kim, Harshavardhan D. Raorane, Pang Hung Wu and Dong Hwa Heo, et al. “Incidental Durotomy during Endoscopic Stenotic Lumbar Decompression (ESLD): Incidence, Classification and Proposed Management Strategies.” World Neurosurg 139 (2020): 13-22.
38. Hyeun-Sung Kim, Sagar Sharma, Pang Hung Wu and Harshavardhand Raorane, et al. “Complications and Limitations of Endoscopic Spine Surgery and Percutaneous Instrumentation.” Ind Spine J 3 (2020): 78-85.
39. Chul-Woo Lee, Kang-Jun Yoon and Sung-Won Kim. “Percutaneous Endoscopic Decompression in Lumbar Canal and Lateral Recess Stenosis: The Surgical Learning Curve.” Neurospine 16 (2019): 63-71.
40. Hyeun Sung Kim, Byapak Paudel, Ji Soo Jang and Seong Hoon Oh, et al. “Percutaneous Full Endoscopic Bilateral Lumbar Decompression of Spinal Stenosis through Uniportal-Contralateral Approach: Techniques and Preliminary Results.” World Neurosurg 103 (2017): 201-209.
41. Han Ga Wi Nam, Hyung Suk Kim, Dong Keun Lee and Chun-Kun Park, et al. “Percutaneous Stenoscopic Lumbar Decompression with Paramedian Approach for Foraminal/Extraforaminal Lesions.” Asian Spine J 13 (2019): 672-681.
42. Dong Hwa Heo, Sagar Sharma and Choon Keun Park. “Endoscopic Treatment of Extraforaminal Entrapment of L5 Nerve Root (Far Out Syndrome) by Unilateral Biportal Endoscopic Approach: Technical Report and Preliminary Clinical Results.” Neurospine 16 (2019): 130-137.
43. Vittoria Bucknall and Alastair Gibson. “Cervical Endoscopic Spinal Surgery: A Review of the Current Literature.” J Orthopaedic Surg 26 (2018): 520.
44. Sebastian Ruetten, Martin Komp, Harry Merk and Georgios Godolias. “Full-endoscopic Cervical Posterior Foraminotomy for the Operation of Lateral Disc Herniations using 5.9-mm Endoscopes: A Prospective, Randomized, Controlled Study.” Spine 33 (2008): 940-948.
45. Hae-Dong, Jho. “Endoscopic Transpedicular Thoracic Discectomy.” J Neurosurg 91 (1999): 151-156.
46. Sebastian Ruetten, Patrick Hahn, Semih Oezdemir and Xenophon Baraliakos, et al. “Full-endoscopic Uniportal Decompression in Disc Herniations and Stenosis of the Thoracic Spine using the Interlaminar, Extraforaminal, or Transthoracic Retropleural Approach.” J Neurosurg Spine 29 (2018): 157-168.
47. Dominik Taterra, Bendik Skinningsrud, Przemysław A. Pękala and Wan Chin Hsieh, et al. “Artery of Adamkiewicz: A Meta-analysis of Anatomical Characteristics.” Neuroradiol 61 (2019): 869-880.
48. Choi Ken, Eun Sas, Lee Sang and Lee Hong, et al. “Percutaneous Endoscopic Thoracic Discectomy; Transforaminal Approach.” Minim Invasive Neurosurg 53 (2010): 25-28.
49. Chi Heon Kim, Chun Kee Chung, Tae-Ahn Jahng and Hee-Jin Yang, et al. “Surgical Outcome of Percutaneous Endoscopic Interlaminar Lumbar Diskectomy for Recurrent Disk Herniation after Open Diskectomy.” J Spinal Disord Tech 25 (2012): 125-133.
50. Kim Heon, Patel Rad, Paudel Bang and Jang Ian, et al. “Early Outcomes of Endoscopic Contralateral Foraminal and Lateral Recess Decompression via an Interlaminar Approach in Patients with Unilateral Radiculopathy from Unilateral Foraminal Stenosis. World Neurosurg 108 (2017): 763-773.
51. Jeong Hoon Kim, Nitin Adsul, Hyeun Sung Kim and Sung Ho Choi, et al. “Safety and Efficacy of Endoscopic Posterior Cervical Discectomy and Foraminotomy using Three-Point Plaster Traction Technique.” J Minim Invasive Spine Surg Tech 3 (2018): 23-26.
52. Ju-Eun Kim and Dae-Jung Choi. “Biportal Endoscopic Transforaminal Lumbar Interbody Fusion with Arthroscopy.” Clin Orthop Surg 10 (2018): 248-252.
53. Michael Y. Wang and Jay Grossman. “Endoscopic Minimally Invasive Transforaminal Interbody Fusion without General Anesthesia: Initial Clinical Experience with 1-year follow-up.” Neurosurg Focus 40 (2016): 13.
54. Dong Hwa Heo, Sang Kyu Son, Jin Hwa Eum and Choon Keun Park. “Fully Endoscopic Lumbar Interbody Fusion using a Percutaneous Unilateral Biportal Endoscopic Technique: Technical Note and Preliminary Clinical Results.” Bio Med Res Int 43 (2017): 8.
55. Richard J. Parent, Timothy A. Plerhoples, Eliza E. Long and Danielle M. Zimmer, et al. “Early, Intermediate and Late Effects of a Surgical Skills "Boot Camp" on an Objective Structured Assessment of Technical Skills: A Randomized Controlled Study.” J Am College Surg 210 (2010): 984-989.
56. Kim Sang, Fisher Jones, Delman Kim and Hinman Jan, et al. “Cadaver-Based Simulation Increases Resident Confidence, Initial Exposure to Fundamental Techniques, and May Augment Operative Autonomy.” J Surg Edu 73 (2016): 33-41.
57. Sujit Gnanakumar, Milosz Kostusiak, Karol P. Budohoski and Damiano Barone, et al. “Effectiveness of Cadaveric Simulation in Neurosurgical Training: A Review of the Literature.” World Neurosurg 118 (2018):  88-96.
58. Donna J. Keyser, Joan M. Lakoski, Sandraluz Lara-Cinisomo and Dana J. Schultz, et al. “Advancing Institutional Efforts to Support Research Mentorship: A Conceptual Framework and Self-assessment Tool.” Acad Med J 83 (2008): 217-225.
59. Silvia D. Chang, Savvas Nicolaou and Bruce B. Forster. “Research Mentorship for our Residents and Fellows: A Vital Supplement for the Health of Our Specialty.” Curr Prob Diagn Radiol 46 (2017): 349-350.
60. Andrew J. Schoenfeld, Amandeep Bhalla, Jaiben George and Mitchel B. Harris, et al. “Academic Productivity and Contributions to the Literature among Spine Surgery Fellowship Faculty.” Spine Soc 15 (2015): 2126-2131.
61. Rudi Campo, Arnaud Wattiez, Vasilis Tanos and Attilio Di Spiezio Sardo, et al. “Gynaecological Endoscopic Surgical Education and Assessment: A Diploma Programme in Gynaecological Endoscopic Surgery.” Euro J Obstet Gynecol Reproduct Biol 199 (2016): 183-186.
62. Sandra Y. Lin, Kulsoom Laeeq, Masaru Ishii and Jean Kim, et al. “Development and Pilot-testing of a Feasible, Reliable, and Valid Operative Competency Assessment Tool for Endoscopic Sinus Surgery.” Am J Rhinol Allerg 23 (2009): 354-359.
63. Jeremie Larouche, Albert J. M. Yee, Veronica Wadey and Henry Ahn, et al. “Development of a Competence-Based Spine Surgery Fellowship Curriculum Set of Learning Objectives in Canada.” Spine 41 (2016): 530-537.
64. Harsha Malempati, Veronica M. R. Wadey, Scott Paquette and Hans J. Kreder, et al. “Spinal Surgery Fellowship Education in Canada: Evaluation of Trainee and Supervisor Perspectives on Cognitive and Procedural Competencies.” Spine 38 (2013): 83-91.
65. Marcel F. Dvorak, John B. Collins, Lucas Murnaghan and John R. Hurlbert, et al. “Confidence in Spine Training Among Senior Neurosurgical and Orthopedic Residents.” Spine 31 (2006): 831-837.
66. Ito Fan and Ito Zane. “Step-by-Step Sublaminar Approach with a Newly-Designed Spinal Endoscope for Unilateral-Approach Bilateral Decompression in Spinal Stenosis.” Neurospine 16 (2019): 41-51.
