Series of activated carbon pellets were prepared from date palm leaves (Phoenix dactylifera L.) (DPL) primarily pre-carbonized at lower temperature and converted into fine grain powder to produce self-adhesive properties. The grain powder produced was chemically activated with KOH having a concentration of (0.0 - 0.09) by moles (M) converted into a pellet by applying 12 metric tons of pressure, before being carbonized at 1000oC in a nitrogen environment, using a multi-step heating profile. Wide angle X-ray diffraction (XRD) was used to characterize the crystalline structure and estimate the crystallite parameters (d002, Lc and La) and amorphous contents of the activated carbon produced. The surface function groups were analyzed by FTIR transmission spectra. X-ray diffraction analysis shows that the structure of the activated carbon produced is non-graphitic. The interlayer spacing (d002) increased linearly with increasing KOH concentrations, while stack diameter (La) and stack height (Lc) of the graphitic like crystal were observed to decrease with increasing KOH concentrations. The amorphous contents were decreased for AC treated with 0.1 M and 0.2 M of 49% and 48% respectively and further increased from 0.02 M to 59% amorphous. The KOH treatment process, The FTIR transmission spectrum of the carbon pellets showed the presence of some bands related to organic compounds, which were still not completely released in the AC pellets. Implies that the surface organic functional groups occurring were due to the change in surface nature caused by the KOH treatment process.
Activated carbon pellets • Date palm leaves • KOH • Crystallites parameters • Amorphous contents • Surface function groups
Activated carbon is the collective name for a group of porous carbons manufactured to exhibit extraordinary application in different fields such a wastewater treatment and absorption [1-3] effective electromagnetic wave absorption [4] super capacitor [5] and double layer capacitor [6] due to unique pore structure, a high specific surface area and chemical stability. Very often, carbonizing carbonaceous carbon such as biomass and agricultural by-products, will produce carbon materials as the main product and different volatile compounds as by-product [7,8] Therefore, there are many carbonaceous material can be used to prepare activated carbon materials can be produced by either treatment of a char with oxidizing gases, or carbonization of carbonaceous materials with simultaneous activation by a chemical or physical process [8-12]. In a chemical activation process, the starting materials are first soaked with dehydrating agents to facilitate surface properties at relatively stable temperatures [13,14]. The pyrolysis mechanism of the biomass material at lower temperatures as primary carbonized process is found to be beneficial in breaking palm leaves' microstructure and or chemical bonds, causing them to release gasses, tar and char [8]. In addition, pyrolysis mechanism at low temperature is also beneficial to convert the biomass materials into a fine grain powder by milling process to produce self-adhesive carbon grain [15-17].
The use of KOH for the activation of the biomass materials to prepare activated carbons with high surface area and porous sizes has been known [14-21]. It has been found that date palm leaves chemically activated with KOH synthesis active carbon with micropores and mesopores structure [14]. In addition it has been found that activated carbon based bituminous coal activated with KOH exhibits a high surface area of 3300 m2/g [18].
Analysis of activated carbon can be made in terms of crystalline structure crystallite parameters (interlayer spacing (d002) stack diameter (La) and stack height (Lc) amorphous content and strain, that are randomly distributed and oriented throughout the sample are very common [22-26]. It has been found that the crystallite parameters of the carbon material increased with the crystalline of the precursor [27] while the small crystallite perimeters reflected structure or defect as a resultant of higher porosity content [3]. Several attempted methods that have been used to improve the crystallite parameters, such as compression pressure [16,17] and increasing carbonization temperature or annealing process [28,29].
In different approaches, several researchers [30-34] identify two types of broadening; the crystal size and strain and the effects of simplified dislocation configurations on diffraction-line broadening were modeled. a) Dislocation model based on the mean square strain of dislocated crystals [33] and b) A phenomenological model based on anisotropy of the elastic properties of crystals [35]. In addition, the size-broadened and strain-broadened profiles can be approximated by either the Voigt function (a convolution of the Lorentz and Gaussian function) or the Double Voigt function [36]. So far, many theories and methods have been used to estimate the crystallite parameters (Debye-Scherrer equation), line-broadening analysis and strain broadening [18-32] and amorphous content [25,26].
In the present research, the biomass date palm leaves were used as stating material for preparation of activated carbon by chemical activation with KOH. The crystallite parameters, amorphous contents and the functional groups of activated carbon activated by KOH were studied and compared with the review data. An X-ray diffraction trace program was used to calculate the crystallite dimensions to assess the accuracy.
Sample preparation
Initially date palm leaves were washed thoroughly to remove dust and other contamination and dried at 100°C. Then held in a box furnace (MPA6/400°C) equipped with a vacuum pump (Eyela, A-35), primary for precarbonized at 300°C for four causewayed a considerable weight loss with an average of 34% present. The pre-carbonized palm leaves were cut it to a small size and converted into a fine grain powder in a micro-hammer cutter for 20 hours a milling time to produce the self-adhesive properties. The grain power produced is stored in a clean, self-sealing plastic bag in silica gel until used. About 250 g powders were impregnated in a 1000 ml KOH solution having concentrations of 0.01, 0.02, 0.03, 0.04, 0.05, 0.06, 0.07 and 0.09 by moles (M). The mixture was magnetically stirred for one hour until mixed and kept for 16 h before being dried in an oven at 100°C for 24 h. The dried mixture was ball milled again for 5 hours and converted into a grain pellet (GPs) by applying 12 metric tons of pressure on 2 g of powder in a mold of 2.7 cm diameter and 8 cm length. The carbonization process was performed using the Vulcan Box Furnace (3-1750) at 1000°C in a nitrogen atmosphere in a heating chamber, starting at 1°C/min from room temperature to 375°C where it was held for 1 hour before heating was resumed at 3°C/min to 800°C and then 5°C/min to 1000°C which it was finally held for 5 minutes. Then the system was automatically allowed to cool down naturally to room temperature. Then samples were washed thoroughly by hot distilled water to clean their surface until a pH of 5 and then dried in an oven at 100°C for 4 hours. The diameter and thickness of the pellets were measured using a micrometer with six readings taken for each measurement and the average obtained. The bulk densities are determined by dividing their weight into volume.
X-ray diffractions
A series of measurements was carried out to characterize the structure of activated carbon samples by using X-ray diffraction techniques (Bruker Advanced Solution AXS D8) operating at 40 KV and 30 mA, with Cu Ka X-ray of wavelength (1.5404 Å). The measurements of X-ray diffraction were taken for each sample, at diffraction angle of 2Æ? over ranges of 7oC– 60oC, in steps size of 0.04°C as shown in Figure 1. Then diffraction intensity profiles recorded were corrected to the background line and instrumental broadening and then fitted into a symmetrical Gaussian distribution curve to release overlapping. The crystallite units of the carbon sample (d002, Lc and La) can be calculated from the full width at half maximum (FWHM) of the (002), (100) and (110) diffraction peaks using Bragg’s equation and Deby-Sherrier equation (Equation 1) displayed in Figure 2. An X-ray diffraction program (Trace 1.4) program from Diffraction Technology PTG LTD, Australia) refines the intensity of each peak (as a separate variable), the peak shape, as well as subtracts the background line and eliminates the Ka2-peak from the diffraction intensity that was used to calculate the crystallite parameters as shown in Figure 3.
Where K is the shape factor which is equal to 0.94 for Lc and 1.84 for La and β is the width of a reflection at half-maximum expressed in radians (Figures 1-3).
Figure 1. X-ray diffraction of AC carbonized at 1000°C.

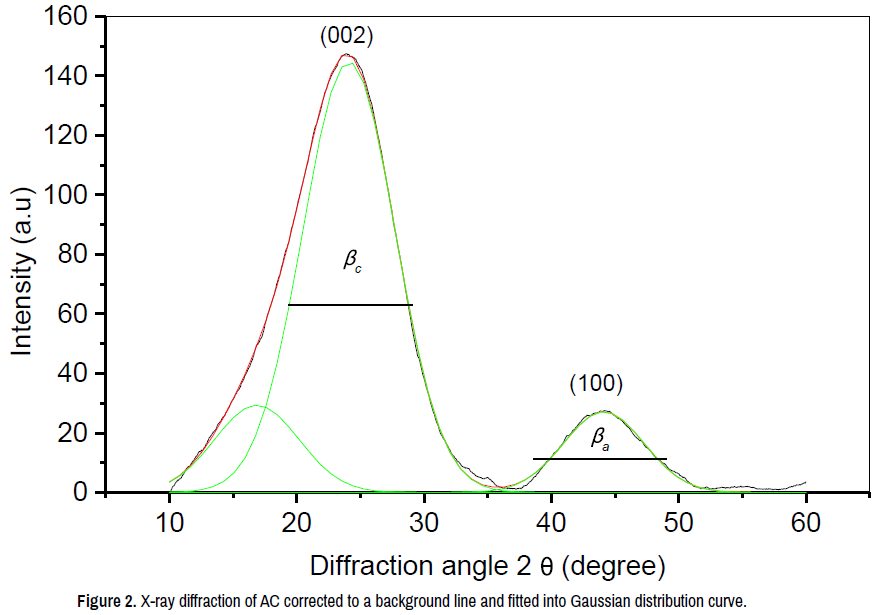

Figure 2. X-ray diffraction of AC corrected to a background line and fitted into Gaussian distribution curve.
Figure 3. Trace X-ray diffraction program used to determine crystallite parameters.
Amorphous content
According to the Debye-Scherrer equation the diffracted intensityI(s), profiles comprised of three the components: (A) profile related to the crystalline size of the sample, f(s), broadened by convolution with the profile due to instilment effects, g(s) and the background line (BCL) [25,28] given as:
Normalize diffraction intensity profiles by divided equation (2) by BCL as [37]
The Deby-Scherrer interference equation rearranged in the atomic unit’s as [25,26].
Where
fp = is the scattering factor representing the background line
r = is the inter atomic distance
This involved two steps: (a) draw the background line within the total intensity oscillations (b) divide the total intensity by the background line to give an unsymmetrical reduced intensity J(s) in atomic units at the (002) peak [25]. Based on equation 2.11, the contribution from the amorphous content of the carbon pellets can be deducted from the scattering intensity in atomic units as given in Equation 2.13.
Where,
xa = is the fraction of amorphous structure given by the expression [25]
Pn = is the fraction of n the layers associated in stacks having layered groups,
and Si (s) = is a symmetrical reduced intensity.
The value of xa first, plot
vs. by selecting different values of xa until a symmetrical curve is produced. Then, this symmetrical curve is fitted to equation 2.12 and the results obtained are used to adjust the value of xa again, until both sides of the equation have been converted to the equivalent symmetrical form. Then the optimum value of xa that which makes the profile the most symmetrical [25] (Figures 4 and 5).
Figure 4. X-ray diffraction intensity of AC corrected for background line within layer.
Figure 5. X-ray diffraction intensity of AC normalized into reduces intensity.
FT-IR transmittance spectra
FT-IR Transmittance Spectra was carried out to analyze the functional groups of untreated and treated grain powder and activated carbon produced. FT selected ACP samples were crashed into powder and mixed with KBr and compacted to form thin pellets. The FTIR transmission spectra were collected using a RFX-65 spectrophotometer capable of a maximum resolution of 0.12 cm-1 and equipped with an MCT liquid nitrogen-cooled detector, interferometer, detector and computer software, (model-KVB/ Analects, INC). Infrared spectra were collected by using 2 to 5 milligrams (mg) of sample in a potassium bromide (KBr) pellet. The measurement was carried out using the Perkin Elmer System 2000 Fourier Transform Infrared (FTIR) with a pulsed laser carrier and a deutera-tedtriglycine sulfate detector. All the CPs was scanned from 400 to 4000 (cm-1) averaging 10 scans at 1.0 cm-1 interval with a resolution of 0.25 cm-1.
X-ray diffraction (XRD)
Figure 4 shows the X-ray diffraction profile diffraction intensity, initially at (002) and (100) broad and overlapped (002) and (100) reflection intensity results of non-graphic structure [24]. Similar observations have been shown for activated carbon-based petroleum [2] and solid carbon pellets from date palm leaves prepared at different compression pressures [16]. The diffraction profile has been corrected to the background line and fitted to the Gaussian distribution curve as shown. As the diffraction profile overlaps and consists of four broad intensity peaks i.e. (002), (100) and (004) corresponding diffraction angles are 25.36°C, 45.1°C and 52.85°C diffraction angles, respectively. After correction, the diffraction intensity and Bragg’s peaks were the same as in a graphite-like structure and the layer separation was slightly further apart than in a graphite structure as shown in Figure 4.
Figure 5 show that the interlayer spacing (d002) increased linearly with increasing the KOH concentration, indicating that the carbon samples had a high degree of disorientation or slightly non-graphitic structure [38]. The results can be interpreted as: the KOH first reacts with the surface functional groups in grain powder and then some carboxyl and/or its compounds intercalate by reducing the crystalline layers of the activated carbon produced to Figure 6 showing the crystallite parameters (Lc and La) of the AC decreased continually with increasing KOH treatment. A decrease in the crystallite parameters of the CPs may lead to the development of the pore structure in the carbon sample produced compared to the AC prepared from untreated and that treatment with different concentration of KOH. A similar result on crystallite parameters was observed on solid carbon pellets from date palm leaves prepared by using different compression pressure [16]. The data of d002, Lc and La were compared to those of AC prepared from olive stones [38-41] coal tar pitch (CTP) carbonized at 800oC and commercial AC (AC-Helas) were found to be in good agreement, but La is larger than that of commercial AC [24] (Figures 6 and 7).
Figure 6. d002 vs. KOH.
Figure 7. La and Lc vs. KOH.
Amorphous content
The asymmetry reduced the intensity of J(s) from the X-ray diffraction, so that the value of the amorphous fraction (xa) was adjusted for the plot of Si (s) vs. s to become symmetrical as shown in Figure 8. Indicating that it is possible to obtain a very precise fit by testing a considerable number of n distributions at the (002) peak of reduced intensity in atomic units for the AC sample treated by 0.07 M KOH [25]. The expression used to estimate the amorphous fraction is very sensitive to the proper choice of xa, whose optimum value is that which makes the reduced intensity Si (s) at (002) Bragg's peak, most symmetrical. Also, Figure 8 illustrates the effects on the Si (s) profile of using different values of n until match. Figure 9 shows the good agreement obtained by matching the value of n to the experimental values of the reduced intensity profiles Si (s). The symmetrical profile measurements give the value xa of 0.59, for the AC treated with 0.07 M KOH, indicating the structure of the carbon sample to be about 59 percent amorphous. The adjusted fitted curve gives Pn = 0.0359, n = 3, S*max = 0.2612 Å-1. The values of xa decreased and increased greatly as the KOH concentration increased from 0 to 0.07 M. These findings indicate that the KOH applied on palm leaves grain powder can transform the activated carbon structure into a more amorphous state (Table 1, Figures 8 and 9).
| KOH (M) | Xa % |
|---|---|
| 0.00 | 50 |
| 0.01 | 49 |
| 0.02 | 48 |
| 0.03 | 51 |
| 0.04 | 54 |
| 0.05 | 56 |
| 0.06 | 57 |
| 0.07 | 59 |
Figure 8. X-ray diffraction intensity of AC corrected for background line within layer.
Figure 9. X-ray diffraction intensity of AC corrected for background line within layer.
FT-IR transmittance of activated carbon (AC)
FTIR transmission spectra of the AC show broad bands were observed in all untreated and treated grain powder samples. The adsorption is at 597 cm-1, which can be assigned to C-H stretching vibrations in the carbonyl groups and at 1069 cm-1 due to C-O-C stretching [42]. The band at 1652 cm-1 was due to C=O stretching in the aromatic rings. The FTIR spectrum showed a band at 2365 cm-1 due to C=C, probably from the alkaline groups and a band at 2939 cm-1 due to asymmetric C–H stretching vibrations, indicating the presence of some aliphatic species, such as olefins or acetylene groups (Figure 10).
Figure 10. FTIR data for the untreated and treated grain powder with KOH.
X-ray diffraction profiles show that the structure of activated carbon produced is non-graphitic. The interlayer spacing (d002) increased linearly with increasing KOH concentrations, while stack diameter (La) and stack height (Lc) of the graphitic like crystal were observed to decrease with increasing KOH concentrations. The amorphous contents increased with KOH concentration.
The FTIR transmission spectrum shows a broad absorbing band for the carbon pellets and showed that C=C stretching vibration. The data also, the FTIR transmission spectrum of the carbon pellets carbonized at 1000ºC showed the presence of some absorption bands that are related to organic compounds, which were still not completely released in the AC pellets at this temperature.
