An Efficient Solver of Eigenmodes for a Class of Complex Optical Waveguides

Jianxin Zhu^* and Luying Li
^*Correspondence: Jianxin Zhu, Department of Mathematics, Jinan University, Guangzhou 510632, China, Email:

Keywords

Eigenmode • Helmholtz equation • Optical waveguide • Numerical method • Kummer functions

Introduction

It is known that the eigenmodes play an important role in optimizing the designs of the microwave engineering for the integrated circuitry [1], microstrip substrates [2], and the integrated optical devices [3,4]. When we compute the wave propagation by use of the eigenmode expansion method, the high-precision propagation constants are needed [5-17]. For the complex and open waveguide with a curved interface, firstly we can construct both the local orthogonal coordinate and the equation transformations [18], and then the original propagation model (Helmholtz equation) is turned to a linear second-order partial differential equation with a flatted interface. The corresponding Sturm-Liouville (S-L) problem is represented as where the variable x is a given value and β is a propagation constant. That is, β2 is known as the eigenvalue λ . Secondly, the open domain is truncated by the perfectly matched layer (PML) [19], or by a coordinate stretching transformation [20,21]. Then, the corresponding S-L problem is changed as with the interface and the boundary conditions (the domain is bounded), where is an approximate value of β . When the transverse variable is discretized, there is a discrete set of eigenmodes, which is composed of a finite number of perturbed propagating modes, an infinite sequence of perturbed leaky modes and an infinite number of Berenger modes. Some numerical methods, such as the finite element method (FEM) [22-25], the finite difference method (FDM) [26], the multidomain pseudospectral method [27-29], and the B-spline modal method [30], approximately turn the original S-L problem to a matrix eigenvalue problem. However, we still hardly obtain high-precision eigenvalues, because these methods will produce large and complex matrices causing the difficulties in numerical implementation. For this reason, a different kind of treatment has been proposed, that is, turning the S-L problem to a root-finding problem of a nonlinear dispersion equation, where the roots of the equation are the eigenvalues or the propagation constants. There are some efficient methods to treat slab waveguides [31-33] and rib waveguides [34]. For the varying refractive index’s waveguides terminated by the PMLs, the corresponding S-L problem is expressed as and there are some approximate dispersion equations, which are established by the Wentzel-Kramers-Brillouin (WKB) method [35] and the differential transfer matrix method [36-40]. Yet, these methods cannot guarantee the approximation accuracy of the propagation constants. Although an exact dispersion equation for the waveguide with varying refractive-index profile has been constructed [41], it involves the derivatives of the refractive-index function and highly oscillatory integrals leading to the difficulties in numerical computation. Recently, we give efficient approximations of dispersion relations for the varying refractiveindex waveguides with the two flat interfaces, where the waveguides are open on both sides and terminated by two PMLs, and whose S-L problem is the simple form: with the interface and the boundary conditions [42]. In this paper, we extend our previous works [42] to the ones for a class of complex waveguides. Namely, the S-L problems are extended to with the interface and the boundary conditions, where the domain is open on one side. For simplicity, we only develop a solver of computing the transverse electric (TE) eigenmodes for the waveguides, which are terminated by the PML along one transverse direction. The rest of this paper is organized as follows. In Section 2, a modified S-L problem (dispersion equation) is introduced when a PML is used, and a solver for the dispersion equations for the TE case is constructed, where the coefficient functions are approximated by the piecewise polynomials of degree two, and the approximate eigenfunctions are expressed analytically by the Kummer functions. In Section 3, the numerical simulations for the TE case are given. Finally, the conclusions are presented in Section 4.

Mathematical Modelling and Implementation of Eigenmodes

Now, we start from the following equation, which can be obtained by transforming the Helmholtz equation as mentioned above:

(1)

When the eigenmode expansion method is used to solve the Eq. (1), the S-L problem of the operator must be considered [43], where x is a given value.

For a dual-layer planar waveguide with the transverse variable z shown in Figures 1 & 2, we consider the S-L problem of the operator L (dispersion equation) as follows:

(2)

where can be regarded as the functions only related with variable z since x is a given value λ is an eigenvalue of the operator L , Ï? is an eigenfunction corresponding the eigenvalue λ , λ = β2 and β is called the propagation constant.

By the feature of the optical waveguides, we assume that and are constants as the variable z is large enough. Namely, there is a d making and are two constants. So, when z > d , the dispersion equation can be simply written as follows:

(3)

In order to numerically solve Eq.(2), we must truncate the open domain to the finite one. Thus, we choose a PML to truncate the open domain, that is, making a complex coordinate stretching transform:

(4)

where σ(τ) = 0 for 0 ≤ z ≤ H , otherwise ; here

Then, Eq.(2) is approximately turned as the following form:

(5)

where .

Case 1: when 0 ≤ z ≤ H , we make the transformation . Then, the equation

(6)

can be transformed to the following form:

(7)

where

Case 2: when H < z ≤ D , we make the other transformation . Then, the equation becomes

(8)

that is,

(9)

It can be transformed to the following form:

(10)

where is a constant.

Thus, the original eigenvalue problem of the operator L is approximated by

(11)

where for

Remark 1:

For the reason that it is a differential equation with variable coefficients in [0, d] , we first divide the interval [0, d] into k subintervals with . Then the subintervals are denoted by related to and the function s₀ (z) is interpolated by a polynomial of degree two, and y_j (z) is the approximation of the φ (z) as z∈ I_j . Thus, the form of approximated equation is

(12)

where the coefficients of approximated equation are given by

(13)

here

Eq.(12) can be changed to the form of the confluent hypergeometric equation, and a pair of linearly independent solutions {m_j (z), n_j (z)} as z∈ I_j are given by the Kummer functions. Then the approximated solution of φ as z∈ I_j can be expressed in the following form

Suppose ω_j (z) is the approximation of , we have

(14)

Since s₁ is constant for d < z < D , the results of field satisfy

Set z₀ = 0 and z_k+1 = D , then two linearly independent solutions are shown on [z_k , z_k+1] as follows:

(15)

with the boundary conditions φ (0) = 0 and . Therefore, the approximated solutions of φ at z₀ = 0 and φ at z_k+1 = D should be defined as y₁(0) = 0 and y_k+1(D) = 0 , respectively

To obtain the constants of A_j and B_j ( j = 1, 2,..., k) we require the solutions ω_j(z) of field and their first order derivatives are continuous at z_j. Thus, the interface conditions at z_j ( j =1,2,...,k) are

(16)

that is,

(17)

According to these conditions, a linear system of A_j and B_j ( j =1,2,...,k) can be obtained.

(18)

here ( j =1,2,...,k) . In order to simplify these equations, let R_j=B_j/A_j (j=1,2,...k), the dispersion relations of are

(19)

Specially, when j = k ,

(20)

The evaluation on R_k+1 depends on R₁ recursively. Furthermore, R_k+1 is determined by . Hence, the dispersion relation with respect to is as follow:

(21)

Special Case: when , the S-L problem of the operator L becomes

(22)

where depends only on z , and is a constant. Moreover, the top and bottom boundary conditions are . Applying a polynomial of degree two to interpolate the function , then we get the approximated equation

(23)

where

(24)

Referring to the Kummer functions, eventually, we derive the dispersion relations as follows

(25)

Asymptotic solutions for the TE case: for the Berenger modes in a dual-layer optical waveguide terminated by a PML, is the average value of s₀ (z) at the 17 points distributing equally within the interval [0, d] . We can obtain the following formula [44]:

(26)

where Im(W₁) > 0 ,η is an integer, and

except

And asymptotic solutions of leaky modes are also obtained as follow [44]:

(27)

where

; for

At last, we find the roots of the equation by the Müller’s method with suitable initial values, which are taken by the asymptotic solutions.

Numerical Examples

The theory of this paper has been implemented and tested on a number of examples. For simplicity, we still denote β as in the following statements.

For example, let C =16 , d = 0.8 , H =1.6 , D = 1.7 , s₁ =1.45² ,

.

Therefore, s₀(z) = 60.84[sech(z − 0.4) − (0.4 − z)⁶ + 3(0.4 − z)²/7.8] for 0 < z ≤ d .

The propagation constants β of propagating modes satisfy min(s₀(z)) < β² < max(s₀(z)) for 0 < z ≤ d . Thus, the propagation constants of propagating modes, leaky modes and Berenger modes are shown in Tables 1, 2 and 3, respectively. In Table 1, β₁ , β₂ and β₃ are taken as the initial values. In Tables 2 and 3, β₁ , β₂ and β₃ are represented as the iterative values as k = 16, 32 and 64, respectively.

Conclusions

To compute the eigenmodes of the complex optical waveguide which is open on one side, based on our previous methods, the second-order linear differential equation in standard form of the corresponding S-L problem has been reduced to the equation without the first derivative term. Then, a PML is used to terminate the open waveguide. Also, the coefficient function of the simplified S-L problem is approximated by a piecewise polynomial of degree two. Since the solutions of the approximated equation in each layer are analytically expressed by the Kummer functions, the approximate dispersion equation is established to the TE case. Apparently, the approximate solutions will converge to the exact ones as the number k of subintervals tends to infinity, or equivalently the step size tends to zero. In the numerical example, we find out the roots of the dispersion equation by the Müller’s method, where three different asymptotic solutions of slab waveguides play the roles of initial values. Numerical simulations show that the iteration converges fast and high-precision values for propagation constants may be obtained only if a suitable root-finding method is adopted and some good initial values are given. Thus, further research will be performed in future.

Appendix

When a ≠ 0 , let’s begin to consider the second order differential equation as follow

(28)

by the change of variables , we have

(29)

where C = c −[b²(4a)] .

Further change of variables

(30)

leads to

(31)

which is in the form of the confluent hypergeometric equation

(32)

with . Two linearly independent solutions are given by the Kummer functions M(A, B, x) and U(A, B, x) .However, U(A, B, x) has a branch point x = 0 , Hence, two linearly independent solutions of Eq. (28) are given by

(33)

where

Recall the following differential formulas for the Kummer function:

(34)

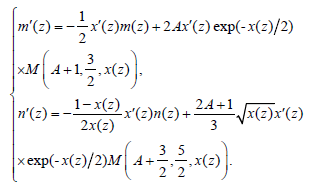

The derivatives of m(z) and n(z) can be expressed as

(35)

Special Case: when a=0, and b ≠ 0 , Eq.(28) becomes

(36)

and two linearly independent solutions are given by the Airy functions

(37)

where Therefore,

(38)

The Airy functions and their derivatives can be evaluated in Matlab as.

(39)

When a = b = 0 , Eq.(28) becomes

(40)

which has two linearly indecent solutions

References

1. Rodriguez-Berral R, Mesa F and Medina F. Appropriate formulation of the characteristic equation for open nonreciprocal layered waveguides with different upper and lower half-spaces. IEEE Trans. Microw Theory Tech 53 (2005):1613-1623.
2. Derudder H, Olyslager F, De Zutter D and Van den Berghe S. Efficient mode-matching analysis of discontinuities in finite planar substrates using perfectly matched layers. IEEE Trans Antennas Propag 49 (2001):185-195.
3. Marz R. Integrated optics: Design and modeling, Artech House Press, Norwood, MA, USA. (1995).
4. Silva A, Monticone F, Castaldi G and Galdi V, et al. Performing mathematical operations with metamaterials, Science 343 (2014):160-163.
5. Marin MA, Barkeshli S and Pathak PH. On the location of proper and improper surface wave poles for the grounded dielectric slab (microstrip antennas), IEEE Trans. Antennas Propag. 38 (1990) : 570-573.
6. 6.Hsu CIG, Harrington RF, Mautz JR and Sarkar TK. On the location of leaky wave poles for a grounded dielectric slab, IEEE Trans. Microw. Theory Tech 39 (1991): 346-349.
7. 7.Smith RE, Houde-Walter SN and Forbes GW. Mode determination for planar waveguide using the four-sheeted dispersion relation, IEEE J Quantum Electron 28(1992): 1520-1526.
8. Hejase HAN. On the use of Davidenko’s method in complex root search, IEEE Trans Microw Theory Tech 41(1993): 141-143.
9. Smith RE, Forbes GW and Houde-Walter SN. Unfolding the multivalued planar waveguide dispersion relation, IEEE J Quantum Electron 29(1993): 1031-1034.
10. Smith RE and Houde-Walter SN. The migration of bound and leaky solutions to the waveguide dispersion relation, J Light Technol 11 (1993): 1760-1768 .
11. 11.Mesa F and Horno M. Computation of proper and improper modes in multilayered bianisotropic waveguides," IEEE Trans. Microw. Theory Tech. 43 (1995): 233-235.
