Brugada Syndrome-An Always Surprising Disease: A Case Report

Balla C^1*, Zaraket F¹, Brieda A¹, Vitali F¹, Bertini M¹, Tenti E², Manfrini M², Armaroli A³, Trabanelli C³, Rimessi P³, Ferlini A³ and Gualandi F^3
*Correspondence: Balla C, Department of Cardiology, University of Ferrara, S. Anna Hospital, Ferrara, Via Aldo Moro 8, 44124 Cona, Italy, Tel: +39 532 236269, Fax: +39 532 236593, Email:

Keywords

Channelopathies; Sudden cardiac death; Brugada syndrome; Syncope; Epicardial ablation

Introduction

The Brugada syndrome (BrS) is an arrhythmogenic disease associated with an increased risk of ventricular fibrillation and sudden cardiac death (SCD). Since BrS has been described for the first time, great progresses have been overcome but risk stratification and management of patients, even more asymptomatic ones, remains challenging. We report a 60-years-old man in this case report.

Case Report

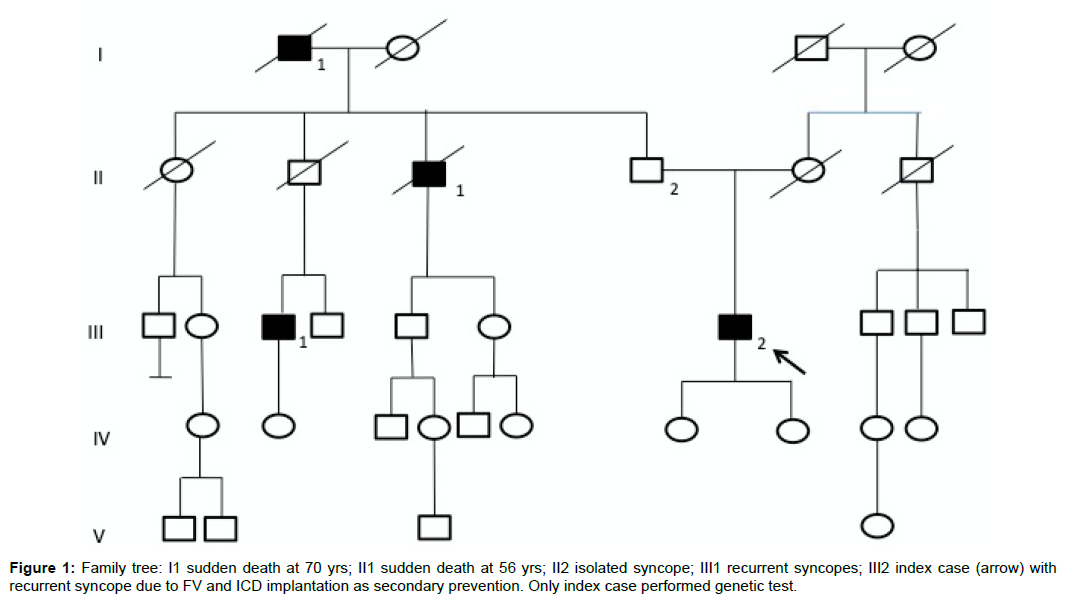

We report the case of a 60-years-old man with no previous comorbidities, except gastroesophageal reflux disease and mixed anxiety-depressive syndrome. Family history was positive for SCD, as a paternal uncle died suddenly at age 56. A paternal 1st degree cousin experienced recurrent syncope (Figure 1).

The patient suddenly lost consciousness and collapsed during a work meeting. His colleagues witnessed that his eyes rolled back, and he had seizures. External cardiac massage was provided by his colleagues, waiting for the ambulance, but any witness was able to determine presence/absence of pulse. At ambulance arrival, sinus rhythm 75 bpm was present with blood pressure 125/80 mmHg and Glasgow Coma Scale score 3, so orotracheal intubation was performed and the patient admitted to the hospital.

At hospital admission physical examination, chest radiography, complete blood cell count, metabolic profile, brain natriuretic peptide (BNP), coagulation and troponin were normal. A cerebral CT was performed and repeated after 24 hours, resulting negative for ischemic brain injury. Transthoracic echocardiography showed normal heart dimensions with preserved left ventricular ejection fraction. A patent foramen ovale was suspected and subsequently revealed by contrast enhanced transcranial Doppler and transesophageal echocardiography. Cardiac magnetic resonance showed no abnormality. Coronary angiography showed no lesions in the coronary arteries. Continuous ECG monitoring during hospital stay and a 24 hours Holter-ECG were negative for relevant arrhythmias.

Due to the initial presentation with loss of consciousness, in the absence of a certain cause, we decided to perform an electrophysiological study (EPS), which showed normal AH and HV interval, normal Wenckebach point, normal corrected sinus node recovery time. Programmed ventricular stimulation in two different sites or the right ventricle with triple extrastimuli, also during isoproterenol infusion, revealed no inducibility of arrhythmias.

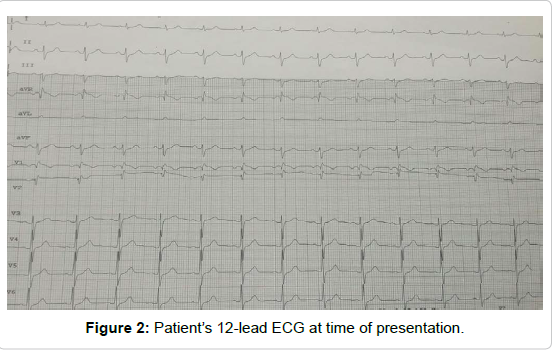

The initial electrocardiogram was suspect but not certainly diagnostic for a Brugada pattern (Figure 2). Brugada ECG pattern is dynamic and can be spontaneous or concealed, but it can be unmasked under certain circumstances as a wide range of medications, alcohol or cocaine toxicity, autonomic nervous system changes, especially increased vagal tone, a febrile state and potassium or calcium imbalances [1].

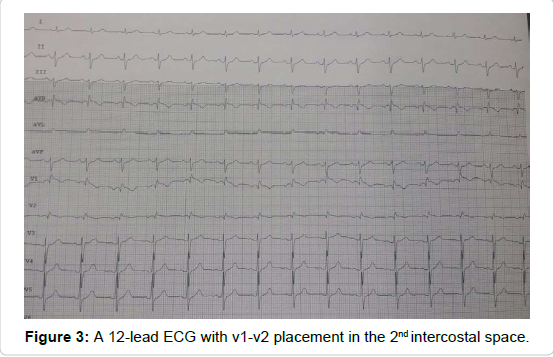

Placement of ECG precordial leads in 2^nd and 3^rd intercostal space increases the sensitivity in some BrS patients; therefore [2,3]. We performed an ECG by shifting right precordial leads V1-V2 in the II and III intercostal space: Although we could not identify a diagnostic Brugada type 1 ECG pattern, we noticed a slow descending arm of r’ wave and an undefined transition between depolarization and repolarization (Figure 3).

Furthermore, we performed a flecainide challenge test that resulted negative. During the hospitalization, some days after the first episode of loss of consciousness our patient experienced another similar episode, this time with ECG documentation of torsades de pointes followed by ventricular fibrillation, which was promptly treated with DC-shock, followed by the restoration of sinus rhythm and return of spontaneous circulation.

The patient received an ICD in secondary prevention and was then discharged home (Figure 4). Following genetic counselling and specific informed consent for molecular genetic testing, 51 genes associated with primary arrhythmic disorders were analyzed in the patient using PED MASTR Plus assay (Multiplicom - www.agilent.com). With this tool, 952 indexed amplicons (300-400bp) of the coding regions of the selected genes were produced for next generation sequencing (NGS) by ILLUMINA-Miseq (www.illumina.com); data were filtered and analyzed with the support of Sophia Genetics DDMRR (https:// dropgen.sophiagenetics.com). MAF filter was 1%. KCNQ1 exon 9 and SCN2B exon 4, not included in the PED assay, were analyzed by Sanger sequencing (ABI PRISM ^® 3130). Regions with high rumor or depth of coverage less than 20X were specifically covered by Sanger sequencing as well. Multiple ligation probe amplification (MLPA) was conducted for SCN5A and for the KCNQ1, KCNH2, KCNE1, KCNE2 genes using SALSA MLPA probe mix P108-B2 and SALSA MLPA P114 Long-QT probe mix respectively, according to manufacturer instructions (MRC Holland, http://www.mlpa.com).

The NGS analysis of 51 genes associated with primary arrhythmic disorders in the index case identified a total of 273 variants. Following quality and population frequency filters applications, no pathogenic variants were identified in Brugada syndrome related genes. MLPA analysis was negative for dosage imbalances in the analyzed genes, excluding gene rearrangements as a possible substrate of the arrhythmic phenotype reported.

Despite of the negative result of genetic tests, the pattern of disease segregation in the pedigree could be compatible with an autosomal dominant mode of inheritance with variable penetrance and expressivity (see family tree). The performed NGS analysis cover 18 genes associated with Brugada syndrome (SCN5A, GPD1L, SCN1B, SCN2B, SCN3B, RANGRF, SLMAP, PKP2, CACNA1C, CACNB2, CACNA2D1, TRPM4, KCNE3, KCNH2, KCNJ8, KCNE5, KCND3, HCN4), with an expected diagnostic sensitivity not exceeding 30%.

In the next month our patient experienced 5 FV episodes recorded and efficiently treated by the ICD (Table 1). Multiple ICD shocks, although appropriate, could be not only dangerous, having proarrhythmic effects or causing myocardial injury but also psychologically devastating. In this case, medications such as quinidine, restoring normal doming of the action potential, could be an effective option in order to reduce ventricular arrhythmias, but the adverse effects often preclude its use especially for younger patients, who may need these medications for long term [4]. Since our patient didn’t tolerate quinidine treatment, we opted for epicardial ablation. Thus, we performed cardiac mapping to accurately define areas of low voltage and delayed fragmented electrograms, followed by ablation with normalization of Brugada pattern (Figures 5 and 6). After 17 months of follow-up, there were no either arrhythmic events or ICD therapy.

Discussion

For many people with BrS, death could be the first clinical manifestation, that means that they would experience their first and potentially lethal arrhythmic event without being protected by ICD. Therefore, identification of patients at high risk of SCD who need ICD is very important but still unresolved and new parameters to be used as a risk-stratifier are strongly necessary.

Our case report describes how clinical diagnosis and therapeutic management can be difficult in Brugada syndrome.

The first clinical presentation of our patient was a “syncopal seizure”, probably due to cerebral hypoperfusion during ventricular tachyarrhythmias that could trigger convulsions. Therefore, it is important to consider both epilepsy and arrhythmia during clinical evaluation of seizures. Fauchier et al., described an incidental diagnosis of BrS in a patient with a long-standing history of epilepsy [5-8].

At the initial presentation, our patient could be considered at low risk patient (no clear spontaneous coved pattern, negative drug test, negative EPS, no previous history of syncope) except for the familial history of SCD. However, the patient had another syncope with documented ventricular arrhythmia during the hospital stay and a trans venous ICD was implanted. Moreover, during follow up he had 6 episodes of ventricular fibrillation effectively treated by ICD.

Although we performed an extended genetic analysis covering 18 brugada syndrome genes and 51 total genes associated with inherited cardiac arrhythmias, in order to better identify complex genotypes and possible overlaps syndromes, we could not identify any mutation in this patient. This is not unexpected considering that known genes account for around 25-30% of Brugada syndrome patients. Furthermore, complex models of inheritance are emerging with digenic-polygenic contribution needed for a fully manifest phenotype (Gualandi et al., mutation load). Whole exome/genome sequencing should be an approach to find new gene mutation associated to Brugada syndrome in this family for the following study.

Conclusion

Our case suggests as clinical presentation of Brugada syndrome can vary greatly and diagnosis and management may be challenging. Therefore, in our opinion, research should focus on the understanding of the complex inheritance and incomplete penetrance as well as on how the interaction between different genes does impact on the phenotype, in order to allow a more reliable pre-symptomatic detection and to optimize risk stratification towards a personalized management of Brugada syndrome.

References

1. Antzelevitch C, Patocskai B (2016) Brugada syndrome: Clinical, genetic, molecular, cellular and ionic aspects. Curr Probl Cardiol 41: 7-57.
2. Arbelo E, Brugada J (2014) Risk stratification and treatment of Brugada syndrome. Curr Cardiol Rep 16: 508.
3. Holst AG, Tangø M, Batchvarov V, Govindan M, Haunsø S, et al. (2012) Specificity of elevated intercostal space ECG recording for the type 1 Brugada ECG pattern. Ann Noninvasive Electrocardiol 17: 108-112.
4. Priori SG, Wilde AA, Horie M, Cho Y, Behr ER, et al. (2013) HRS/EHRA/ APHRS expert consensus statement on the diagnosis and management of patients with inherited primary arrhythmia syndromes: Document endorsed by HRS, EHRA, and APHRS in May 2013 and by ACCF, AHA, PACES, and AEPC in June 2013. Heart Rhythm 10: 1932-1963.
5. Huang CC, Chen TW, Lin FC, Huang MH (2005) Status epilepticus as an initial presentation of Brugada syndrome: A case report. Kaohsiung J Med Sci 21: 387-391.
6. Anderson HJ, Bos JM, Meyer FB, Ackermana MJ (2012) Concealed long QT syndrome and intractable partial epilepsy: A case report. Mayo Clin Proc 87: 1128-1131.
7. Schwartz PJ, Zaza A, Locati E (1991) Stress and sudden death: The case of the long QT syndrome. Circulation 83: 1171-1180.
8. Fauchier L, Babuty D, Cosnay P (2000) Epilepsy, Brugada syndrome and the risk of sudden unexpected death. J Neurol 247: 643-644.
