Cell Membrane Structure and Its Properties

Abdul Razzaq^*
*Correspondence: Dr. Abdul Razzaq, Government College University Lahore, Pakistan, Email:

Introduction

The outcome of cell disturbance is cell death, The reverse isn't in every case genuine, and that is the reason certain medications for wrecking microorganisms (utilizing solvents, lysozyme, slow freezing) may likewise work for cell interruption, while others (warm inactivation, oxidation, epoxidation) may not work. Bacterial cell walls are solid which implies that a lot higher power must be applied to disturb cells. The regular interspacing for peptidoglycan strands in bacteria is around 1.6e2 nm, which gives an expected normal avoidance limit around 25 kDa; as far as possible for the yeast Saccharomyces cerevisiae is a lot of lower, evaluated at around 0.7 kDa . Cell wall thickness shifts significantly with the sort of life form. The cell disturbance strategies are typically dispersed in three classes: compound, physical, and mechanical. Synthetic strategies are those that rely upon compound changes, e.g., enzymatically hydrolyzing cell walls. Physical techniques depend on changes in the cell wall or film structure without causing compound adjustment and without utilization of vitality, e.g., destabilization of cell layers by disintegration of solvents.

Chemical Methods

In these methods, cell walls or membranes are modified to enhance product release or cell disruption.

Alkaline Treatment

Saponification is the simplest method of cell lysis where alkaline treatment is used to solubilize cell membrane. In it a base is dissolved in alcohol or water. The amount of alkali depends on biomass composition. Solvent mostly preferred of low polarity is added to extract small molecules [1]. This is aggressive as pH reached 10 or 13 but it is good for removal or extraction of carotenoids and steroids. It converts fatty acids to salt and is a good method for lipid extraction [2].

Alkaline lysis

Another epic strategy for substance cell lysis depends on the age of OH− particles at electrodes to make noteworthy concentrations to drive cell lysis. Cells (HeLa, CHO, erythrocytes) could be lysed only in nearness to the cathode by use of a little electric field 43 V cm−1 between palladium electrodes. By contrasting cell lysis results and reproductions, they verified that lysis happened in locales where electrolysis of the cradle would create OH− concentrations above 20 mM, which coordinated well with the point of confinement of OH− required to lyse cells tried by expansion of NaOH [3].

Enzyme Treatment

This method is used on the principle of weakening cell wall or opening it which increases permeability. It can also be used as a starting point for other methods such as osmotic shock or protoplast preparation. Due to its being a common method it is used in laboratory scale. On industrial scale cost is firstly considered.

Physical Methods

These are gentle permeation methods that don’t involve any force application or change in chemical composition.

Decompression

This is the used of pressurized gas dissolved in a liquid medium which has suspension of cells. Cells are disrupted through the gas pressure. This creates microbubbles which cause pressure in intercellular spaces hence bursting the cells. Vacuum is not enough as cell wall is tough and strong. Manometer, a threaded pressure vessel, is used for this purpose. Sample is injected then a gas usually nitrogen is added with pressure of 15 atm. This is gentle method but difficult to scale up due to resistance of high end vessel [4].

Osmotic Shock

Turgor pressure of the cell is used to cause lysis. It is mostly preferred for cells already treated with enzyme for cell wall digestion. Cell are placed in hypertonic solution and then moved to hypotonic solution. Osmotic shock burst the cell. This method is easily scalable and can be used in industry [5].

Thermolysis

As the name suggests this involves heating of cell suspensions to induce cell membrane collapse. Reason could be increase in lipid fluidity across the membrane due to increased permeability which causes small molecules liberation. High temperature causes intracellular product release and also disrupts transport channels and transmembrane potentials which terminate cells active transport.

Freezee Thaw

In this method slow freezing is done so that large crystals of ice are formed inside the cell which puts pressure on cell wall hence rupturing it. Damaged cells then release the proteins and components. It is although scalable but with the heat exchange there is formation of solid phase which complicates the process.

Detergents

This is another strategy in boundless use in molecular biology: a detergent, for example, sodium dodecyl sulfate or Triton X is mixed with the cell suspension, and it breaks up layer lipids, framing micelles and adequately disrupting the cell. Indeed, even with a flawless wall, the cell will currently have the option to free its intracellular substance up to the cutoff size of the cell wall. It is effectively scalable and can be upgraded by different strategies, for example, sonication or microbead processing [6].

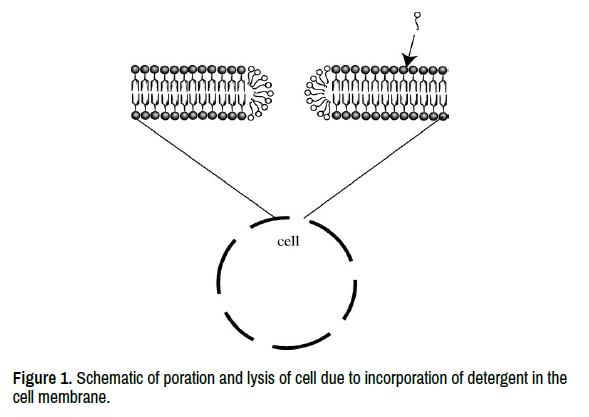

Detergent-based lysis emerges from incorporation of detergent into the cell layer, solubilizing lipids and proteins in the film, making pores inside the layer and in the end full cell lysis. Detergent lysis has been very much produced for bulk biochemical tests and makes an interpretation of well into the single-cell level. A wide range of detergents are utilized for this reason, including ionic, non-ionic and zwitter ionic moieties. The determination of surfactant is critical since it can influence the speed of cell lysis, just as the protein extraction effectiveness. Solid ionic detergents, for example, sodium dodecyl sulfate (SDS) can give cell lysis of the request for seconds, having a tendency to denature proteins from the cell. This is favorable for resulting division of neutral proteins by micellar electrokinetic capillary electrophoresis giving negative charge to the protein corresponding to its molecular weight. In any case, it is less wanted if the extracted protein is to be utilized in protein authoritative or catalyst movement examines. Milder non-ionic detergents, for example, Triton X-100 reason more slow cell lysis, yet have a much lower inclination to denature proteins and separate protein complexes and along these lines are ideal for applications including protein structure or movement. Zwitter ionic detergents, for example, 3-[(3-cholamidopropyl) dimethylammonio]-1-propanesulphonate can be utilized for cell lysis also, and bring about no net change in the charge of solubilized protein; notwithstanding, care must be taken as they can bring about the suppression or reversal of electroosmotic flow in downstream electrophoretic detachment systems. The biggest obstruction to applying detergent lysis for single-cell analysis is the capacity to rapidly convey and mix the surfactant with the chose cell. By capillary electrophoresis, basic consecutive stacking of the cell followed by detergent-containing buffer speaks to the least difficult arrangement. In spite of the fact that this requires time for dispersion of the detergent to the cell, this time can be limited by pressure-actuated infusion to utilize the state of the laminar flow profile to encompass the cell along the side by lysis buffer and diminish the dissemination separation. Utilizing this technique, cell lysis can result after a 1 min mixing time with 0.1% Triton X-100 containing buffer [7]. Another technique for choosing a single cell and exposing it to detergent lysis is to utilize the capillary tip as a micropipette to get a single cell utilizing pressure-based infusion and to then store the cell in a micro-reactor vessel loaded up with lysis buffer. Utilizing this strategy lysed single cells and were consecutively test aliquots of the response mixture to follow the advancement of compound examines Figure 1 [8].

For microfluidic chips, distinctive mixing strategies must be utilized. A Y-formed microfluidic chip is mixed with a cell stream containing physiological buffer with a lysis buffer stream containing detergent and the substrate of the protein β-galactosidase. Since they were at last keen on compound action inside the cell, they picked the more slow lysing 0.1% Triton X-100 (30 s) over the quicker lysing 0.5% SDS (under 2 s), so as to hold protein movement. Notwithstanding, vulnerability in the aftereffects of their compound measure because of the moderate variable lysis times was included, which made it increasingly hard to decide the level and timing of mixing of the catalyst substrate with the intracellular components. (Ocvirk et al., 2004). A substitute arrangement is by catching the cell utilizing a couple of valves, and afterward filling the chamber where the cell was immobilized with lysis buffer containing fluorescent antibodies for naming of proteins. Utilizing this technique, they had the option to lyse a single cell and name intracellular proteins with a particular neutralizer utilizing 10 min brooding. This lysate was then exposed to electrophoretic partition and the neutralizer bound proteins were evaluated [9].

Adherent cells can be broke down sequentially utilizing detergent lysis followed by capillary electrophoresis. In this strategy, the cells are developed in a channel with steady flow of physiological buffer, and they are then inspected individually by bringing down the capillary over the most downstream cell. Electrophoretic buffer containing SDS is then presented utilizing sheath flow around the capillary channel, which encompasses the cell and is diverted downstream to the waste repository. Electrophoresis is started all the while with the goal that cell substance as they are freed are infused into the capillary. This methodology at that point can be completed on the next most downstream cell that remaining parts drenched in physiological buffer, for sequential testing, permitting an analysis pace of one cell each 2 min [10].

Solvents

There are two ways of thinking of solvent: moderate, membrane-bound amounts of solvents and large amounts that will dissolve cell constituents. The former consists of using moderate amounts of nonpolar solvents that will distribute in the broth and dissolve into the cell membrane, thereby destabilizing it and ultimately enhancing cell permeation. Adequate solvents are aromatic, planar compounds such as toluene and benzene [11]. The second process consists in actually dissolving components of dry biomass, and can be used with suitable solvents: acetone for xanthophylls, n-hexane for lipids, etc. These methods are scalable, although the second will have to be developed observing compatible filtration systems [12].

Disruption of Cytoplasmic Membranes

In this method for enhancing membrane permeability, a pore-forming molecule such as nisin or natamycin is used. These are also antibiotic drugs or additives, and their use may be controlled in the process. However, their leaking capacity is enormous, and progress in this area may lead to very effective agents.

Mechanical lysis

Direct mechanical lysis using sharp surfaces with nanoscale barbs termed ‘nanoknives’ has also been recently demonstrated as a method to lyse single cells. In this method, the cells were driven through a grating composed of 3 μm wide serrated features, created using multiple isotropic deep reactive ion etch stages to form sharp ridges spaced vertically 0.34 μm apart, separated by 3 μm wide gaps that have been patterned onto a microfluidic chip. The cells run through an array of these nanoknives at a sufficient velocity are generally efficiently lysed. Some cells, however, stick to the upstream surface of the array and slowly elongate between the nanoknives eventually separated into several vesicles. Although this method led to 99% cell lysis according to a trypan blue quenching assay, measurements of free protein post lysis indicated that only 6% of total protein was freely released. The disparity between these numbers indicates that the majority of protein was recaptured within vesicles after lysis or remained within cells that were merely porated as opposed to fully disrupted. These are the most effective methods used today, but they are energy-intensive and potentially stressful for the bio-product [13].

Pretreatment

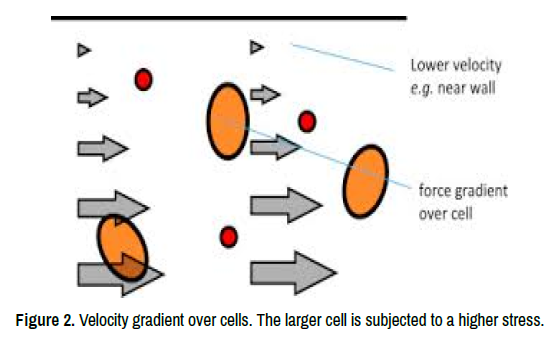

Generally, the mechanical techniques are progressively effective for bigger cells and considerably less effective for bacteria. This is on the grounds that when worries in the bulk fluid are produced (e.g., through agitation), a bigger cell is dependent upon a bigger gradient of power, contrasted with a little cell. A pretreatment stepdusually a compound or physical methoddmay be important to improve the adequacy of cell disruption. Notwithstanding the treatments talked about in the substance and physical disruption strategies, cells can likewise be (dried up) or solidified. In drying, cell walls collapse, and the misshapening of the cell might be sufficient to cause fissures. Nonetheless, the most significant impact is that the subsequent biomass ismuchmore brittle, which upgrades the adequacy of dry grinding utilizing factories. This pretreatment is likewise vital for direct solubilization (solideliquid extraction) of chose biomass parts. Solidified biomasses additionally become brittle, and if the solidified materialdcells in squares of suspended mediumdis exposed to grinding, the procedure is significantly more effective than with wet cells, which are increasingly flexible. Grinder parts ordinarily bolster frosty temperatures well, yet the harder materials to be processed put more wear on the gear.

Disruption Degree and Thermal Degradation

Mechanical cell disruption strategies every now and again create heat, and in this way refrigerated feeds and hardware might be important to maintain a strategic distance from warm debasement of particles. Enormous proteins may likewise endure direct hydrodynamic pressure. In view of the weight on biomolecules, cell disruption might be designed according to two kinds of conditions: one for disruption and another for product degradation. Disruption follows an asymptotic curve of the form Figure 2.

R ¼ 1 ekN

where R is the degree of disruption (from 0% to 100%), k and a are constants, N is either the number of passes or the average residence time, and P is either pressure or agitation speed. The exponent ranges from 0.9 to 2.9 for bacteria and yeast . Thermal degradation of proteins also has an exponential form, in this case a decay of activity A that will depend on activation energy, in an Arrhenius-type equation :

A ¼ kA0eE RT t

where k is a proportionality constant, A0 is the total activity of the biomolecule, E is the activation energy, R is the universal constant of gases, T is the absolute temperature, and t is time. For large molecules sensitive to shear stress, an equation of the same form may be used with the exponent proportional to pressure or agitation. Combining the effects of disruption and denaturation, it is clear that there is a trade-off between disruption efficiency and biomolecule activity. Hydrodynamic shear also can cause denaturation of proteins, but only for very large molecules , and it may be a concern for enzyme production.

Microbead Milling

This procedure comprises in agitating a suspension of the cells to be ruptured in the presence of microbeads (whose size ranges ordinarily from 0.1 to 2 mm). The biggest regular walled microorganisms in bioprocessing, yeasts, are littler than the low-finish of normal dry milling gear; wet milling supported by a grinding medium is utilized for the disruption of littler particles. The shearing pressure is brought about by the quick development of the beads through the fluid and to a little extent through collisions. The most widely recognized structure for this hardware is a flat flow-through chamber, wherein the turn of solidified steel or fired circles moves microbeads. A screen in the yield keeps beads from leaving the chamber. The heap of microbeads in this sort of cell disruption strategy is high, around half of the volume of the load.

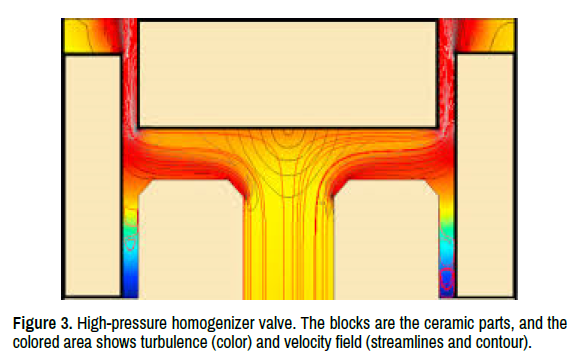

High-Pressure Homogenizers

This device disrupts cells by making a steep velocity gradient, by pumping the cell suspension through a restricted section (the homogenizer valve). There is no accord on the impacts behind cell disruption in high-pressure homogenizers (HPHs) deactivation and impingement are additionally used to explain the prepared however there is no uncertainty that velocity is vital. To make high speeds, it is important to apply huge powers to the fluid, thus the name "highpressure" homogenizer. The fast decompression on the valve may make a little commitment to the disruption; cells have low compressibility and the variation in volume is around 9% when pressure drops from 1000 to 1 atm. HPHs are likewise utilized for emulsification and milk adjustment. Enormous commercial homogenizers are equipped for processing a great many liters for every hour of cells, however the hardware is increasingly effective for lower strong concentrations (around 10%). A few passes might be required for legitimate disruption. Due to the high shear inside a HPH valve, abrasion is an issue for the gear, which is worked with inward parts in solidified steel and uses significantly harder artistic parts in the valve seat and the effect ring.

French Press

This is a small-scale apparatus that deals with a similar standard as the HPH: a high pressure is utilized to make a steep velocity gradient in a narrow passage (the valve seat). Be that as it may, the aperture of the valve isn't effectively controlled, and the outcomes got with a French press are only characteristic of conditions to be utilized in bigger equipment Figure 3

Impingement

In this process, the stress is generated by creating velocity gradients when a high-velocity jet of liquid is directed to a wall, or into another liquid jet. The process is similar to that in an HPH.

Sonication

This process is well known in the research center and comprises of applying mechanical, high-frequency waves through a suspension of cells. Ultrasound makes a quick pressure change in the fluids, which induces the formation of oscillating holes (truly void spaces), which develop and collapse violently. This collapse (the cavitation) makes a shock wave sufficiently able to damage cell walls and makes locally high pressures (up to 2000 atm) and temperatures (2000 K) in the fluid. Since part of the vitality applied utilizing the gear transforms into heat, sonication is every now and again done in flasks inside ice baths. This is, obviously, difficult to scale up in view of warmth age, yet all things being equal, a couple of manufacturers of sonication gear have created process-scale equipment.

Colloidal Mills

Colloidal mills are used for milling solid materials into small particles. The principle of the colloidal mill is similar to that of coffee grinders: two conic parts, a rotor at 3000e20,000 rpm and a stator, with a small clearance of 1 to 0.05 mm. Colloidal mills are in widespread use for wet milling of fragile solids; when it works for a specific microorganism in the laboratory, scaling up is possible: nominal flow rates of 60,000 L/h are possible in equipment of 160 kW.

Dry Grinding

Although grinding has a practical limit of particle size, the grinding of frozen or dried biomass may be enough to cause cell disruption. This is because the solid biomass is less elastic hence, more brittle than wet biomass, and the disruption is routinely done in small scale for frozen cells or tissues. For larger processes, grinding may be a way of enhancing digestibility, as in the case of Chlorella.

Autolysis

A few microorganisms are equipped for autolysis (self-processing). This process is routinely utilized for arrangement of yeast extracts and needs just pH and temperature adjustment, albeit a few substances may quicken the process. For S. cerevisiae, incubation at pH 4 and 53C causes the release of over half of the cell nitrogen as soluble compounds after 24 h; the release of phosphate and nucleic acids arrives at 80% with no cell wall degradation watched. For Kluyveromyces marxianus, incubation at 35 and 50C for 15 h was adequate for autolysis of 27 g/L suspensions, with the release of 75% of the cell contents. Longer occasions (30 h) caused the release of minimal extra biomass, yet more nucleotides. Bacterial autolysis is seen in a few animal varieties yet isn't basic in industrial processes. Bacillus subtilis undergoes coldshock autolysis with the release of autolysins, with 80e90% disruption after 1 h. Escherichia coli likewise undergoes autolysis, which might be induced by trichloroacetic acid or a cell wall combination inhibitor (e.g., cephaloridine), yet at the same time with numerous autolysins, in a fairly more slow process (around 18 h) [24]; with EDTA-induced autolysis, the process was extensively quicker, with most cells leaking after 30 min and 65% of the peptidoglycan degraded after 1 h. Both bacterial and yeast autolysis might be quickened by the utilization of selected detergents or solvents and ought to be done after the stationary phase of growth.

Optical lysis

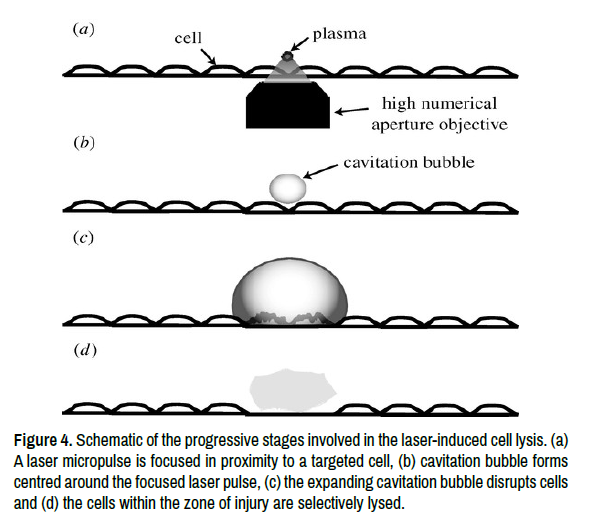

The application of laser pulses to rapidly lyse individual cells has come about relatively recently. Pulsed laser micro beam-induced cell lysis involves directing a nanosecond pulse from a 532 nm laser through a high numerical aperture objective lens and thus focused down to a small spot where localized plasma formation occurs. This results in the generation of a shock wave, followed by generation of a cavitation bubble that expands and contracts within a matter of microseconds. The cells located near the center of the targeted area have been shown to lyse either during the expansion of the cavitation bubble (less than 1 μs after pulse) when the focal point of the laser pulse is directed near the cells (approx. 10 μm above), or during bubble collapse, when a liquid jet is directed downwards onto the slide (approx. 30 μs after pulse) when it is focused significantly higher (approx. 400 μm) [14]. At the point when applied to sheets of adherent cells, the cells situated close to the focal point of the pulse were totally disrupted, the cells further away stayed adherent yet were seen as necrotic, and the staying adherent cells around the lysis locale stay viable yet become porated as evidenced by the uptake of 3 kDa FITC-dextran. The good ways from the laser focal point at which these three outcomes happened were identified with shear stress levels, demonstrating bigger lysis radii with expanding pulse energies (Hellman et al., 2008). Owing from the enormous irradiances used to accomplish cell lysis and the resulting creation of plasma in this process, guarantee that the cell contents are not being fundamentally altered by these processes. While trying to address this issue, the sampling efficiency of this technique has been examined utilizing green fluorescent protein (GFP)- transfected cells [15]. In this examination, the laser pulse was directed beneath the cell close to the buffer–glass slide interface , resulting in the disappearance of the cell from one edge of video (inspected at 30 Hz) to the next. With optimization of the parameters engaged with laser lysis, the sampling efficiency was seen as of the request for 60% under the best conditions. When contrasted and a free sampling instrument including mechanical shearing of the cell utilizing a capillary tip, notwithstanding utilization of a voltage gradient, the outcomes were very comparable. This recommends GFP sampling misfortunes directly because of the laser pulse are minimal. Besides, this is corroborated by the way that direction of the laser pulse 10 μm laterally from the cell brought about poorer sampling efficiencies than when it was directed under the focal point of the cell. The lack of photodegrative impacts observed inside the cell, in any case, isn't totally astonishing since the laser pulse is highly focused, and hence these impacts might be highly limited, best case scenario to the lowest margin of the cell, if not totally contained inside the glass surface. Owing to the speed of this lysis technique, it is perfect for the investigation of highly dynamic processes in cells. All things considered this technique has been applied to research the action of a few significant cell flagging kinases utilizing enzyme-specific peptide reporters [16]. Furthermore, by modulating the laser pulse energy they could lyse segments of a single neuronal process without damaging the neuron itself, or utilizing higher pulse energies they had the option to test small bunches of cells. This opens the plausibility with precise tuning of laser parameters to selectively lyse single cells among gatherings of cells, for example, spherical aggregates or other three-dimensional tissue structures Figure 4.

Laser lysis is highly reasonable for integration into microfluidic chip platforms since it requires just optical access to the zone of cell lysis. All things considered it requires no extra channels or electrodes and therefore doesn't expand the complexity of the chip plan. Laser lysis on non-adherent BAF-3 cells in 30 μm×50 μm channels in a polydimethylsiloxane (PDMS) chip utilizing high-speed imaging indicated that in connection to laser-induced cavitation in a dish, significantly less energy from the laser pulse was moved into cavitation bubble energy because of deformation of the PDMS walls. In any case, for single-cell contemplates, this is presumably of almost no result, since laser pulse power can be effectively adjusted if necessary, and the pulse energy required for plasma formation is by all accounts more than adequate for lysis of a single cell. A bigger issue emerges in microfluidic chips from the predominant utilization of non-adherent cells in this arrangement. Owing to the lack of connection of the BAF-3 cells in the microfluidic channel, the cells that were not precisely focused concerning the laser pulse were observed to be uprooted as opposed to destroyed. Another complication that emerged because of the chip design was the determination of bubbles milliseconds to seconds after the laser pulse. Since bubbles can cause disruptions in fluid and electrical currents, this is undesirable for some post-lysis methodology. Nonetheless, the creators of the investigation set that these steady bubbles were because of broken up gas in either the PDMS, which could be cured by covering the PDMS with a gas-impermeable covering, or in their buffer, which could be degassed. In spite of these issues, they had the option to appear, utilizing fluorescent pictures of cells stacked with a fluorescent color, that after expansion of the cell contents during bubble formation, the cell contents were re concentrated, leaving bigger, slow diffusing species for all intents and purposes undiluted. This is highly desirable for detection of low copy species, since keeping up high concentrations is fundamental for sensitive detection. Frequency-tripled Nd-YAG lasers (355 nM) have additionally been utilized to lyse single cells on microfluidic chips. For this situation, the cells were encapsulated inside a picolitre-sized aqueous droplet. Laser lysis was performed inside the confined droplet to such an extent that the cell contents were mixed with an enzyme substrate so enzyme kinetics could be followed. For this situation, laser lysis took into consideration a straightforward lysis mechanism since the lysis laser was coupled to the optical tweezer laser, just as the fluorescence detection laser. This enabled the cell to be selected, held set up, lysed and the contents of the lysate analyzed by fluorescence, with no further manipulations [17].

Acoustic lysis

Sonication includes the utilization of ultrasonic waves to create localized territories of high pressure resulting in cavitation that can shear apart cells. Sonication has a few restrictions that keep it from being broadly utilized for single-cell lysis including the necessity of more than 50 s for the lysis of cells, for example, lymphocytes, which can bring about huge warming and in this manner denaturing of proteins, and excessive dispersion of the cell contents that can prompt challenges in downstream detection However, when utilized after first treating the cell with a weak detergent, for example, digitonin, sonication can lyse cells inside 3 s, allowing effective division of cell contents [18].

Electrical lysis

Electric fields producing transmembrane possibilities of the request for 0.2– 1.5 V reason burst of the lipid bilayer shaping pores, and with adequate sizes of electric field qualities and time of exposure lead to cell lysis. The electric field quality required to arrive at the limit to advance cell lysis will accordingly rely upon cell size and shape just as membrane creation (fluidity). The impact of size can be appeared through near lysis of plant protoplasts (20–40 μm) versus microbes (1–2 μm), while a DC field of 7–10 kV cm−1 is required to lyse the smaller microbial cells, the bigger plant protoplasts are lysed utilizing just 1.5– 1.75 kV cm−1 electric fields. For use in capillary electrophoresis, gold-tipped vessels and metal-coated glass slides as electrodes to make a voltage field vertically through adherent rodent basophilic leukemia (RBL) cells. In the wake of examining the voltage pulse length, size and interelectrode separation, they found that they could accomplish total cell lysis in under 33 ms utilizing a 1 ms pulse length, at 40 V over a 20 μm hole, yielding an electric field of 20 kV cm−1. An electric field of 20 kV cm−1 speaks to a 2 V drop over the length of a 10 μm cell, showing that at the margins of the cell nearest to the electrodes, there will be a 1 V drop over the cell membrane (expecting far more prominent electrical obstruction over the membrane than through the cell cytoplasm, in this manner making a steady potential in the cell inside) Figure 5 [19].

Persistent mode microfluidic chips present an all the more moving stage to give effective electrical lysis conditions. The high-voltage drops expected to get irreversible poration of the membrane are adequate to cause electrolysis of water, in this way causing bubble formation that could meddle with consequent example handling techniques. Besides, if the electrodes are not put inside closeness (10's of μm), joule warming could turn into a critical issue at the voltages required, particularly since scattering of warmth is less effective in numerous microfluidic chip designs contrasted and free arrangement or round small distance across vessels. To keep away from these issues, lower electric field qualities (300 V cm−1) were utilized which in blend with a narrowing of the partition channel, so as to realize cell lysis in myeloid leukemia cells of the request for 300 ms [20]. Despite the fact that this is plainly underneath the voltage drop limit recorded above for lysing single mammalian cells (approx. 10 μm diameter), they placed that mechanical shear in collaboration with the electric field would prompt cell lysis. Microscopic perception uncovered, in any case, that the cell membrane remained to a great extent intact, keeping organelles and most of nucleic acid inside the cell. They further examined the sampling efficiency of calcein from cells and found that 30% of the calcein fluorescence was drawn out of the cell towards the downstream detection point. Since the cell membrane was kept to a great extent intact, it was accepted that the calcein was either in organelles that were not tested and/or bound to proteins that were decidedly charged and in this way relocated away from the detection zone. An alternate technique is to utilize electrical lysis for sequential analysis of single cells on a microfluidic chip. They utilized a mix of AC and DC fields to keep from continued high-voltage periods. Thus, the cell was exposed to peak voltages of approximately 900 V cm−1 for cell lysis, while in the middle of pulses a voltage gradient of 450 V cm−1 was kept up for electrophoretic partition of the cell contents. Air conditioning cycling was streamlined to 75 Hz since higher frequencies (more than 100 Hz) prompted poor cell lysis, while lower frequencies prompted peak broadening. In spite of the fact that the electric field utilized in this examination was a lot of lower even at peak voltages, lysis was observed in under 33 ms. This is likely because of the simultaneous exposure of the cell to the hypotonic surfactant containing partition buffer that was mixed with the cell buffer as the cell moves toward the division channel. A few different examinations have utilized comparable techniques, utilizing a mix of electrical lysis with blends of hypotonic detergent containing high or low pH buffers to produce quick lysis at lower field qualities.

Conclusion

There are numerous choices accessible for single-cell lysis, of which the three principal strategies as of now are electrical, laser and detergent lysis. Nonetheless, contingent upon downstream applications, certain strategies are desirable over others. The utilization of shear powers to tear apart the cell is very alluring since it puts no limitations on buffer composition and consequently can be effectively utilized with physiological buffer to keep up the suitability of the cell up until lysis. This will additionally enable proteins to stay in their local structures, empowering their utilization in downstream applications, for example, enzyme examines. Laser lysis because of the speed of the lytic process is particularly encouraging for measures that require high fleeting goals. It is especially appropriate for analysis of adherent cells or settled suspension cells, since this lysis mechanism requires the cell to be at a specific focal tallness to be situated in the zone of lysis. In any case, utilizing cell catch methodologies or hydrodynamic centering techniques, it should be conceivable to precisely situate suspension cells for reproducible lysis. Electrical lysis is additionally able to do high-speed lysis of single cells, however, except for the situation where the cells are developed directly on an anode, sequential lysis of adherent cells represents a huge test because of buffer electrolysis. These issues are exacerbated by the distinction in extent of electric fields required for lysis versus electrophoretic divisions that regularly follow lysis, making ceaseless sequential infusions extremely troublesome. Suspension cells, in any case, are effectively controlled utilizing pressureinduced flow into channels where electrical lysis can happen. Like optical lysis mechanisms, electrical lysis forces not many limitations on the buffer to be utilized, in spite of the fact that buffers with higher ionic qualities will at last lead to more prominent age of joule heat, which could represent a few issues. Synthetic lysis at last relies upon the dissemination of the lysis compound to and all through the cell, and accordingly is a moderately moderate lysis technique. In spite of the fact that this dissemination can possibly be rendered quicker by warming, sonication, convective flow or utilization of electric fields, despite everything it stays hard to produce quick enough mixing to get low millisecond to sub-millisecond lysis times in a controllable way. Since concoction lysis depends on the properties of the buffer to lyse the cell, it would thus be able to show limitations for the determination of buffer composition. The nearness of detergents in the buffer may have positive consequences including the solubilization of membrane proteins and diminished collection of proteins. Be that as it may, it can likewise have undesired impacts, for example, denaturation of proteins and modification of protein detachment properties. Detergent lysis is, in any case, a highly efficient strategy for lysis and speaks to an excellent technique for confirmation of idea contemplates, as no expensive equipment, for example, high-voltage power supplies or pulsed lasers are required.
