Criteria for the Synchronization between Neural Networks used in Diagnostics of Functional States of Athletes Bodies

Tatyana Vladimirovna Popova^1*, Koryukalov Yury Igorevich¹ and Kourova Olga Germanovna^2
*Correspondence: Tatyana Vladimirovna Popova, Department of Biological Sciences, South Ural State University, Chelyabinsk, Russia, Tel: +79085771729, Email:

Keywords

Electroencephalography • Functional state • Neural network • Brain currents synchronization • Resource mobilization • Athletes

Introduction

Body functional state assessment is of utmost importance in academic environment, clinics, sports, military training and training other specialists, bioelectric brain activity parameters being the principal criterion for the assessment. As of now, sufficient amounts of findings have been obtained, proving that neuronal activity synchronization is among the principal mechanisms for neuronal synchronization, with the synchronization in question being primarily of rhythmic nature [1,2]. The phase structuring of EEG alphawave activity or sync period intermittence – desynchronization – as it is knows to researches, is a sign that respective neural ensembles build up and then become destroyed. According to present-day data on morphofunctional brain organization, large-scale distributed neural networks – ensembles of interacting macroscopic brain structures specific to certain activities – are the structures that control research activities and purposeful behaviors [3]. Those ensembles are dynamical formations, which means that they build up when preparing to an activity and become destroyed as the activity is finished. The modulation of the force of functional bounds between the future ensemble areas is the principal formative mechanism of the ensembles [4]. Neural bounds specific to an individual are formed as the personality evolves and the brain matures [5]. Research findings of neural network parameters synchronization in alpha-wave are essential to understanding resource mobilization mechanisms to achieve optimal functional state.

It is known that functional rhythm underlies life cycles, including adaptive processes, in all living beings. The very nature of rhythms is caused both internal mechanisms and environmental impact [6]. Biological currents and life processes caused by them are regulated by various oscillatory brain systems [7,8]. Here, the pivotal role is played by the pineal gland – hypothalamus system and the key role – by the thalamus [9]. In particular, the very nature of brain rhythms is linked to individual parameters of body self-regulatory mechanisms and plasticity levels of neurodynamical processes [10]. The dynamical organization of distributed neural networks that form in the process of activities is determined not only by goals and the nature of the very activities, but by more rigid species- related (phylogenic modulation) and age-related (ontogenetic modulation) parameters of links between various brain structures [11] – the morphofunctional basis under distributed neural networks.

Plasticity of neurodynamic processes is linked to interactions between cortical areas when in alpha-wave. While performing individual operations, extensive local aggregates of neural cells called neural ensembles form within natural neural networks [12]. Individual parameters of neurodynamic processes plasticity [13] manifest themselves as variations intrinsic to the very nature of rhythms and as synchronizations between bioelectric processes on EEGs from subject to subject. Those facts are backed by research findings of alpha- and beta-wave synchronizations between various cortical areas when functional body state changes [14] which are indicative of a significant role of alpha-waves in cortical synchronization processes [15] and neuroplasticity.

The resource mobilization ability is of great prognostic importance to assessing goal achievement. There exist separate studies of synchronizations occurring in the cortex as an individual does various activities [16,17]. However, the very nature of neural process rhythms and brain current synchronization in age individuals who vary in age and psychophysical state and are capable of instant resource mobilization and consequently, high performance, needs further study. High-profile athletes are an adequate model for the assessment of those processes. It was the aim of this research to identify individual parameters of synchronization criteria in athletes who play acyclic sports and when in various functional states.

Methodology

The Observation Group was made up of 15 subjects – high-profile male athletes (wrestlers, kickboxers); Group 2 was made up of 17 physically unfit subjects of the same age who practiced self-regulation (psychophysical relaxation sessions, PPRS); and the Control Group was made up of 19 subjects of the same age and sex who played no sport (Group 3). Explained at introductory sessions by an instructor, the PPRS [18] was in doing psychophysical concentration while achieving a state of relaxation exercises, to be practiced 10 to 15 min daily. We have examined a total of 51 subjects; their average age being 26 ± 4. The researches has been conducted on voluntary informed consent, subject to the Directive of the Declaration of Helsinki and the minutes approved by the Ethical Committee of the Russian Academy of Sciences.

Electrophysiological method

Synchronization processes were studied by electrophysiological method. Multichannel recording from 16 cup electrodes connected to ear electrodes and placed according to 10-20 system was done by a Neuron Spectra unit manufactured by Neurosoft, Russia. A number of functional tests were performed, namely, taking background EEG records, 30-minute-long Eyes Opening (EO) and Eyes Closing (EC) tests, cognitive test where a subject was to subtract 5 and 2 intermittently within 100 sec, as well as Psychophysical Relaxation Session (PPRS) that involved self-visualization against country landscapes. The EEG sampling rate was 250 Hz. Computer-assisted encephalography included spectral, periodometric, coherent and correlation analysis done by means of the software from the manufacturer company.

The EEG record was automatically being scanned for artifacts that were removed by regression procedure. Areas with amplitudes exceeding 180 μV within a window of 650 μsec were marked as a bad channel, while areas with amplitudes exceeding 140 μV were considered as motion artifacts and those exceeding 60 μV – as visual and muscle artifacts. The EEG data were selected from epochs that corresponded to their respective tests.

At least 2.5 sec-long 20 artifact-free epochs were used to process the EEG records, which provided additional protection against impact from eye and muscle artifacts on EEG spectral records, the frequency step being 0.25 Hz. The artifacts were removed by regression procedure. Spectral analysis was conducted at the EEG frequency ranges: range between 4 and Hz; α range between 8 and 13 Hz; low-frequency β range or β1 (13 to 20 Hz); and high-frequency β range or β2 (20 to 35 Hz) by using Neuron Spectra. NET software by Neurosoft, Ivanovo, Russia. Spectral power and activity index were found for each of the above frequency ranges.

A spectrogram (Fourier transformation, modulus squared) was found for each EEG epoch. The Fourier transformation was expansion of signals into harmonic series without any information losses. Each of the harmonics was comprised of the three parameters: the amplitude, the initial phase and the frequency. Spectral analysis found that the amplitudes and the phases of the harmonics depended on the frequency [19].

Statistical analysis

Statistical data processing was done by standard IBM SPSS Statistics 22 software suite. As we did statistical processing, the representative samples allowed for applying parametrical analysis to finding confidence intervals by using a 95% confidence probability and the t Student’s criterion at р ≤ 0.05. Non-parametric method for finding the Spearman’s rank correlation coefficient was also used.

Results

Spectral analysis of EEG alpha-wave activity found that EEG areas called analysis epochs could be identified, where synchronization on the same predominant alpha-wave rhythm could be observed in the subjects. The EEG analysis found regular synchronization periods in more than 50% of the deflections (8 to 10 out of 16) in all of the subjects. Thus, a certain synchronization pattern and its individual differences were discovered within the deflection groups of the cerebral hemispheres.

Thus, a repetitive synchronization that occurred within a limited locality and a variable set of synchronization deflections was discovered in a smaller number of deflections (not exceeding 30%). In EEGs recorded for an hour or longer, synchronization was discovered in 45% deflections of 38 subjects at the same alpha-wave frequency (Table 1). The shape of an EEG of such synchronization is similar to that of a neural network and is periodically rediscovered in all of the subjects. It is the synchronization area regularly occurring in certain deflections that corresponds to the “synchronization pattern”. Please refer to table 1 below for a synchronization area found in G-v, age 33, provided by way of illustration (Table 1).

Thus, periodical synchronization on the recurrent list of 50% or more defections is found in all of the subjects. The interval between those “synchronization patterns” was 20 to 40 seconds when in background mode for all of the subject groups.

A “synchronization pattern” with the prefrontal cortex involved was also identified in subjects doing “Mental subtraction” oral cognitive test (Table 2). This pattern could be also observed in the subjects who succeeded in completing the task over a shorter period of time. Here, faster neural network synchronization was discovered in successful subjects, with the very synchronization period being 5 to 10 sec shorter, which could be indicative of improved resource mobilization, coming in the shape of faster rate and cortical links between respective brains areas involved in solving the test.

EEG analysis found that pattern borders (up to 25% of the deflections) could shift either to the left or to the right cortical hemisphere, while the pattern typical of a specific subject remained unchanged (e.g. fronto-centro- temporal) in all of the groups. Thus, the dynamical nature of changes in the sync pattern borders could be observed. Any changes in the sync pattern intervals are similar to that found when in background state. Dominant alpha- wave frequencies were individualspecific and depended on a specific test being done. This cyclic nature of periodic synchronization of deflections groups was discovered in alpha-, theta- and even beta-range waves, though it was both cyclic and stable in EEG alpha-wave range only.

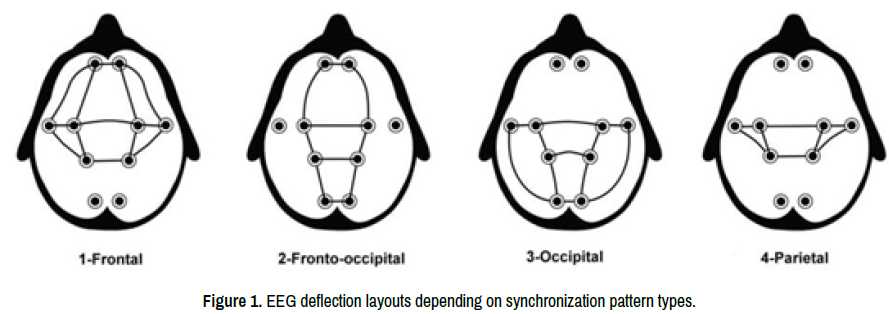

Having analyzed EEGs of all the subjects, we discovered four synchronization pattern types (Figure 1). Type One pattern was synchronization between frontocentro- temporal deflections of the cerebral cortex – the “frontal type”. Type Two pattern was periodical interaction between fronto-centro-occipital deflections at the same alpha-wave – the “fronto-occipital type”. Type Three pattern occurs whenever regular synchronization between centro-temporo- occipital deflections occurs – the “occipital type”. Type Four pattern is synchronization between centro-temporal deflections with frontal or occipital deflections periodically joining in – the “parietal type” (Figure 1).

In each of the above pattern types, synchronization with the somatosensory area of the cerebral cortex involved could be observed; some researchers believe that the area in question is the projection area of the conductive pathways in the thalamic nuclei. The analysis of the EEG records found that Type One synchronization between the fronto-centro-temporal deflections of the cerebral cortex was the most common among all of the subjects, 28 subjects out of 51 or 54% of all the subject groups studied. Type Two pattern or the synchronization between fronto-centro-occipital deflections was found in 11 subjects (21%). Synchronizations between the centro-temporo- occipital deflections were the least common (7 subjects, 14% of all of the subjects).

Open-eye EEG background record (BR) data analysis suggests that the brain asymmetry value tends to a decrease from the Control Group (15–25%) to the Athlete Group (15–20%) and down to the PPRS Group (10–15%). No such difference between groups is found when doing closed-eye test, with the brain asymmetry value decreased to 10–15% in all of the groups. The cyclic nature of synchronization processes was the most pronounced in the athletes, with rather an equal involvement of both brain hemispheres in the process when in all of the states studied. The periodicity of pattern occurrence when BR EEG was being recorded varied from group to group: when recording with the Eyes Open (EO), the least period of sync pattern formation in alpha-wave was observed in the athletes and it took the pattern 10 ± 5 sec on average to form in the PPRS Group it took 15 ± 5 sec and 20 ± 5 sec in the Control Group.

When taking records with Eyes Closed (EC), the pattern periodicity decreased in the Athlete Group and the PPRS Group compared to the EO BR and was 10 ± 5 sec, while in the Control Group it was 15 ± 5 sec. The differences between the groups were not confidential, with alpha-wave generalization detectible in all of the subject groups, occurring periodically after the sync pattern and at the same frequency. Moreover, in the athletes, the generalization was detected 2 to 3 times a minute and lasted 5 to 15 sec; in eth PPRS Group subjects, it was 20 to 30% longer, while on the Control group, the generalization was observed once in a minute and lasted 5 to 8 seconds.

EO and EC BR EEG analysis discovered changes on the alpha-wave sync pattern frequency (Figure 2). In the Athlete Group and the PPRS Group, the change in question was a wave-shaped (cyclic) switch from a low- frequency spectrum (7.5–8.9 Hz) to a medium-frequency band (9–10.9 Hz) and occurred 2 to 4 times a minute, while in the Control Group, changes in the alpha-wave sync pattern frequency showed no rhythmic nature and occurred once or less than once in a minute (Figure 2).

The data suggesting that synchronization patterns in athlete groups are of similar nature to those found in groups practicing PPSR are of interest. Sync pattern is detected in the fronot-centro-temporal deflections in 80% of those subjects and in fronto-centro-occipital deflections and in centro-temporo-occipital deflections in 20% of those subjects.

Almost all synchronization pattern types, except for the “parietal”, can be found in the Control Group, with the “fronto-occipital type” of fronto-centrooccipital deflections being predominant in this Group and found in 5 out of 12 subjects. EEG analysis suggests that the alpha-wave index in the frontal and the temporal deflections of the anterior sync pattern type is on average 50% higher than the alpha-wave index in the same-type transversal deflections (Table 3). In contrast to the Athlete Group, pattern border shift towards either the left or the right hemisphere is detected in 1/3 of the controls.

Thus, spectrum frequency analysis of the EEGs identified a regular synchronization at a specific dominant frequency of alpha-wave activity in 50% of deflections. It is worth noting that the synchronization in question occurs between a certain set of deflections (8–10 out of 16) and is visually shaped like a pattern of synchronization between a groups of deflections in the cerebral cortex. The sync periodicity ranged between 5 and 70 sec and depended on both a subject’s being member of a specific group and their state (the functional test results), with the pattern periodicity being highest in the Athlete Group and lowest in the Control Group. Based on synchronization variations within alpha-wave range, we identified four pattern types. The synchronization pattern between fronto-centro-temporal deflections of the cerebral cortex was the most common and was mostly found in the athletes and those practicing PPRS. The “frontal” and the “fronto-occipital” types were most common sync types among the controls.

EEGs recorded with eyes open and closed, alpha-wave generalization that occurred periodically in the wake of the sync pattern at the same frequency was found in all of the subjects, being most commonly discovered in athletes’ EEGs.

Our findings allow concluding that the synchronization process parameters that are predominant in the athletes having improved resource mobilization ability are as follows

Synchronization pattern being predominant in the fronto-centro-temporal deflections.

The shortest synchronization pattern formation period.

Wave-shaped changes from low-frequency to medium-frequency band of alpha-waves when in background state with eyes open.

Long alpha-wave generalization coming in the wake of a synchronization pattern.

Least shift of pattern borders towards the left or the right hemisphere.

Both of the brain hemispheres being equally involved in the synchronization process.

It is noteworthy that most of the parameters found in the subjects practicing relaxation are similar to those found in the athletes in terms of their values.

Discussion

Our research findings suggest that functional cycles are part of the human body when it is physiologically at rest or when in a state of adaptive compensatory rearrangements. The findings presented in this Article imply that there exist individual and possibly, genetically fixed mechanisms for the central organization of adaptive processes.

There exist scientific researches suggesting that a “functional core” organizing bioelectric brain activity within certain frequency ranges is formed by oscillations at the alpha-wave activity frequency [20,21]. It is possibly due to the “functional core” that regular synchronization patterns are found within the alphawave range.

It is noteworthy that any pattern type synchronization occurs within the deflections of the somatosensory cerebral cortex that is the brain’s projection of the conductive pathways from the thalamic nuclei. Alpha-wave synchronization is attributed to pronounce activity in the trunco-thalamo-cortical system that, depending on a frequency and tasks to be accomplished, may exert either an excitatory or an inhibitive influence on the cerebral cortex. An extent to which alpha-wave activity occurs within all brain areas reflects the internal activity balance of the synchronizing influences from the thalamus and desynchronizing influences (primarily, from reticular and truncal structures) on the cerebral cortex [22,23].

Periodic occurrence of alpha-wave generalization in the wake of synchronization at a frequency similar to that of the very pattern, that is, the occurrence of synchronization at the same frequency within more than 90% of the deflections may indicate that low-frequency wave activity occurs in the reticular formation. We know from research by Giuseppe Moruzzi that the reticular formation safeguards generalized activation of extensive cortical areas, while working at low frequencies, which contributes to onset of a state of rest. Presentday data [12] suggest that whenever excitation occurs, it is closely followed by inhibition that limits an excitation period, thus creating a time window of integration, which occurs within nearing cortical neural networks. The mechanism in question may be functioning within local neural networks in the same way as it works at a distance. Synchronization between neurons is much higher when there is an ordered time structure of their activity (excitation-inhibition cycles) that it is when there occurs spontaneous neural activity.

Thus, our research confirms that functional states linked to a subject’s resource mobilizing ability are organized centrally. E.g. In the Athlete Group, regular synchronization of more than one-half EEG deflections primarily predominant within fronto-central cortical areas contributes to higher self-regulation levels and improved performance in various activities.

Conclusion

Our findings provide more efficacious ways to improving functional abilities of the central nervous system. E.g. relaxation sessions practiced regularly can be a way to enhancing body resource mobilization.

Our research data can be applied to in functional diagnostics as prognostic criteria for various specialized trainings, or, most importantly, in a clinical environment. It is common knowledge that prognosis and body resource mobilization are pivotal for therapy courses. This prospect needs further comprehensive studies.

Funding

This study did not receive any specific grant from funding agencies in the public, commercial or non-profit sectors.

Author Contribution

TVP¹ organized and prepared the manuscript, prepared tables; YuIK.² conducted research and statistical processing of the results; OGK³ took part in the physiological analysis of the results and the selection of literature.

Acknowledgement

None.

Conflict of Interest

The authors certify that there is no conflict of interest with any financial organization regarding the material discussed in the manuscript.

References

1. Aftanas, L. I., Bazanova O. M., Khabarov A. N. and Pustovoyt S. M., et al. “Placebo Controlled Research into the Impact of Xenon on Human Emotions and Alpha-Wave Frequency” Vestnik Rossiyskoy Akademii Meditsinskikh Nauk 5 (2019): 342-350.
2. Aysheeva, T. A., Saprygin A. E., Savostyanov A. N. and Stepanova V. V. “Personal-Choice and Forced- Choice Behavioral and EEG Responses to Emotionally-Laden Verbal Stimuli In Elementary School Students.” Sotsialnaya PsihkologiyaI Obshestvo 8 (2017): 72-90.
3. Klostermann, Fabian, Lea K. Krugel and Felicitas Ehlen. "Functional roles of the thalamus for language capacities." Front Syst Neurosci 7 (2013): 32.

Google Scholar, Crossref, Indexed at

4. Dzhunusova, G. S., Sataeva N. U. and Sadykova G. S. “Assessment of adaptive capacity, taking into account individual and typological features of central nervous system.” IJFAR 12 (2018): 235-239.
5. Gorev, A. S, Machinksaya R. I. and Farber D. A. “An Impact from Effortful Relaxation on the Functional State of the Brain and Activities of Male Children at Various Teen Age Stages.” Novye issledovaniya 2 (2018): 5-20.
6. Kholmanskiy, Alexander S. and Andrey A. Minakhin. "Interrelation of electrical oscillations of heart and brain." (2018).

Google Scholar, Crossref, Indexed at

7. Koryukalov, Y. I., T. V. Popova and V. V. Erlich. "Individual electroencephalogram pattern and regulatiry processes of the brain." Gazzetta Medica Ital Arch per le Sci Mediche 177 (2018): 131-6.

Google Scholar, Crossref, Indexed at

8. Knyazev, G. G., Bocharov A. V., Savostyanov A. N. and Levin E. A. “EEG correlates to the default system activity when processing of socially meaningful information.” Zhurnal Vysshey Nervnoy Deyatelnosti Im Pavolova 70 (2020): 174-181.
9. Lobov, Sergey A. "Volume 14 Issue 2 Year 2019 generalized memory of stdp-driven spiking neural network."

Google Scholar, Crossref, Indexed at

10. Mazurov, M. E. and Nonlinear Dynamics Synchronization. “Between neural ensembles when attention forms.” Izvestiya RAN. Seriya fizicheskaya 84 (2020): 451-456.
11. Martynova, O. V., A. O. Sushinskaya-Tetereva, V. V. Balaev and A. M. Ivanitskii. "Correlation between the functional connectivity of brain areas active in the resting state with behavioral and psychological indicators." Neurosci Behav Physiol 47 (2017): 1128-1139.

Google Scholar, Crossref, Indexed at

12. Marchenko, G., Zaychenko M. I. and Gamk B. “Inhibition via Feedbacks Participates In Synchronization Of Interictal Spikes In The Cerebral Cortex.” Usp Fiziol Nauk53 (2022): 52-75.
13. Mızrak, Eda, Nichole R. Bouffard, Laura A. Libby and Erie D. Boorman, et al. "The hippocampus and orbitofrontal cortex jointly represent task structure during memory-guided decision making." Cell Rep 37 (2021): 110065.

Google Scholar, Crossref, Indexed at

14. Gütling, Eva, Arthur Gonser, Hans-Georg Imhof and Theodor Landis. "EEG reactivity in the prognosis of severe head injury." Neurology 45 (1995): 915-918.

Google Scholar, Crossref, Indexed at

15. Pessoa, Luiz. "Understanding emotion with brain networks." Curr Opin Behav Sci 19 (2018): 19-25.

Google Scholar, Crossref, Indexed at

16. Pfurtscheller, Gert, Katarzyna J. Blinowska, Maciej Kaminski and Beate Rassler, et al. "Processing of fMRI-related anxiety and information flow between brain and body revealed a preponderance of oscillations at 0.15/0.16 Hz." Sci Rep 12 (2022): 9117.

Google Scholar, Crossref, Indexed at

17. Popova, T.V. “The Method of Relaxation Psychophysical Regulation of a Person.” Patent na izobretenie 2155075. Russian Federation(2000).
18. Popova, V. T., I. G. Maksutova, G. E. Savinykh and S. A. Aminov, et al. "Psychophysiological aspects of work and health enhancement in physical education teachers (a randomized controlled study)." J Phys Educ Sport 21 (2021): 3464-3469.

Google Scholar, Crossref

19. Fedorova, O. I., A. A. Lependin and S. G. Krivoschekov. "Spectral analysis of vegetative function rhythms of ultradian and circadian range in humans in subextremal environmental conditions." Ekol Cheloveka 1 (2011): 19.

Google Scholar

20. Rudebeck, Peter H., Richard C. Saunders, Dawn A. Lundgren and Elisabeth A. Murray. "Specialized representations of value in the orbital and ventrolateral prefrontal cortex: Desirability vs. availability of outcomes." Neuron 95 (2017): 1208-1220.

Google Scholar, Crossref, Indexed at

21. Shemyakina, N., Zh Nagornova and S. Soroko. "A longitudinal study of electroencephalogram spatial connectivity maturation in children and adolescents-northerners (from 8 to 16/17 years old)." Zh Vyssh Nerv Deiat Im I P Pavlova 71 (2021): 515-528.

Google Scholar, Crossref

22. Sükuti, Murat. "The Intermediary Rhythm as the Precise Sign of Mental Relaxation." Int J Psychophysiol 168 (2021): 49.

Google Scholar

23. Taranenko, A. M. “Fractals and multifractals in electrocardiograms and electroencephalograms: Informational value and new possibilities.” Sovrem Probl nauki obraz 6 (2019).
