Evaluation of Arsenic Health Risk Assessment to Human Population by Consumption of Cereal Food Crops Irrigated with Diverse Types of Water

Zafar Iqbal Khan¹, Kanwal Sultana¹, Kafeel Ahmad¹, Shahzad Akhtar¹, Shaista Jabeen¹, Shamayem Aslam^2*, Aima Iram Batool³, Hafsa Memona⁴, Shahida Parveen⁵, Muhammad Nadeem⁶ and Mobeen Fatima^6
*Correspondence: Shamayem Aslam, Institute of Molecular Biology and Biotechnology (IMBB), the University of Lahore, Lahore, Pakistan, Email:

Keywords

Municipal wastewater • Standard limit • BCF • PLI • EF • DIM • HRI

Abbreviations

AAS: Atomic Absorption Spectrophotometer • DIM: Daily Intake of Metals • PDTI: Provisional Tolerable Daily Intake • HRI: Health Risk Index

INTRODUCTION

The metals can build up in the body, resulting in oxidative stress and clinical symptoms. Thus, painful gullet, upper body pain, headache, coughing, faintness, and lung difficulties are observed in Arsenic, they also cause cancer and inhibit protein synthesis [1]. In environment the major anthropogenic sources of arsenic are from the burning of the coal as well as a petroleum [2]. Arsenic is volatilized form burned coal, but can be reduced downstream in fine particulate materials [3]. In the world-wide coal industry that estimated the Arsenic concentration that is 5mg kg^-1 and their contribution are annual and cumulative. In fact, the arsenic concentration in coal that fluctuate over high range from 0.3 – 93 mg kg^-1 or from 0.34- 130 mg kg^-1 [4,5]. In other countries like Europe, New Zealand, USA and New South Wales contained Arsenic trace are 200 mg kg⁻¹. Even in China some Arsenic coals have several thousand mg As kg⁻¹ [6].

Wastewater is contaminated with the waste of industries and hazardous metals. In Pakistan, freshwater resources are scarce, so wastewater is used for agriculture. Long-term use of wastewater leads to the accretion of harmful metallic elements in agronomic loams and floras. Wastewater is continuously utilized for irrigation and carriages a hazard to the healthiness of the creatures [7]. It is prominent from various articles that wastewater irrigated soil is linked with impurity of heavy metals, it become an important concern today. The collection of unneeded investigated heavy metals in the environment could cause probable noxious influence on human health [8,9]. Owing to the absence of any laws related to the prevention of wastewater for crop irrigation this is being used at a huge scale as a consequence gathering of metals in top crops, water, and soil. Food safety is in danger when the wastewater irrigation is lengthened, and the buildup of metals goes beyond the boundary in soil and crops [10].

In water, trace metals are discharged through different sources that inudating with water in vegetables [11]. In plants the most consumable portion are the vegetables. They have important features that can be efficiently used to develop the body. In Pakistan various types of vegetables are grown. Vegetables are commercially used in a basic store, and they admired mostly to increase the sugar contents [12]. The eatable parts of the vegetables in which metals are exchanged, laterally these lines that turn into pieces of our consumption routine that cause sever health issues, for those which consuming that vegetation high in dangerous metals [13].

Present study in which the concentrations of Arsenic metalloids were estimated in water and soil cereals. This work was completed to determinate the effect of metalloid accumulation in the soil and cereals at GWI-I, CWI-II, and WWI-III and to observed the basis of the contamination within the location and HRI to humans.

Material and Methods

Sites description

Firstly gathered a variety of samples of Cereal crops, soil, and blood of humans and water from four dissimilar places of District Sargodha. Work was started from April-2020 to May 2021, an individual sites in which three repeats of every specimen was selected.

Water sampling

The water samples were selected from the related cereals. For digestion water sample took in a 2ml bottle then saved it Table 1.

Cereal crops sampling

Five cereal crops in which 25 specimens were collected, then select five copies of every specimen for each site. Firstly collected the Corn Wheat, Flax (Alsi), Jodar, and Milllet from the sides of roads for each site. Then show the cereal samples in the air to dry. Then, kept them in the oven at 75°C for one week. After drying the samples completely they are grinded and converted into fine powder and 2 gram sample was protected for the digestion.

Soil samples

Fourty five samples were collected from different sites of the Sargodha soil. For all selected sites are used a colorless steel auger to dig up at 12-15 cm in deep layers. For sampling, at least 2g of soil samples were put in plastic bags. Soil samples were dried in air for almost 3-5 days and after that in Oven for 72 hours at 80°C. In the end, saved these samples in plastic bags for additional digestion methods. Soil sample for digestion was prepared by Khan ZI, et al. [14,15] with some modifications.

Blood serum

First of all, choose many specimens of blood from specific places of District Sargodha. The work followed the ethical criteria outlined in the World Medical Association Declaration of Helsinki (WMA 2013), for medical research involving human subjects. After thoroughly presenting the study methodology, informed consent indicating a willingness to engage in the study was obtained, and those who volunteered to participate in the study on their own were included. The volunteers agreed to give a 3-ml blood sample.

The sample was taken via vein puncture by a qualified technician from the licensed laboratory By Thyrocare, they follow the normal blood collection method. Blood samples were collected in 3 ml EDTA tubes, shaken well, and taken to Thyrocare Technologies Limited for analysis on the day of collection, air was conveyed to Mumbai in a frozen form, and analyzed by (ICP-MS) inductively coupled plasma-mass spectrometry. To get the serum, the blood and blood plasma samples were centrifuged for 15 min at 3000 rpm. Then stored it in polyethylene tubes and frozen them at –20°C. The metal serum analysis was prepared by Ashfaq A, et al. [16] with some modifications.

Metal investigation

A few steps were in consideration to assess the level of metals are Digestion, Dilution, Filtration and Spectrophotometer/Atomic Absorption.

Chemicals and Instruments

Four beakers (100 and 250 mL), Gloves, two digestion flasks (100 mL), two hydrogen peroxide (H₂O₂) 50%, hot plate, Sulphuric acid (2 mL), stirrer, filter paper 50 mL measuring cylinder Tripod stands, newly produced distilled water, and tiny plastic bottles.

Wet acid (Digestion) method

Dried powdered dirt (soil) specimens of one grams were placed in a digestion flask with 8 (mL) H₂SO₄ on top. Then this acid and soil mixture was heated for almost 30 min, 10 (mL) H₂SO₄ more addition with flame even the deposits became brilliant. After that, 4 (mL) H₂O₂ was added and heated once more. Distilled water is used for the dilution of solution exceeds the volume up to 50 (mL) and saved until metal analysis. With the ratio of 4 and 2 H₂SO₄ and H₂O₂ were used to digest the one gram cereals samples at 250°C for at least 3 to 4 hours even colorless solution formed with heavy and colorless white vapors emerged in the flask.

Distilled water was used to wash the flask remains and filtered by using Whatman filter paper. 50 (mL) diluted solution formed by the addition of distilled water for remaining analysis. The blood was centrifuged after it had been heparinized. After that, blood plasma 2 (mL) was mixed with 2 (mL) H₂SO₄, and this sample mixture was allowed to sit overnight to continue the digestion phenomenon. The sample mixture was break down at 120°C, till all the considered organic was dissolved. H₂O₂ 2 (mL) was added to speed up the oxidation process of digestion. Samples after digestion were chilled, and ultrapure water was utilized to dilute the digested samples to 60 (mL), then put them in tubes (glass) for analysis. After digestion, all the given samples were diluted with ultra-pure water even to make the sample of 50 (mL). After that observed samples of soil, forages blood, and hair was subjected to a filtration process then these samples have to be preserved in bottles (plastic).

Metal analysis

The arsenic (As) samples were examined in a fluorometric [17], and AAS Perkin Elmer Aanalyst 400 [18].

Statistical study

The mean contents of the toxic metals were obtained from soil, Cereals, and blood samples were existing in separately repeat. Then used SPSS Software and ANOVA to find out Variance and correlations.

Pollution load index

PLI found by using this formula:

i)

Bio-concentration factor

Cui YJ, et al. [19] methods were used in these calculations for BCF

Daily intake of metals

(DIM) Daily intake of metals can be determined in this method:

iii) DIM = C metal * D food intake / A average weight

Health risk index (HRI)

Estimation of HRI done by this procedure

iv) HRI = DIM / Rf D

Enrichment factor (EF)

It is determined by this methodology

Results

Water

In site 1 the maximum mean concentration of Arsenic in water was prescribed (0.029 mg L^-1) and the minimum concentration in water was present in site 3(0.0002 milligram/liter). Order of the sites are Site one > Site two > Site three (Table 2).

Soil

In site 1 the maximum concentration of Arsenic (As) in soil was present in Zea mays (9.08 mg/kg) and the minimum value was detected in Triticum aestivum (8.21 mg/kg). And the order of the concentration was prescribed as Zea mays> Pennisetum glaucum > Avena sativa Linum usitatissimum >Triticum aestivum.

At site 2 the maximum value was in P. glaucum (7.33 mg/kg) and the minimum value was in Z. mays (5.41 mg/kg). And the order of concentration was Pennisetum glaucum > Triticum aestivum > Avena sativa> Linum usitatissimum> Zea mays. The maximum value at site 3 was prescribed in Avena sativa. (5.72 mg/kg). Minimum value was in L. usitatissimum (5.51 mg/ kg). And the order of the concentration was prescribed Avena sativa > Triticum aestivum > Zea mays> Pennisetum glaucum > Linum usitatissimum (Table 3). Various soil factors and pH affect the availability of metals by the plants from the soil and plants have different potential for absorbing the metals. Factors persuading the bioavailability of metals and their incidences in crops were found as soil pH, organic matter content, cation exchange capacity, soil texture, and interaction among the target elements. It is concluded that total metal concentrations in soils are the main controls on their contents in plants. It has been observed that metals are sparingly soluble under alkaline conditions (pH = 8.0). Metal solubilities are higher when under slightly acidic conditions (pH = 5.0), and increased drastically when pH is kept at 3.3. Concentration and pH parameters in the formation of complex compounds affect the mobility of heavy metals in the soil. At low pH, heavy metals will be released and thus the mobility will increase. These could be the factors that are responsible for different concentrations of arsenic at different sites (Table 3).

Arsenic buildup in cereals

Analysis of variance points out a significant level of Arsenic at the Site, site*cereals. The maximum concentration of As at a site 1 was present in P. glaucum (3.45 mg/kg) and the minimum value was present in Z. mays (1.04 mg/kg). And order of the concentration was prescribed in Pennisetum glaucum > Avena sativa >Triticum aestivum> Linum usitatissimum> Zea mays.

At site 2 the maximum value was prescribed in Pennisetum glaucum (1.7 mg/kg) and the minimum value was in Z. mays (0.02 mg/kg) (Figure 1). And order of the concentration was in Pennisetum glaucum > Avena sativa> Triticum aestivum> Linum usitatissimum> Zea mays.

At site 3 the maximum value was present in P. glaucum (1.7 mg/kg) and the minimum value was present in Z. mays (0.02 mg/kg). And order of the concentration was Avena sativa > Triticum aestivum > Zea mays> Pennisetum glaucum.> Linum usitatissimum (Table 4).

Analysis of arsenic in human blood

Maximum mean concentration of the Arsenic was present in site one (0.0006 mg/liter) and As in human blood the minimum concentration was existing in site 3 (0.0001 mg/L). Order of the sites are as Site one > Site two > Site three (Table 5).

Correlation

All Correlations between soil-cereal, and cereal-blood are non- significant (Table 6).

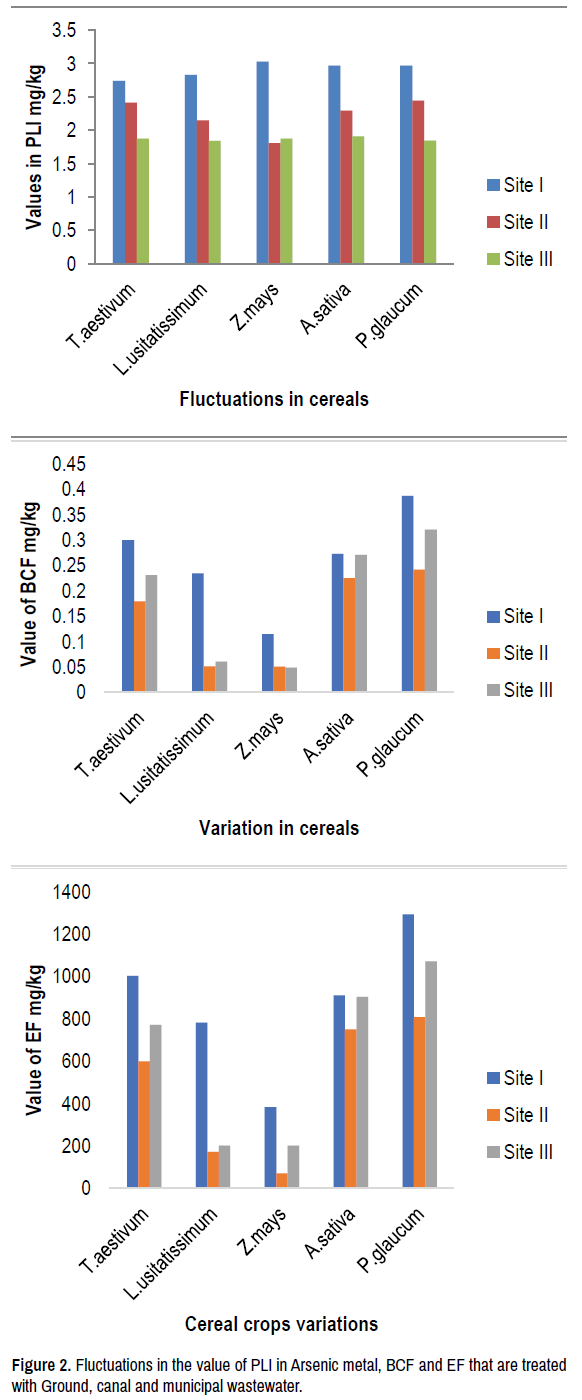

Pollution load Index (PLI)

In soil the PLI (maximum Pollution Load Index) was detected in Zea mays (3.02 mg/kg) and the PLI minimum concentration was existing in L. usitatissimum (1.83 mg/kg). PLI at site one dictate was in Zea mays>Avena sativa> Pennisetum glaucum >Linum usitatissimum>Triticum aestivum (Figure 2). PLI at site 2 was prescribed in Pennisetum glaucum>Triticum aestivum>Avena sativa>Linum usitatissimum>Zea mays. The PLI at site three was prescribed in Avena sativa>Triticum aestivum>Zea mays> Pennisetum glaucum>Linum usitatissimum (Table 7).

Bio-concentration factor

In soil the maximum Bio-concentration Factor (BCF) was detected in Pennisetum glaucum (0.38 mg/kg) and BCF minimum concentration was present in Zea mays. The order of BCF at site 1 was prescribed in Pennisetum glaucum>Triticum aestivum>Avena sativa>Linum usitatissimum >Zea mays. BCF at site 2 was prescribed in Pennisetum glaucum>Avena sativa> Zea mays> Triticum aestivum>Linum usitatissimum. At site three BCF instruction was detect in Pennisetum glaucum>Avena sativa>Triticum aestivum>Linum usitatissimum>Zea mays (Table 8).

Enrichment factor

In soil the maximum Enrichment Factor (EF) was detected in Triticum aestivum (100.8 mg/kg). And EF minimum concentration was present in Pennisetum glaucum (10.41 mg/kg). At the site one, the order of Enrichment Factor was prescribed in Pennisetum glaucum>Triticum aestivum>Avena sativa>Linum usitatissimum>Zea mays. At the site two, EF was prescribed in Pennisetum glaucum>Avena sativa>Triticum aestivum>Linum usitatissimum>Zea mays. At site three, Enrichment Factor was prescribed in Avena sativa>Triticum aestivum>Linum usitatissimum>Zea mays> Pennisetum glaucum (Table 9).

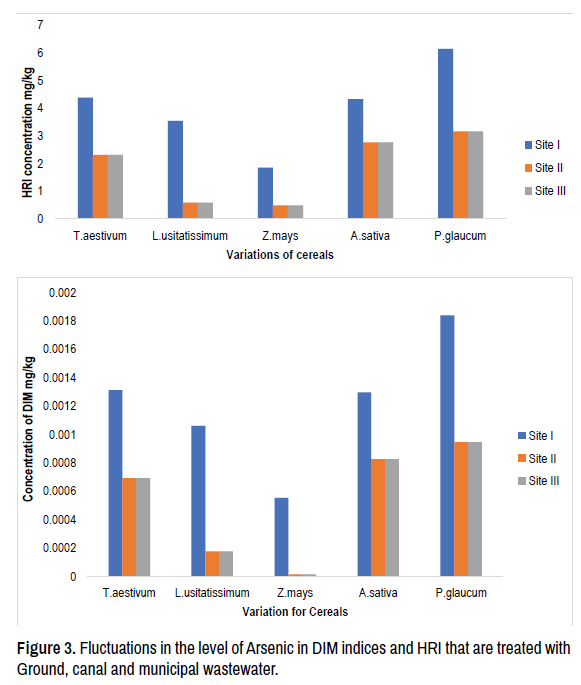

Daily intake of metals

Maximum Daily Intake of Metals (DIM) in the soil was detected in Zea mays (1.46 mg/kg) and DIM minimum concentration was presents in Linum usitatissimum (0.00106 mg/kg). At site one, the order of DIM was prescribed in Pennisetum glaucum>Triticum aestivum>Avena sativa>Linum usitatissimum>Zea mays (Figure 3). At site 2 the direction of the DIM was detect in Zea mays>Pennisetum glaucum>Avena sativa>Triticum aestivum>Linum usitatissimum. Order of DIM at site three, that was prescribed in Zea mays> Pennisetum glaucum>Avena sativa>Triticum aestivum>Linum usitatissimum (Table 10).

Health risk index

For soil the maximum HRI (Health Risk Index) was detected in P. glaucum (6.12 mg/kg) and HRI the minimum concentration was present in Zea mays (0.048 mg/kg). At site one, Order of HRI was prescribed in Pennisetum glaucum>Triticum aestivum>Avena sativa>Linum usitatissimum>Zea mays. The value HRI at the site two, was in Pennisetum glaucum>Triticum aestivum>Avena sativa>Linum usitatissimum>Zea mays. The order at the site three, was prescribed in Pennisetum glaucum>Triticum aestivum>Avena sativa>Linum usitatissimum>Zea mays (Table 11).

Discussion

Heavy metal contamination of water that can increase the risks of human health through a variety of exposure mechanisms. Only oral intake has been deliberated in the current study for considering the health risks in the adult population. Arsenic maximum mean concentration was present in water at site one (0.029 mg/L) and the As minimum concentration was present in site three (0.0002 mg/L) noted the content of As in water (0.1 mg/kg) [20]. This concentration was higher than our present value. At site 1, maximum As concentration was present in Z. mays soil (9.08 mg/kg) and the minimum value was prescribed in Triticum aestivum soil (8.21 mg/kg). At site 2 the maximum value was in P. glaucum (7.33 mg/kg) and the minimum value was present in Z. mays soil (5.41 mg/kg). And the order of concentration was at site 3 maximum value was in A. sativa soil (5.72 mg/kg) and the minimum value was in L. usitatissimum (5.51mg/kg). FAO/WHO reported the concentration of As in soil (9.36 mg/kg). This concentration was higher than our current value of As. Alloway BJ, [21] reported the As concentration in soil (20 mg/kg). This concentration is greater than our present value. Singh R, et al., [20] reported the As concentration in soil (29.0 mg/kg). This concentration was higher than our current value.

At site 1, maximum concentration of As was present in cereals P. glaucum (3.45 mg/kg) and the minimum value was in Z. mays (1.04 mg/kg). At site 2 the maximum value was present in P. glaucum (1.7 mg/kg) and the minimum value was present in Z. mays (0.02 mg/kg). At site 3 maximum values was found in P. glaucum (1.7 mg/kg) and the minimum value was present in Z. mays (0.02 mg/kg).

Alloway BJ [21] reported the As concentration in soil (3.0 mg /kg) that was higher than our existing value. Dosumu OO, et al. [22] stated the concentration of Arsenic in cereals (7.0 mg /kg) that was also higher than our present value.

site 1, maximum Arsenic (As) mean concentration was existing (0.0006 mg/liter) and the minimum As concentration was existing in site three (0.0001mg/liter). For soil, maximum DIM was detected in Zea mays (1.46 mg/ kg) and the minimum concentration of DIM was present in L. usitatissimum (0.00106 mg/kg) however, (WHO/FAO, 2007) stated the DIM (2.14 mg/kg) that was higher than our present value. Arsenic ensured higher values of HRI than site 1 and signifying that these metals ensured high probability to cause human health problems [23-25].

Recommendations and Conclusion

The concentration of Arsenic (As) water was smaller than safe limits. The current value of As in soil was 9.08 mg/kg, and this value was higher than standard limits. As the value in cereals was also greater than standard limits. Analysis of human blood also shows that the concentration of Fe was higher. The value of PLI and HRI for As was less, but the value of EF, and BCF have higher values, and the value of DIM was less.

Such a greater quantity of dangerous metal pollution may create a risk to the local community. This study recommended that both cereals and medicinal plants should be analyzed for heavy metals in polluted regions before being used. The extreme amount of As can cause serious damage to the reproductive system, nervous system, and all body functioning.

Acknowledgement

To all the reviewers, as well as those involved in sampling, design, and paper preparation, we would like to express our gratitude.

Funding

Not applicable.

Credit Authorship Contribution Statement

Conceptualization and Supervision; ZIK, KA, SA, Methodology; KS, AIB, SP, Resources; SA, HM, Software; SA, MN, Original Draft Preparation; SA.Ch, KS, SJ, MF, MAA.

Conflict of Interest

The authors declare that there is no conflict of interest.

Permission to Publish

The authors declare that the manuscript has not been published previously.

REFERENCES

1. Jaishankar, Monisha, Tenzin Tseten, Naresh Anbalagan and Blessy B. Mathew, et al. "Toxicity, mechanism and health effects of some heavy metals." Interdiscip Toxicol 7 (2014): 60.

Google Scholar, Crossref, Indexed at

2. Borah, Preetismita, Manish Kumar, and Pooja Devi. "Types of inorganic pollutants: metals/metalloids, acids, and organic forms." In Inorganic pollutants in water, pp. 17-31. Elsevier, 2020.

Google Scholar, Crossref, Indexed at

3. Wang, Chunbo, Huimin Liu, Yue Zhang and Chan Zou, et al. "Review of arsenic behavior during coal combustion: volatilization, transformation, emission and removal technologies." Prog Energy Combust Sci 68 (2018): 1-28.

Google Scholar, Crossref

4. Piver, WARREN T. "Mobilization of arsenic by natural and industrial processes." Biological and Environmental Effects of Arsenic 6 (1983): 1.

Google Scholar

5. Bowen, Humphry John Moule. Environmental chemistry of the elements. Academic Press, 1979.

Google Scholar


6. Baur W.H and. Onishi. Arsenic. In: Wedepohl KH (ed) Handbook of geochemistry, Springer, Berlin Heidelberg New York 11-3. (1969): pp 33.
7. Hashem, Mahmoud S and Xuebin Qi. "Treated wastewater irrigation-A review." Water 13 (2021): 1527.

Google Scholar, Crossref, Indexed at

8. Ahmad, Kafeel, Asma Ashfaq, Zafar Iqbal Khan and Muhammad Ashraf, et al. "Health risk assessment of heavy metals and metalloids via dietary intake of a potential vegetable (Coriandrum sativum L.) grown in contaminated water irrigated agricultural sites of Sargodha, Pakistan." Hum Ecol Risk Assess: Int J 22 (2016): 597-610.

Google Scholar, Crossref, Indexed at

9. Mishra, Sandhya, Ram Naresh Bharagava, Nandkishor More and Ashutosh Yadav, et al. "Heavy metal contamination: an alarming threat to environment and human health." In Environmental Biotechnology: For Sustainable Future, pp. 103-125. Springer, Singapore, 2019.

Google Scholar, Crossref, Indexed at

10. Lu, Yonglong, Shuai Song, Ruoshi Wang and Zhaoyang Liu, et al. "Impacts of soil and water pollution on food safety and health risks in China." Environ Int 77 (2015): 5-15.

Google Scholar, Crossref, Indexed at

11. Mushtaq, Nauman, and Khalid Saifullah Khan. "Heavy metals contamination of soils in response to wastewater irrigation in Rawalpindi region." Pak J Agri Sci 47 (2010): 215-224.

Google Scholar, Indexed at

12. Ahmad, Kafeel, Asma Ashfaq, Zafar Iqbal Khan and Muhammad Ashraf, et al. "Health risk assessment of heavy metals and metalloids via dietary intake of a potential vegetable (Coriandrum sativum L.) grown in contaminated water irrigated agricultural sites of Sargodha, Pakistan." Hum Ecol Risk Assess: Int J 22 (2016): 597-610.

Google Scholar, Crossref, Indexed at

13. Alam, M.G.M., E.T. Snow, and A1 Tanaka. "Arsenic and heavy metal contamination of vegetables grown in Samta village, Bangladesh." Science of the Total Environment 308 (2003): 83-96.

Google Scholar, Crossref, Indexed at

14. Khan, Zafar Iqbal, Radiqa Arshad, Kafeel Ahmad and Naunain Mehmood, et al. "79. Effect of municipal solid waste application on heavy metal distribution in different parts of wheat plant." Pure Appl Biol (PAB) 9 (2020): 833-846.

Google Scholar, Crossref, Indexed at

15. Khan, Zafar Iqbal, Hareem Safdar, Kafeel Ahmad and Kinza Wajid, et al. "Copper bioaccumulation and translocation in forages grown in soil irrigated with sewage water." Pak J Bot 52 (2020): 111-119.

Google Scholar, Crossref, Indexed at

16. Ashfaq, Asma, Zafar Iqbal Khan, Kafeel Ahmad and Muhammad Arslan Ashraf, et al. "Hazard of selenium metal contamination in vegetables grown in municipal solid waste amended soil: Assessment of the potential sources and systemic health effects." Agric Water Manag 271 (2022): 107768.

Google Scholar, Crossref

17. He, Xia, Gong Guoquan, Zhao Hui, and Li Hu-Lin. "Fluorometric determination of arsenic (III) with fluorescein." Microchem J 56 (1997): 327-331.

Google Scholar, Crossref

18. Welsch, F.P. "Trace elements determination of arsenic and selenium using continuous-flow hydride generation atomic absorption spectrophotometry (HG-AAS)." Quality Assurance Manual for the Branch of Geochemistry (1990): 38-45.

Google Scholar

19. Cui, Yu-Jing, Yong-Guan Zhu, Ri-Hong Zhai and Deng-Yun Chen, et al. "Transfer of metals from soil to vegetables in an area near a smelter in Nanning, China." Environ Int 30 (2004): 785-791.

Google Scholar, Crossref, Indexed at

20. Singh, Reena, Neetu Gautam, Anurag Mishra, and Rajiv Gupta. "Heavy metals and living systems: An overview." Indian J Pharmacol 43 (2011): 246.

Google Scholar, Crossref, Indexed at

21. Alloway, B J. "Soil processes and the behaviour of metals." Heavy Metals in Soils 13 (1995): 3488.

Google Scholar, Crossref, Indexed at

22. Dosumu, Omotayo. O., Nasir Abdus-Salam, Stephen Oguntoye, and F. A. Afdekale. "Trace metals bioaccumulation by some Nigerian vegetables." Centrepoint 13 (2005): 23-32.

Google Scholar, Indexed at

23. Briggs, Hilton Marshall. "Modern breeds of livestock." Modern breeds of livestock. (1949).

Google Scholar

24. Jan, F. Akbar, M. Ishaq, S. Khan and I. Ihsanullah, et al. "A comparative study of human health risks via consumption of food crops grown on wastewater irrigated soil (Peshawar) and relatively clean water irrigated soil (lower Dir)." J Hazard Mater 179 (2010): 612-621.

Google Scholar, Crossref, Indexed at

25. Johnsen, Ida Vaa, and Jorunn Aaneby. "Soil intake in ruminants grazing on heavy-metal contaminated shooting ranges." Sci Total Environ 687 (2019): 41-49.

Google Scholar, Crossref, Indexed at
