Evaluation of Indoor Air Pollution in Urban Homes: A Case Study from Isfahan, Iran

Loghmani F^1*, Jones C² and Hertel O^3
*Correspondence: Loghmani F, Department of Environmental Science, Faculty of Natural Resources, Isfahan University of Technology, Iran, Tel: +9809305017978, Email:

Keywords

Indoor air pollution; Kitchens; Gas stove; Hood range

Introduction

Since the dawn of humanity, humans have always had a constant struggle about indoor air pollution. Due to its importance, scientists have tried to evaluate the effects of air pollutants on human’s health and diminish their harmful risks in the best way possible. The World Health Organization (WHO) has reported that indoor air pollution is one of the most significant environmental factors that threaten human’s health [1]. Generally, Indoor Air Pollution (IAP) is defined as air quality within and around the structures of buildings which leads to discomfort and/or health problems for the occupants or residents [2]. Carbon Monoxide (CO), Particulate Matter (PM), Nitrogen Dioxide (NO₂), formaldehyde, black carbon, Polycyclic Aromatic Hydrocarbon (PAH) are just a few of the more common indoor pollutants that are generated by incomplete burning of fuels for heating purposes like cooking [3-6]. Pratali et al. [7] stated that during cooking, fumes will be generated from fuel burning, oil heating and food processing at high temperature. The generated particulate matter cloud indexed by PM_2.5 contains organic compounds and hazardous chemicals, like metals, polycyclic aromatic hydrocarbons, carbonyl compositions, benzene and quinines.

Epidemiological estimates show that about 4.5 million deaths caused by indoor air pollution including pneumonia, stroke, Ischemic Heart Diseases (IHD), Chronic Obstructive Pulmonary Diseases (COPD), and Lung Cancer (LC). White et al. [8] showed that exposure to air pollution including PM, NO₂, and NO_X enhances the incidence of breast cancer. In other study, Ritz et al. [9] showed that exposure to air pollution can increase the risk of Parkinson’s disease. In two studies about the effect of air pollution on human’s health, it was concluded that NO₂, PM_2.5, and O₃ increase the non-accidental mortality rate in a large population of Canadians [10]. The main concern about indoor air pollution is that individuals like women, children and older adults spend such a large proportion of time inside the home, estimated at up to 90% [11,12]. In a study Singh [13], indicated that more than half of women cooking with traditional cooking stoves experience health problems.

In order to reduce this healthcare burden, National Health Policy tries to reduce environmental hazards through practical control measures for decreasing air pollution. But, to better address this, more research should be conducted into fundamental concepts and descriptions of air pollution, their sources, and negative effects on human health in a localized context. This is because indoor air quality usually varies between different locations depending on human activities, use of consumer products and household installations, building materials, infiltration of outdoor air sources and overall ventilation [14].

Iran is considered a place that has abundant gas resources. Therefore, natural gas is widely used for heating houses. According to the report from the NIGC (National Iranian Gas Company), in 2005, 11.6 million families are covered by the gas distribution network [15]. Burning natural gas for heating the indoor room volumes and water is the main reason that increasing pollutant concentrations may develop in the home environment, particularly, during cold seasons. The aim of the present study is to measure the concentration of gaseous pollutants such as NO₂, SO₂, CO, NO, NO_x in kitchens of houses having different structural building features and kitchen types and the potential correlation between these features in different parts of Esfahan province, to assess exposure to indoor air pollution.

Materials and Methods

Description of study area

Isfahan has an arid climate with low average rainfall and is in the center of Iran. Sample locations are shown in Figure 1 where the five homes were selected. These buildings varied in area (m²), year built, single or double story, and flooring type as described in Table 1. Regarding the buildings, each had the same number of bedrooms and all were naturally ventilated from standard windows. All windows and other ways for outdoor air penetration were blocked during sampling. To calculate realistic levels of pollutants, monitoring was done without any control or interference with the normal activities of the residents. From Table 2, three homes had an open kitchen and two others had an enclosed kitchen. Open kitchens were integrated with the living room and connected to other rooms in the home through interior doorways. Cooking appliances had several differences in term of stove type and range hood. In three homes, venting range hoods used in the kitchens were installed above the cooktops.

In homes P₁ and P₄, a direct heating system (gas heaters with various thermal power), and a storage water heater were used to warm the room volumes of living rooms, bedrooms, and for water. These systems generate heat by burning natural gas as fuel. In the other homes, the interior room volumes and water were heated through central boilers that circulate hot water through pipes to radiator units positioned strategically around the house. Table 3 details the heating systems and types for each location. General information about residents in term of family’s members, the number of males and females, and their habits including whether residents smoke or not, and the dominant methods of preparing food are shown in Table 4.

Air quality measurement

The monitoring was carried out in selected households during winter with continuous sampling over 3 days, in 20-21 o’clock. The concentration of SO₂, CO, NO, NO₂, and NO_x were monitored via portable gas analyzer MRU Vario Plus. The values reported for NO_x are based on the sum of NO₂ and NO [16-18]. temperature and relative humidity were measured continuously during cooking time (1 hour) by HTC-1 thermometer-hygrometer. Air samplings were done in kitchens. During measurement process all doors and windows were closed to make the effect of outdoor pollution least.

Results and Discussion

Environmental variables

During measurement, the outdoor Relative Humidity (RH) ranged from 10-30% and Temperature (T) varied from -1-8°C. The HTC- 1 thermometer-hygrometer was used in order to determine indoor temperature and humidity. Results showed that indoor temperature was 25-28°C and Relative Humidity (RH) was 30-51%. The highest Relative Humidity (RH) was recorded in P₃ and the highest temperature was measured at P₄.

Pollutants concentration

Nitrogen oxides concentration measurement: As expected, the concentration of NO, and NO₂ increased quickly in kitchens when cooktops were working with the highest flame, continuously. Hence, there is a direct relationship between burning natural gas through gas stoves and the concentration of NO₂ at home environment [19]. After finishing cooking events, concentrations started to decline, gradually, in P₁ and P₄ through air exchange with other parts of homes and after a period remained constant because gas fired space heaters fired regularly in bedrooms and the living room. Figure 2 represents NO concentration during cooking for each of the five locations.

Mainly, the process of cooking in the different homes studied places followed three main phases. During the initial phase of cooking, the food material becomes semi-cooked. Here, stoves burn the most amount of natural gas in order to create maximum heat. The greatest concentration of pollutants is produced during this phase. In the secondary phase, the process of cooking becomes relatively complete. Compared with the previous phase, the least amount of natural gas is burnt because this phase occurs gradually. The final maintenance phase is where the prepared foods are kept warm. In this phase, minimum heat is generated by stoves. Here, the lowest amount of fuel is consumed and similarly, the lowest concentration of generated pollutants is produced. From the graph, the concentration of NO raised in first 20 min (Initial phases) and eventually reach to highest point. In next two phases, NO concentration declined gradually which was related to reduction of consumed natural gas.

Measurements in the P₂, P₃ where kitchens were open and semiopen indicated that concentrations reduced with rapid pace because of higher air exchange with other sections of home and using range hood. These days, many studies have referred to the importance of range hood on the concentration of pollutants. Hänninen et al. [20] investigated the infiltration level and fine particle concentration of housing and found that the ventilation rates by infiltration were proportional to the indoor PM_2.5 generated non-environmental tobacco smoke concentration. Gens et al. [21] stated that improvements made to the air tightness of buildings without enough air exchange rate can have unintended adverse health effects.

Also, these houses enjoyed central heating system where the boiler is located outside occupant’s environment. In this regard, the boiler had little influence on the indoor concentrations of NO, NO₂. Another important point in these locations is that NO₂ concentrations in P₃ were lower than P₂ which might relate to the its higher relative humidity content. Francisco et al. [22] stated it is more likely that the wide range of NO₂ decay rates is due to the amount of water mists in the air. However, this explanation is not supported completely.

P₅ showed a different pattern as compared to other homes because of the use of an electric stove. The amount of emitted NO and NO₂ were not surprisingly lower than the other indoor environments. Although studies have reported higher concentrations of nitrogen compounds in homes with natural gas cooking burners compared to homes with electric cooking [23], in this location, a fireplace which was burning natural gas, plays such a prominent role in emission of pollutants like NO₂ and NO. During cooking time, the concentration of both NO₂ and NO remained constant. Such pollutants were generated by the fireplace and some particles which traveled from living room to the kitchen, were driven out via range hood and thermally diffusive flow from their source.

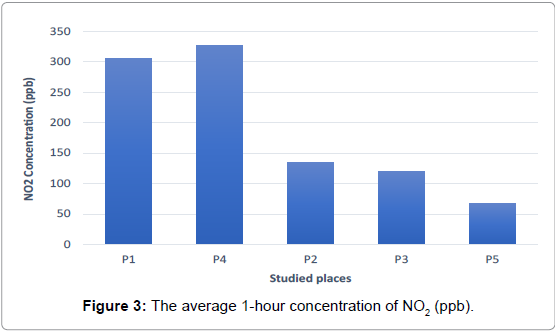

Figure 3 shows the highest 1-hour concentrations of NO₂. The NO₂ level in all house types were higher than the 100-ppb threshold assigned by the EPA. Almost all the homes had NO₂ levels exceeding 50-ppb. Hence, it is concluded that unexpected emissions might occur in homes where natural gas stoves are used. Additionally, the average NO_x concentration in cooking time is calculated by the sum of the concentration of NO and NO₂ and represented in Figure 4.

Concentration measurement: Emitted CO in the home environment is associated with residential appliances, and type of fuels used for cooking, and heating purposes [24-26]. A large proportion of people in developed countries use electric stoves, however, in developing countries particularly like Iran that enjoy plentiful oil and gas resources, gas stoves are preferred. Increasingly, research is focused on measuring indoor CO concentration [27] monitored indoor CO concentrations over a 1-hour interval at different homes. The results varied between 6-8 mg/m³. Figure 4 represents the average 1-hour concentration of CO during cooking process. These results measurements indicated that CO concentrations were lower than WHO standard which are set at 30.55 ppm for 1-h [1]. Based on Figure 5 the highest concentration of 1-hour CO were measured at P₁ and P₄ in kitchens not having a range hood and enclosed type of kitchen and more importantly continuous use of gas heaters.

However, CO had an unpredictably lower concentration in P₃. One of the most significant justifications was related to method of cooking. Generally, two methods of cooking including frying and boiling are common among Iranian families. At P₃, boiling is preferred to prepare food ingredients. In contrast, in P₁ and P₄ both boiling and frying are used, and at P₅, frying is more common. Depend on fuel type, cooking methods and ingredients which are used in kitchens, the type and amount of air pollutants generated by cooking can be varied [28- 30]. Huboyo [31] reported that cooking type can play a crucial role in generated CO. During boiling of water, the CO concentration was at lowest point because water particles can absorb emitted CO. Lee [32] found that the most amount of pollutants are generated during barbecuing. Jiang [33] stated that water mists can diminish both CO and CO₂ concentrations during cooking.

According to the EPA, standard levels in houses without using gas stoves are 0.5-5 ppm, and with gas stoves are 5-15 ppm (EPA 2009). Lee [32] found that cooking methods in restaurants had various emissions of particles and CO. The highest levels of pollutants are generated during barbecuing. Zhao [11] state that the cooking method can have a significant impact on emissions from Chinese cooking. Oil-based cooking produces air pollutants at much higher levels than water-based cooking. CO in P₅ mainly generated by fireplace and then because of air exchange spread out in kitchen.

Concentration of SO₂ : The average concentrations of SO₂ in kitchens are presented in Figure 6 Like the other kinds of pollutants; generated SO₂ heavily depends of the type of cooking appliances and fuels [34]. Obviously, the concentration of SO₂ in P₁ and P₄ kitchens were relatively higher than others. The lowest concentration of SO₂ was recorded at P₅. Generally, four locations had SO₂ concentration near the national standard of AIQ (0.50 mg/m³, 1 h-avarage), and one location had a lower SO₂ concentration. In similar investigation, Cichowicz studied the concentration of NO₂, NO_x, O₃, SO₂, CO, PM₁₀, PM_2.5, and C₆H₆ in selected city, town and rural sites. [35].

Conclusion

This work was conducted under ordinary living conditions and without any control over the occupant’s normal daily activities.

Smoking did not take place by any occupants and all sampling was performed during winter. Selected pollutants were measured using continuous monitoring and allowed us to calculate the concentration of SO₂, NO, NO₂ and CO. Our results support the expectation that the concentration of indoor air pollutants grows dramatically during cold seasons because of the extra requirements for heating. They found out that the highest concentration of these pollutant occurred in winter. Importantly, in traditional kitchens (enclosed and semi-open), pollutants had a higher concentration. Therefore, residents particularly housewives, could be more affected by indoor pollution in such kitchens. Stove and fuel type, ventilation, method of cooking, heating system, and human activities, are other factors which play a crucial role in the concentration of indoor pollutants within enclosed spaces. To minimize the negative effects of indoor pollution and control them, it is suggested that efforts should be made to provide incentives and opportunities for using clean energies like electric instead of fossil fuels.

Acknowledgement

I am using this opportunity to express my gratitude to everyone who supported us throughout the course of this study. We are thankful for their aspiring guidance, invaluably constructive criticism and friendly advice during the project work. We are sincerely grateful to them for sharing their truthful and illuminating views on several issues related to the study. I express my warm thanks to Dr. Seena Rejal and Dr. Mohammad Ali Rejal for their financial support and scientific guidance.

References

1. Suryawanshi S, Chauhan AS, Verma R, Gupta T (2016) Identification and quantification of indoor air pollutant sources within a residential academic campus. Sci Total Environ 569: 46-52.
2. Chen Y, Du W, Shen G, Zhuo S, Zhu X, et al. (2017) Household air pollution and personal exposure to nitrated and oxygenated polycyclic aromatics (PAHs) in rural households: Influence of household cooking energies. Indoor Air 27: 169-178.
3. Du B, Gao J, Chen J, Stevanovic S, Ristovski Z, et al. (2017) Particle exposure level and potential health risks of domestic chinese cooking. Build Environ 123: 564-574.
4. Liu T, Liu Q, Li Z, Huo L, Chan M, et al. (2017) Emission of volatile organic compounds and production of secondary organic aerosol from stir-frying spices. Sci Total Environ 599: 1614-1621.
5. McGranahan G, Murray F (2012) Air pollution and health in rapidly developing countries p. 12.
6. Ott W, Wallace L, McAteer J, Hildemann L (2017) Fine and ultrafine particle exposures on 73 trips by car to 65 non-smoking restaurants in the San Francisco Bay Area. Indoor Air 27: 205-217.
7. Pratali L, Marinoni A, Cogo A, Ujka K, Gilardoni S, et al. (2019) Indoor air pollution exposure effects on lung and cardiovascular health in the High Himalayas, Nepal: An observational study. Eur J Intern Med 61: 81-87.
8. White AJ, Bradshaw PT, Hamra GB (2018) Air pollution and breast cancer: A review. Curr Epidemiol Rep 5: 92-100.
9. Ritz B, Lee PC, Hansen J, Lassen CF, Ketzel M, et al. (2015) Traffic-related air pollution and Parkinson’s disease in Denmark: A case-control study. Environ Health Perspect 124: 351-356.
10. Atkinson R, Kang S, Anderson H, Mills I, Walton H, et al. (2014) Epidemiological time series studies of PM2: 5 and daily mortality and hospital admissions: A systematic review and meta-analysis. Thorax 69: 660-665.
11. Zhao Y, Zhao B (2018) Emissions of air pollutants from Chinese cooking: A literature review. Build Simul 11: 977-995.
12. Andrade A, Dominski FH (2018) Indoor air quality of environments used for physical exercise and sports practice: Systematic review. J Environ Manage 206: 577-586.
13. Singh S (2014) Comparative study of indoor air pollution using traditional and improved cooking stoves in rural households of Northern India. Energy Sustain. Dev 19: 1-6.
14. Wolkoff P (1995) Volatile organic compounds sources, measurements, emissions, and the impact on indoor air quality. Indoor Air 5: 5-73.
15. Keyan Z (2008) Geothermal resources and use for heating in China, In: Workshop for decision makers on direct heating use of geothermal resources in Asia, organized by the United Nations University Geothermal Training Programme (UNU-GTP). TBLRREM TBGMED 11: 11-18.
16. Singer BC, Pass RZ, Delp WW, Lorenzetti DM, Maddalena RL, et al. (2017) Pollutant concentrations and emission rates from natural gas cooking burners without and with range hood exhaust in nine California homes. Build Environ 122: 215-229.
17. Garcia-Algar O, Pichini S, Basagana X, Puig C, Vall O, et al. (2004) Concentrations and determinants of NO₂ in homes of Ashford, UK and Barcelona and Menorca, Spain. Indoor Air 14: 298-304.
18. Raw GJ, Coward SK, Brown VM, Crump DR (2004) Exposure to air pollutants in english homes. J Expo Anal Environ Epidemiol 14: S85-94.
19. Yang W, Lee K, Chung M (2004) Characterization of indoor air quality using multiple measurements of nitrogen dioxide. Indoor Air 14: 105-111.
20. Hänninen O, Lebret E, Ilacqua V, Katsouyanni K, Künzli N, et al. (2004) Infiltration of ambient PM2: 5 and levels of indoor generated non-ETS PM2: 5 in residences of four European cities. Atmos Environ 38: 6411-6423.
21. Gens A, Hurley JF, Tuomisto JT, Friedrich R (2014) Health impacts due to personal exposure to fine particles caused by insulation of residential buildings in Europe. Atmos Environ 84: 213-221.
22. Francisco PW, Gordon JR, Rose B (2010) Measured concentrations of combustion gases from the use of unvented gas fireplaces. Indoor Air 20: 370-379.
23. Mullen NA, Li J, Russell ML, Spears M, Less BD, et al. (2016) Results of the California healthy homes indoor air quality study of 2011–2013: Impact of natural gas appliances on air pollutant concentrations. Indoor Air 26: 231-245.
24. Afshari A, Matson U, Ekberg L (2005) Characterization of indoor sources of fine and ultrafine particles: A study conducted in a full-scale chamber. Indoor Air 15: 141-150.
25. Brown S, Cheng M, Mahoney K (2004) Room chamber assessment of pollutant emission properties of low-emission unflued gas heaters. Indoor Air 14: 84-91.
26. Singer BC, Apte MG, Black DR, Hotchi T, Lucas D, et al. (2009) Natural gas variability in California: Environmental impacts and device performance experimental evaluation of pollutant emissions from residential appliances: Lawrence Berkeley National Lab. (LBNL), Berkeley, CA, USA.
27. Rashno TN, Shams KG, Godini H, Rashidi R, Yusefzadeh A, et al. (2015) Indoor and outdoor air pollutants at residential houses in khorramabad, 2012. J Mazandaran Univ Med Sci 24: 392-399.
28. Amouei T, Ospanova S, Baibatyrova A, Nurbay S, Zhanakhmet G, et al. (2018) Contributions of burner, pan, meat and salt to PM emission during grilling. Environ Res 164: 11-17.
29. Pokhrel AK, Bates MN, Acharya J, Valentiner BP, Chandyo RK, et al. (2015) PM2: 5 in household kitchens of Bhaktapur, Nepal, using four different cooking fuels. Atmos Environ 113: 159-168.
30. Wallace LA, Ott WR, Weschler C (2015) Ultrafine particles from electric appliances and cooking pans: Experiments suggesting desorption/nucleation of sorbed organics as the primary source. Indoor Air 25: 536-546.
31. Huboyo HS, Tohno S, Cao R (2011) Indoor PM2: 5 characteristics and CO concentration related to water-based and oil-based cooking emissions using a gas stove. Aerosol Air Qual Res 11: 401-411.
32. Lee SC, Li WM, Chan LY (2001) Indoor air quality at restaurants with different styles of cooking in metropolitan Hong Kong. Sci Total Environ 279: 181-193.
33. Jiang H, Fang Liu YD, Guang X, Liao LL (2006) Full-scale experimental studies on extinguishing cooking oil fires with water mist. Combust Sci Technol 12: 318-322.
34. Tian L, Zhang G, Liu J, Zheng C, Hao J, et al. (2005) The impact of kitchen on the concentration of indoor air pollutants. Indoor Air 17: 903-907.
35. Cichowicz R, Stelęgowski A (2019) Average hourly concentrations of air contaminants in selected urban, town, and rural sites. Arch Environ Contam Toxicol 77: 197-213.
