Molecular Docking Reveals the Potential of Aliskiren, Dipyridamole, Mopidamol, Rosuvastatin, Rolitetracycline and Metamizole to Inhibit COVID-19 Virus Main Protease

Omar M Aly^*
*Correspondence: Omar M Aly, Department of Medical Chemistry, Minia University, Minia, Egypt, Email:

Keywords

Docking • Aliskiren • Dipyridamole • Mopidamole • Rosuvastatin • Metamizole • Rolitetracycline • Darunavir • N3 • COVID-19 • Protease

Introduction

COVID-19 virus is the causative agent of the 2019-2020 viral pneumonia outbreak that commenced in Wuhan [1-4]. Finding out known drug that inhibit the COVID-19 virus main protease (M^pro) will result in a pivotal role in controlling viral replication and transcription [5,6]. Here, I selected the most promising drugs among my vast screenings to recommend them relying on the molecular docking results obtained in comparison with the ligand N3.

Zhenming Jin, et al. determined the crystal structure of COVID-19 virus M^pro in complex with this compound [7]. The functional polypeptides are released from the polyproteins by extensive proteolytic processing, predominantly by a 33.8-kDa main protease (M^pro), also referred to as the 3C-like protease. M^pro digests the polyprotein at no less than 11 conserved sites, starting with the autolytic cleavage of this enzyme itself from pp1a and pp1ab [8]. The functional importance of M^pro in the viral life cycle, together with the absence of closely related homologues in humans, identifies the M^pro as an attractive target for antiviral drug design [9].

The novel coronavirus 2019 (2019-nCoV) uses the SARS-coronavirus receptor ACE2 and the cellular protease TMPRSS2 for entry into target cells [10].

Here, the most promising drugs were selected to recommend them for potential treatment of the new COVID-19 infection relying on the molecular docking results obtained in comparison with the ligand N3. Chemical structures of the compounds tested in this study are shown in Figure 1. Aliskiren is an oral renin inhibitor that be used for the treatment of hypertension [11]. The reduced expression of ACE2 with Aliskiren treatment could be an interesting option in the context of SARS-CoV-2 infection that requires further investigation [12]. Dipyridamole is platelet aggregation and a phosphodiesterase (PDE) inhibitor [13], also it showed broad spectrum antiviral activity [14-17]. Most importantly, dipyridamole may prevent acute injury and progressive fibrosis of the lung, heart, liver, and kidney associated with COVID-19 infection [18]. Mopidamol is a chemical congener of dipyridamole, similarly, acts as a coronary vasodilator and platelet aggregation inhibitor. In addition, mopidamol has shown antimetastatic properties by inhibiting the adherence of cancer cells to platelets or endothelial cells. Although both compounds cause inhibition of cAMP phosphodiester but mopidamol is 10 times more potent than dipyridamole (Figure 1) [19,20].

Rosuvastatin: Rosuvastatin is a synthetic HMG-CoA reductase inhibitor that is effective in the reduction of total and LDL cholesterol [21]. While no clinical data yet exists for a protective role for statins for COVID-19 infection, there are some data that are suggestive that they may be associated with less severe viral pneumonia. A large matched cohort study found a reduced risk of COPD death and influenza death for patients on moderate dose statins compared to not [22].

Metamizole or dipyrone: Is a painkiller, spasm reliever, and fever reliever that also has anti-inflammatory effects. It is most commonly given by mouth or by injection.

Although it is available over the counter in some countries, it is prescription or banned in other countries, due to its potential for adverse events, including agranulocytosis [23].

Rolitetracycline, launched in the late 1950s, was the first of the semi-synthetic tetracyclines. Rolitetracycline is formed by a Mannich condensation of formaldehyde and pyrrolidine with tetracycline. Rolitetracycline is a pro-drug of tetracycline, in which the pyrrolidine moiety improves bioavailability compared with tetracycline. Rolitetracycline has broad-spectrum Gram-positive activity in vivo, but pH instability limits use to parenteral administration [24].

Rolitetracycline is only found in individuals that have used or taken this drug. It is a pyrrolidinylmethyl tetracycline. Rolitetracycline is a semisynthetic broad-spectrum tetracycline antibiotic used especially for parenteral administration in cases requiring high concentrations or when oral administration is impractical. Rolitetracycline passively diffuses through porin channels in the bacterial membrane and reversibly binds to the 30S ribosomal subunit, preventing binding of tRNA to the mRNA-ribosome complex, and thus interfering with protein synthesis [25]

Darunavir is a once-daily second-generation protease-inhibitor [26,27] that is administered with low-dose ritonavir and two Nucleoside Reverse Transcriptase Inhibitors (NRTI) for treatment of HIV infection [28].

Currently, targeted therapeutics and effective treatments remain very limited. Here, in order to rapidly discover lead compounds for clinical use. Attempts were made to identify new drug leads that target the COVID-19 virus main protease (M^pro). Here, computer-aided drug design was used to find out a known drug to be used as target for the clinical usefulness as COVID-19 inhibitor. The compounds shown in Figure 1. were compared with the M^pro co-crystallized ligand N3.

Docking studies

Target compounds optimization:

The target compounds were constructed into a 3D model. After checking their structures and the formal charges on atoms by 2D depiction, the following steps were carried out: The target compounds were subjected to a conformational search. All conformers were subjected to energy minimization, all the minimizations were performed until a RMSD gradient of 0.01 Kcal/mole and RMS distance of 0.1 Å with MMFF94X force-field and the partial charges were automatically calculated. The obtained database was then saved as MDB file to be used in the docking calculations.

Optimization of the enzymes active site:

The X-ray crystallographic structure of M^pro complexed with N3 was obtained from the Protein Data Bank through the internet [7]. The enzyme was prepared for docking studies by: Hydrogen atoms were added to the system with their standard geometry. The atoms connection and type were checked for any errors with automatic correction. Selection of the receptor and its atoms potential were fixed. Site Finder was used for the active site search in the enzyme structure using all default items. Dummy atoms were created from the site finder of the pocket [29].

Docking of the target molecules to M^pro N3 binding site

Docking of the conformation database of the target compounds was done. The following methodology was generally applied: The enzyme active site file was loaded, and the dock tool was initiated. The program specifications were adjusted to: Dummy atoms as the docking site, alpha triangle as the placement methodology to be used. London dG as scoring methodology to be used and was adjusted to its default values. The MDB file of the ligand to be docked was loaded and dock calculations were run automatically. The obtained poses were studied, and the poses showed best ligand-enzyme interactions were selected and stored for energy calculations (Table 1) (Figures 2-4).

Results and Discussion

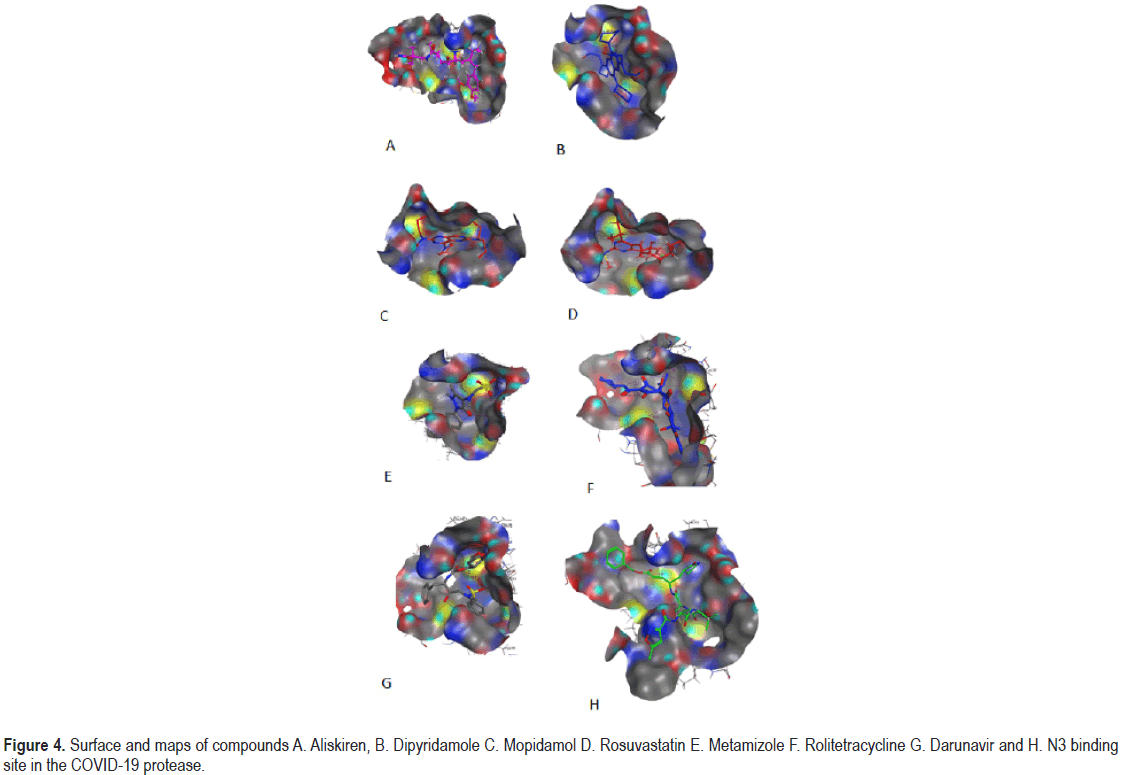

COVID-19 virus M^pro has a Cys–His catalytic dyad, and the substratebinding site is located in a cleft between Domain Ⅰ and Ⅱ. N3 is fitted inside the substrate-binding pocket of COVID-19 virus M^pro showing asymmetric unit containing only one polypeptide. All compounds (a-f) showed nearly similar binding to N3. Results of interaction energies with M^pro are shown in Table 1. Molecular docking simulation of compound a-f into M^pro active site was done. They got stabilized at the N3-binding site of M^pro by variable several electrostatic bonds.

Table 1. Receptor interaction with A. aliskiren, B. dipyridamole, C. mopidamol D. rosuvastatin E. metamizole F. rolitetracycline, G. darunavir, and H. N3 into the N3 binding site in the COVID-19 protease.

Aliskiren was showed the highest binding energy in comparison with the other compounds which showed nearly equal or moderately lesser binding energies.

Conclusion

The molecular modeling of the selected compounds a-f resulted in the discovery of already approved drugs of potential potent activity to be repurposed as COVID-19 protease inhibitors. This will stimulate the evaluation of these drugs as anti COVID-19 especially aliskiren which showed the highest score of binding with the binding site of N3. This will be added to its renin inhibition and advantage of renin inhibition and possibility of the reduced expression of ACE2. Dipyridamole and mopidamol showed a potential to be more M^pro inhibitor than ligand N3 and darunavir. Also, dipyridamole has the property of antiviral activity beside its use to decrease the hypercoagulabilty that happens due to COVID infection in addition to the property of promoting type I interferon (IFN) responses and protecting mice from viral pneumonia. Rolitetracycling is an amazing in its binding mode in the active site of the protease pocket it seemed as it is tailored to be buried in that pocket. Mopidamol and rosuvastatin are slightly better than the co-crystallized ligand N3 and darunavir in binding mode which nominate them as COVID-19 protease inhibitors. Hopefully this study will help in the repurposing a drug for the treatment of COVID-19.

References

1. Zhu, Na, Dingyu Zhang, Wenling Wang and Xingwang Li, et al. "A Novel Coronavirus from Patients with Pneumonia in China, 2019." N Engl J Med 382(2020):727-733.
2. Li, Qun, Xuhua Guan, Peng Wu and Xiaoye Wang, et al. "Early Transmission Dynamics in Wuhan, China, of Novel Coronavirus–Infected Pneumonia." N Engl J Med 382(2020):1199‐1207.
3. Zhou, P, X Yang, X Wang, B Hu and L. Zhang, et al."Pneumonia Outbreak Associated with a New Coronavirus of Probable Bat Origin." Nature 579(2020):270-273.
4. Wu, F, S Zhao, B Yu, YM Chen and W Wang, et al. "A New Coronavirus Associated with Human Respiratory Disease" Nature 579(2020):265-269.
5. Anand, Kanchan, Gottfried J. Palm, Jeroen R. Mesters and Stuart G. Siddell, et al. "Structure of Coronavirus Main Proteinase Reveals Combination of a Chymotrypsin Fold with an Extra α‐Helical Domain." EMBO J 21(2002):3213-3224.
6. Yang, Haitao, Maojun Yang, Yi Ding and Yiwei Liu, et al. "The Crystal Structures of Severe Acute Respiratory Syndrome Virus Main Protease and its Complex with an Inhibitor." Proc Natl Acad Sci 100(2003):13190-13195.
7. Wang, Kailin Yang, Fengjiang Liu, Rendi Jiang and Xinglou Yang, et al. "Structure of M^pro from COVID-19 Virus and Discovery of its Inhibitors." Nature 582(2020):289-293.
8. Hegyi, Annette, and John Ziebuhr. "Conservation of Substrate Specificities among Coronavirus Main Proteases." J Gen Virol 83(2002):595-599.
9. Pillaiyar, Thanigaimalai, Manoj Manickam, Vigneshwaran Namasivayam and Yoshio Hayashi, et al. "An Overview of Severe Acute Respiratory Syndrome–Coronavirus (SARS-CoV) 3CL Protease Inhibitors: Peptidomimetics and Small Molecule Chemotherapy." J Med Chem 59(2016):6595-6628.
10. Hoffmann, Markus, Hannah Kleine-Weber, Nadine Krüger and Marcel Muller, et al. "The Novel Coronavirus 2019 (2019-nCoV) Uses the SARS-Coronavirus Receptor ACE2 and the Cellular Protease TMPRSS2 for Entry into Target Cells." BioRxiv (2020).
11. Sanoski, Cynthia A. "Aliskiren: an Oral Direct Renin Inhibitor for the Treatment of Hypertension." J Hum Pharmacol Drug Ther 29(2009):193-212.
12. Mourad, J J, and Levy B I. "Interaction between RAAS Inhibitors and ACE2 in the Context of COVID-19. Nat Rev Cardiol 10(2020).
13. Gresele, Paolo, Stefania Momi, and Emanuela Falcinelli. "Anti‐Platelet Therapy: Phosphodiesterase Inhibitors." Br J Clin Pharmacol 72(2011):634-646.
14. Tonew, E M K. Indulen, and Dzeguze D R. "Antiviral Action of Dipyridamole and its Derivatives against Influenza Virus A." Acta Virol 26(1982):125-129.
15. Fata-Hartley, Cori L, and Ann C. Palmenberg. "Dipyridamole Reversibly Inhibits Mengovirus RNA Replication." J Virol 79(2005):11062-11070.
16. Tenser, Richard B, Andrew Gaydos, and Kathleen A. Hay. "Inhibition of Herpes Simplex Virus Reactivation by Dipyridamole." Antimicrob Agents Chemother 45(2001):3657-3659.
17. Szebeni, Janos, Sharon M. Wahl, Mikulas Popovic and Larry M. Wahl, et al. "Dipyridamole Potentiates the Inhibition by 3'-Azido-3'-Deoxythymidine and Other Dideoxynucleosides of Human Immunodeficiency Virus Replication in Monocyte-macrophages." Proc Acad Sci 86(1989):3842-3846.
18. Emmons, P R, M J G Harrison, A J Honour and J R A Mitchell. "Effect of Dipyridamole on Human Platelet Behaviour." Lancet 286(1965):603-606.
19. Bunag, Ruben D, C. Roberto Douglas, Shoichi Imai, and ROBERT M. BERNE. "Influence of a Pyrimidopyrimidine Derivative on Deamination of Adenosine by Blood." Circ Res 15(1964):83-88.
20. De la Cruz, J P, D. Moron, and F Sanchez De La Cuesta. "Antiplatelet Effect of the Pyrimido-Pyrimidinic Derivative RA-642." Thromb Res 63(1991): 463-468.
21. Watanabe, Masamichi, Haruo Koike, Teruyuki Ishiba and Tetsuo Okada, et al. "Synthesis and Biological Activity of Methanesulfonamide Pyrimidine-and N-Methanesulfonyl Pyrrole-Substituted 3, 5-Dihydroxy-6-Heptenoates, a Novel Series of HMG-CoA Reductase Inhibitors." Bioorg Med Chem 5(1997):437-444.
22. Frost, Floyd J, Hans Petersen, Kristine Tollestrup and Betty Skipper. "Influenza and COPD Mortality Protection as Pleiotropic, Dose-Dependent Effects of Statins." Chest 131(2007):1006-1012.
23. Shimada, Steven G, Ivan G Otterness, and John T Stitt. "A Study of the Mechanism of Action of the Mild Analgesic Dipyrone." Agents Act 41(1994):188-192.
24. Liu, Fan, and Andrew G Myers. "Development of a Platform for the Discovery and Practical Synthesis of New Tetracycline Antibiotics." Curr Opin Chem Biol 32(2016):48-57.
25. Chopra, I, P M Hawkey, and M Hinton. "Tetracyclines, Molecular and Clinical Aspects." J Antimicrob Chemother 29(1992):245-277.
26. Tremblay, Cécile L. "Combating HIV Resistance–Focus on Darunavir." Ther Clin Risk Manag 4(2008):759-766.
27. McKeage, Kate, Caroline M Perry, and Susan J Keam. "Darunavir: A Review of itsUse in the    Management of HIV Infection in Adults" Drugs 69(2009):477-503.
28. Lefebvre, Eric, and Celia A Schiffer. "Resilience to Resistance of HIV-1 Protease Inhibitors: Profile of Darunavir." AIDS Revi 10(2008):131-142.
29. Liu, Xiaoyan, Zhe Li, Shuai Liu and Zhanghua Chen et al. "Therapeutic Effects of Dipyridamole on COVID-19 Patients with Coagulation Dysfunction." MedRxiv (2020).
