Molecular Docking Study of Coumarin Derivatives Binding to Caspase-7, a Key Player in the Apoptosis Pathway

M.N.A. Seneviratne^*
*Correspondence: M.N.A. Seneviratne, Department of Science, College of Chemical Sciences, University of Kelaniya, Sri Lanka, India, Email:

Keywords

Caspase-7 protein • Coumarin derivatives • Inhibitory activity

Introduction

The mechanisms which are possibly involved in cisplatin induced nephrotoxicity could directly affect the renal tubular epithelial cells [1]. Also it induces apoptosis, deregulate cell cycle proteins and cause inflammation [2]. Hydrangea paniculata is a medicinal plant with anti-inflammatory activity which has the ability to reduce renal injury through inhibition of caspase 3 and 7 proteases [3]. Caspase-7 is selected for the study because activation of Caspase-7 may prove to be very useful in conditions where excessive cell death or inflammation causes diseases [4]. Hydrangea paniculata has many coumarin derivatives as functional constituents and it contains high amounts of coumarin glycosides [5]. Skimmin and Apiosylskimmin coumarins are the major constituents present along with other coumarin glycosides. Research has shown that these coumarins inhibit the cisplatin induced apoptosis and reduce acute kidney damage caused by cisplatin. Skimmin and apiosylskimmin coumarin inhibition of caspase-7 was compared with the coumarin derivatives investigated in this study using molecular docking.

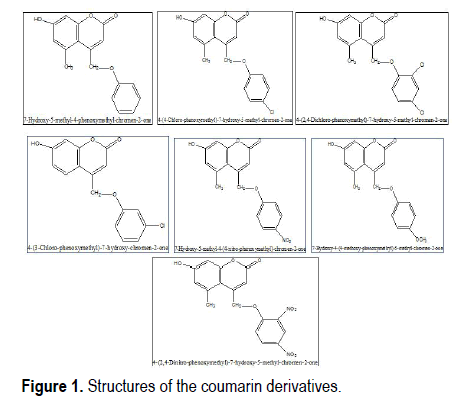

Although caspase inhibitors have been developed with some degree of specificity, most of them are peptide based molecules with low effectiveness, and are quickly destroyed in vivo. In this study coumarin derivatives were selected as ligands in the inhibition process and their binding interactions with caspase-7 are compared with that of the standard molecules (Figure 1) [6].

Materials and Methods

Methodology

Ligand preparation: The coumarin derivative structures and the standard ligands were prepared using Spartn’14 software [7]. After sketching the molecules energy was minimized and final molecules were obtained by applying density functional/B3LYP/6-31G** level to obtain the most stable structures.

Protein preparation: PDB ID 4FDL protein structure was obtained from the protein data bank and prepared using Chimera 1.9 software [8]. The solvents and ligands present were deleted and H atoms and charges were added.

Molecular docking: The crystal structure of protein PDB ID 4FDL was docked with a set of coumarin ligands using AutoDockVina in PyRx Version 0.9.4 and GOLD 5.3.01 in both rigid and flexible options [9-11].

In Auto Dock Vina software the search space box for the 4FDL protein was set by marking Tyr223, Cys290, Glu216, Phe221, Val292 and Met294 residues. When flexible docking option was used the above mentioned residues were made flexible [12]. Exhaustiveness and the number of modes were set as 100 and 10 respectively. In GOLD 5.3.0 software the binding site was defined by entering the above mentioned amino acid residues and the cavity radius was set as 10Å. The scoring function applied was ChemPLP. The number of genetic algorithm runs was set as 30 and the residues were made flexible when flexible docking was performed [13].

The docking results obtained from the Auto Dock Vina were visualized using BIOVIA discovery studio 2016 client and the interaction diagrams were obtained for each of the ligand protein interactions [14].

Results and Discussion

In the allosteric active site of caspase-7 the binding pocket is situated away from the catalytic active site Cys186, and placed in the dimer interface [15]. According to previous studies it has proved that this binding site has a high affinity for small ligands and the docking results of the ligands in order of highest binding affinity are listed in Table 1. Coumarin derivatives were compared with the standard ligands, FICA, DICA, 1-methyl-5-nitroisatin which have previously shown high affinity towards the allosteric binding site of caspase-7 and have shown successful inhibition of caspase-7 [16]. Skimmin and Apiosyl skimmin coumarins present in H. paniculata plant extracts were the other two standards [17].

Table 1. Binding affinities of ligands in the caspase dimer interface from Auto Dock Vina and SCORE values obtained from GOLD software.

According to flexible docking results, all coumarin derivatives show a higher binding affinity when compared to standard ligands 1, 2, 3 and 4. Coumarin derivatives, ligands 2, 3, 5 and 7 gave higher binding affinity with respect to reference ligand 5, Apiosylskimmin which has the highest binding affinity out of the standard ligands. When considering the Gold results, all the 7 coumarin structures gave a higher score compared to the standard ligands 1, 2, 3 and 4.

Ligands 6 and 7 gave scores of 74.33 and 75.64 respectively, which is greater than the score of Apiosyl skimming, 73.84, which is the highest score among the standard ligands.

According to both the Auto Dock Vina and GOLD score values, coumarin 7 had the highest binding affinity out of all the coumarins and it is greater than that of Apiosyl skimming (Figure 2).

Conclusion

Computational studies were conducted to determine potency of coumarin derivatives as candidates for development of inhibitors to caspase-7. Docking studies were performed using Auto Dock Vina and GOLD software. Ligand 7 4-(2, 4-Dinitrophenoxymethyl)- 7-hydroxy-chromen-2-one, showed the highest binding affinity and GOLD score value. The ligand is stabilized in the active site by forming H bond interactions with the protein, and also Pi-Pi stacking interactions with the aromatic rings. Effective interactions with the residues CYS290, GLU216, PHE221, VAL292 of the dimerization interface in the allosteric binding site were formed which showed evidence for the enhanced stability of the ligand in the active site. Therefore, coumarin derivative ligand 7, (4-(2, 4-Dinitrophenoxymethyl)- 7-hydroxy-chromen-2-one, can be considered as a potential drug target for the inhibition of caspase-7.

References

1. Miller RP, Tadagavadi RK, Ramesh G and Reeves WB, et al. “Mechanisms of Cisplatin Nephrotoxicity.” Toxins 2 (2010): 2490–2518. [Crossref] [Google Scholar] [PubMed]
2. Basile DP, Anderson MD and Sutton TA. “Pathophysiology of Acute Kidney Injury.” Compr Physiol 2 (2012): 1303–1353. [Crossref] [Google Scholar] [PubMed]
3. Sen Z, Jie M, Jingzhi Y and Dongjie W, et al. “Total Coumarins from Hydrangea Paniculata Protect against Cisplatin-Induced Acute Kidney Damage in Mice by Suppressing Renal Inflammation and Apoptosis.” Evid Based Complement Alternat Med 2017 (2017): 5350161. [Crossref] [Google Scholar] [PubMed]
4. Lamkanfi M and Kanneganti TD. “Caspase-7: A Protease Involved in Apoptosis and Inflammation.” Int J Biochem Cell Biol 42 (2010): 21–24. [Crossref] [Google Scholar] [PubMed]
5. Ma J, Li CJ, Yang JZ and Li Y, et al. “Three New Coumarin Glycosides from the Stems of Hydrangea Paniculata.” J Asian Nat Prod Res 19 (2017): 320–326. [Crossref] [Google Scholar] [PubMed]
6. Lee D, Long SA, Murray JH and Adams JL, et al. “Potent and Selective Nonpeptide Inhibitors of Caspases 3 and 7 Potent and Selective Nonpeptide Inhibitors of Caspases 3 and 7.” J Biol Chem 275 (2001): 2015–2026. [Crossref] [Google Scholar] [PubMed]
7. Visegrady B, Than NG, Kilar F and Sumegi B, et al. “Homology Modelling and Molecular Dynamics Studies of Human Placental Tissue Protein 13 (Galectin-13).” Protein Eng 14 (2001): 875–880. [Crossref] [Google Scholar] [PubMed]
8. Pettersen EF, Goddard TD, Huang CC and Couch GS, et al. “UCSF Chimera-A Visualization System for Exploratory Research and Analysis.” J Comput Chem 25 (2004): 1605–1612. [Crossref] [Google Scholar] [PubMed]
9. Rizvi SMD, Shakil S and Haneef MA. “Simple Click by Click Protocol to Perform Docking: Autodock 4.2 Made Easy for Non-Bioinformaticians.” EXCLI J 12 (2013): 830–857. [Crossref] [Google Scholar] [PubMed]
10. Dallakyan S and Olson AJ. “Small Molecule Library Screening by Docking with PyRx.” Methods Mol Biol 1263 (2015): 243–250. [Crossref] [Google Scholar] [PubMed]
11. Joy S, Nair PS, Hariharan R and Pillai MR. “Detailed Comparison of the Protein-Ligand Docking Efficiencies of GOLD, a Commercial Package and ArgusLab, a Licensable Freeware.”In Silico Biol 6 (2006): 601–605. [Crossref] [Google Scholar] [PubMed]
12. Azam F, Madi AM and Ali HI. “Molecular Docking and Prediction of Pharmacokinetic Properties of Dual Mechanism Drugs That Block MAO-B and Adenosine A2A Receptors for the Treatment of Parkinson’s Disease.”J Young Pharm 4 (2012): 184–192. [Crossref] [Google Scholar] [PubMed]
13. Jones G, Willett P, Glen RC and Leach AR, et al. “Development and Validation of a Genetic Algorithm for Flexible Docking.” J Mol Biol 267 (1997): 727–748. [Crossref] [Google Scholar] [PubMed]
14. Jamal QMS, Lohani M, Siddiqui MH and Haneef M, et al. “Molecular Interaction Analysis of Cigarette Smoke Carcinogens NNK and NNAL with Enzymes Involved in DNA Repair Pathways: An in Silico Approach.”Bioinformation 8 (2012): 795–800. [Crossref] [Google Scholar] [PubMed]
15. Hardy JA, Lam J, Nguyen JT and O’Brien T, et al. “Discovery of an Allosteric Site in the Caspases.”Proc Natl Acad Sci USA 101 (2004): 12461–12466. [Crossref] [Google Scholar] [PubMed]
16. Feldman T, Kabaleeswaran V, Jang SB and Antczak C, et al. “A Class of Allosteric Caspase Inhibitors Identified by High-Throughput Screening.” Mol Cell 47 (2012): 585–595. [Crossref][Google Scholar] [PubMed]
17. Lee D, Long SA, Murray JH and Adams JL, et al. “Potent and Selective Nonpeptide Inhibitors of Caspases 3 and 7.” J Biol Chem 44 (2000): 2015–2026. [Crossref] [Google Scholar]
