Positive Response to Camrelizumab and Apatinib Combination Therapy in a Patient with Stage IIIC1 Cervical Cancer: A Case Report

Zhi-Ping Liu¹, Si-Han Liu¹, He Zhao², Fangying Ruan², Bai Xu^3* and Da-Xin^1
*Correspondence: Bai Xu, Department of Gynaecology, The First Affiliated Hospital of Harbin Medical University, 23 Youzheng Street, Nangang District, Harbin, Heilongjiang Province, 150001, China, Email:

Keywords

Cervical cancer • Immunotherapy • Camrelizumab • Apatinib • Radio-chemotherapy resistance

Introduction

Cervical cancer is a prevalent gynecological cancer in developing countries, with persistent human papillomavirus (HPV) infection identified as a key pathogenic factor [1]. While the incidence of cervical cancer has decreased with widespread vaccination, the number of new cases remains high due to routine screening. In 2020, it was estimated that 600,000 new cases and 340,000 deaths from cervical carcinoma occurred in 185 countries [2,3]. Advanced cervical cancer is associated with poor prognosis and limited treatment options, but promising results have been seen in recent years with the use of immune checkpoint inhibitors (ICIs) [4]. The KEYNOTE-158 study evaluated the safety and efficacy of pembrolizumab in treating advanced cervical cancer. Based on the study results, the FDA approved pembrolizumab for second-line treatment in patients with recurrent or metastatic cervical cancer who test positive for PD-L1 or have deficient mismatch repair/ microsatellite instability-high (dMMR/MSI-H). The CheckMate 358 study enrolled 19 patients with advanced cervical cancer who were treated with nivolumab, showing that the Objective Response Rate (ORR), Disease Control Rate (DCR), and Progression-Free Survival (PFS) were 26.3%, 70.8%, and 5.5 months, respectively [4-6]. However, the efficacy of ICIs as single agents is not satisfactory, with ORR ranging from 14.6% to 26.3%. Therefore, it is crucial to explore new therapeutic methods to improve the survival outcomes of patients with recurrent or metastatic cervical cancer.

The KEYNOTE-826 trial was a randomized, double-blind, multicenter Phase III study that evaluated the clinical efficacy of pembrolizumab in combination with platinum-containing chemotherapy as first-line treatment for persistent, recurrent, or metastatic advanced cervical cancer. The study found that PFS and OS were significantly longer with pembrolizumab combined with chemotherapy ± bevacizumab than with chemotherapy ± bevacizumab alone [7]. As a result, pembrolizumab + chemotherapy ± bevacizumab was approved by the FDA for the first-line treatment of recurrent or metastatic cervical cancer patients with PD-L1 positivity based on the study's results.

The CLAP study, a multicenter, single-arm, phase II trial, evaluated the efficacy and safety of the PD-1 inhibitor camrelizumab in combination with the antiangiogenic drug apatinib in the treatment of recurrent or metastatic cervical cancer. The results showed that the ORR and median PFS were 55.6% and 8.8 months, respectively, indicating that camrelizumab + apatinib had good antitumor activities and tolerable adverse events, potentially making it a new treatment option for patients with advanced cervical cancer [8].

Here, we present a case of a patient with stage IIIC1 cervical cancer who had a partial response to radio-chemotherapy and responded well to a combination of Camrelizumab + Apatinib, with a survival time of 31 months.

Case Presentation

In December 2019, a 53-year-old Chinese woman presented with abnormal heavy vaginal bleeding and was treated for hemostasis and received a contraceptive device in the outpatient clinic. However, the patient refused further examination and abandoned treatment. Due to the COVID-19 pandemic, she continued to suffer from sporadic vaginal bleeding without consulting a doctor. On August 29, 2020, the patient again experienced extremely heavy vaginal bleeding. A color Doppler ultrasonography examination showed a borderless and uneven hypoechoic mass in the cervix, measuring approximately 7.9 cm × 8.1 cm × 8.7 cm. A cervical biopsy revealed squamous cell carcinoma (Figure 1). A systemic PET-CT (Positron Emission Tomography- Computed Tomography) examination was performed on September 24, 2020, which showed a cervical mass measuring 8.9 cm × 9.7 cm × 6.5 cm, with observed bilateral extrailiac para-vascular lymph node metastasis (Figure 2A). Based on the 2019 FiGO staging system, the patient was diagnosed with stage IIIC1 uterine cervical cancer.

On September 25, 2020, the patient was treated with albumin paclitaxel (260 mg/m²) plus carboplatin (AUC=5 mg/mL•min), which successfully controlled vaginal bleeding after one cycle of chemotherapy. Physical examination revealed the presence of a cauliflower-like mass occupying the cervix, with no visible normal cervix and fornix. The surface of the mass displayed dark red rotten tissue, with the mass growing into the vagina and occupying the upper half. Additionally, a firm swelling was found bilaterally and was immobilized to the pelvic wall. The patient then received pelvic radiotherapy, concurrent chemotherapy with cisplatin (30 mg/m²/week) for 4 cycles, and brachytherapy (HR-CTV D90 7Gy) with intrauterine tube and needle insertion for 3 cycles. However, the brachytherapy was discontinued due to grade IV neutropenia. The patient resumed treatment on January 11, 2021, after neutrophil counts returned to normal, and received the fourth brachytherapy with a prescription dose of HR-CTV D90 7Gy and one cycle of chemotherapy with albumin paclitaxel (260 mg/m²) combined with carboplatin (AUC=5 mg/mL•min). Pelvic magnetic resonance imaging (MRI) conducted on February 21, 2021, after radical chemoradiotherapy showed that the size of the mass had shrunk to 6.6 cm × 5.7 cm × 4.2 cm (Figure 2B), with partial response being evaluated as the effective treatment outcome.

In September 2020, the paraffin-embedded tissue of cervical biopsies was subjected to Next-Generation Sequencing (NGS) and Immunohistochemistry (IHC). The results, as shown in Table 1, indicated that the expression of PD-L1 was positive, and the tumor genetic mutations comprised PTEN exon8 T319X, MTOR exon47 S2215F, ARID1A exon15 R1276X, PTEN exon2 P30Qfs*24, PIK3CA exon3 G118D, FGFR2 exon13 E565A mutations. On February 22, 2021, the patient underwent treatment with camrelizumab (200 mg/) + apatinib mesylate (250mg/qd.po) every 3 weeks/ cycle for six cycles. Following the six cycles of treatment, pelvic MRI showed that the cervical mass had disappeared (Figure 3C), and the treatment effect was evaluated as complete response. Gynecological examination indicated that the vaginal atrophy was narrow, no tumor was detected in the cervix, with normal morphology and rough surface mucosa. The cervix was slightly tough, and the cervical mass was not palpated during bimanual pelvic examination. The patient continued the combined therapy for two cycles. In August 2021, the oral administration of apatinib was stopped due to hemorrhoids and hematochezia, while camrelizumab was continued for three cycles (Table 1).

On October 12, 2021, there was an increase in glutamate aminotransferase to 170.70 U/L (normal range 5-35 U/L) and aspartate aminotransferase to 71.10 U/L (normal range 8-40 U/L), which was determined to be drug-induced liver hepatic insufficiency, leading to the suspension of camrelizumab. To manage this, the patient took Bicyclol tablets (50mg once, three times a day) and Glutathione tablets (400 mg once, three times a day) for three weeks, without glucocorticoid treatment, until the two transaminases returned to normal. On November 8, 2021, the patient resumed camrelizumab treatment.

On November 16, 2021, the physical examination showed vaginal adhesion and poor cervical inspection. The results of the color doppler ultrasonography of the rectum and crissum on November 07, 2021, revealed that the local intestinal wall's echo about 4 cm away from the anal margin was not uniform, with an irregular outline and unclear boundaries, suspected rectal invasion or adhesion with the cervix and vagina. The strong echo line in the soft tissue between the cervix and rectum's continuity was also interrupted. The pelvic MRI on November 08, 2021, showed an unclear posterior wall of the superior segment of the vagina from the anterior wall of the rectum, with a disappearance of the fat space, which raised suspicion of rectal invasion or adhesion. The colonoscopy and cystoscopy on November 23, 2021, indicated moderate chronic inflammation of the mucosa, with ruptured hyperemia in the posterior wall of the bladder near the triangle caused by radiotherapy. The patient then underwent PET-CT on November 25, 2021, which revealed elevated standard uptake value (SUV) of the cervical focal mass, and the cervical area was adhered to the rectum, resulting in unclear demarcation (Figure 3D2 and Figure 3D3).

The gynecologic-oncology Multiple Disciplinary Team (MDT) discussed the patient's case, and most doctors believed that the invading rectum backward was likely caused by cervical tumor recurrence, recommending radical surgery. However, surgery was not performed due to the patient's inability to tolerate colostomy. On January 4, 2022, the patient received one cycle of liposomal doxorubicin + cisplatin, achieving stable disease status after chemotherapy based on pelvic MRI and rectal and perianal color doppler ultrasonography. Therefore, abdominal total hysterectomy + bilateral adnexectomy + radical resection of rectal cancer (Hartman) + sigmoidostomy were performed on February 28, 2022. The postoperative pathological findings revealed inflammation and necrosis (Figure 2C), with no tumor cells found in the whole uterus, double appendages, part of the vagina, rectum, and part of the colon.

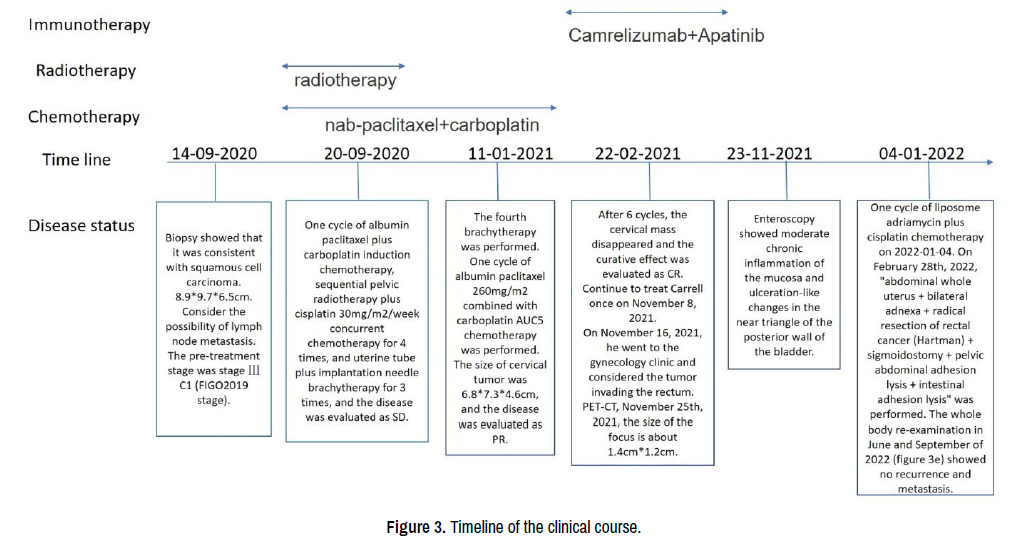

The timeline of the clinical course is shown in Figure 3. During this process, the main adverse event was grade 2 Reactive Cutaneous Capillary Endothelial Proliferation (RCCEP). Despite receiving no postoperative antitumor therapy, there was no observed tumor recurrence or metastasis during the systemic review in June, September, and December 2022 (Figure 2E).

Discussion

We present a case study of a patient diagnosed with stage IIIC1 cervical cancer who displayed positive response to treatment with the PD-1 inhibitor, camrelizumab, in conjunction with the antiangiogenic agent, apatinib, after experiencing resistance to radio-chemotherapy. Six cycles of this treatment led to a complete disappearance of the tumor as indicated by a pelvic MRI. However, a pathology examination performed nine months later revealed pseudoprogression. Immunotherapy presents a significant challenge to clinical work as traditional criteria for evaluating tumor therapy are often inadequate. In a secondary analysis of the CLAP trial, it was discovered that PIK3CA, STK11, FBXW7, and PTEN were the most common genetic mutations and that the PI3K/AKT pathway was the most frequently dysregulated pathway in advanced cervical cancer. This analysis also revealed that genetic alterations in PIK3CA, PTEN, ERBB3, and the PI3K/AKT pathway could serve as novel predictive biomarkers for PD-1 inhibitor combination therapy in cervical cancer patients [9]. In a prospective phase II trial involving 42 efficacy-evaluable patients with recurrent or metastatic cervical cancer, sintilimab combined with anlotinib showed an ORR and median PFS of 54.8% and 9.4 months, respectively. An exploratory analysis revealed that patients with higher PD-L1 CPS scores and those with PIK3CA mutations had a higher ORR [10]. Our patient was found to have positive PD-L1 expression and PTEN, MTOR, ARID1A, PIK3CA, and FGFR2 mutations based on an immunohistochemical test and next-generation sequencing. We treated the patient with a combination of PD-1 inhibitor and antiangiogenic agents, which showed significant efficacy and good tolerance based on the results of these studies and examinations.

Peripheral Blood Lymphocytes (PBLs) have emerged as biomarkers that can predict the clinical prognosis of various malignant tumors [11-14]. Depending on their biological functions and the expression of cell surface antigens, lymphocyte subsets can be classified into T cells, B cells, and Natural Killer (NK) cells. T lymphocytes reflect the state of human cellular immune function, while B lymphocytes can present antigens to T cell immune responses and activate with macrophages to kill tumor cells [15-17]. Natural killer (NK) cells, on the other hand, play a key role in tumor immune surveillance [18]. In our case, the total number of T lymphocytes, B lymphocytes, and NK cells showed a significant increase after treatment with camrelizumab plus apatinib (Table 2), indicating the efficacy of this treatment for advanced cervical cancer patients (Table 2).

Clinicians must remain vigilant for the occurrence of pseudoprogression when administering immunotherapy. Updating the immunotherapy-related clinical efficacy evaluation system and relevant biomarkers could assist clinicians in accurately identifying pseudoprogression and other unconventional immunotherapy-related reactions, leading to better patient outcomes. Overall, our case demonstrates that PD-L1–positive cervical cancer patients who cannot tolerate chemotherapy and radiotherapy may benefit from the combination of camrelizumab and apatinib. The positive response observed in our patient warrants further investigation of Immune Checkpoint Inhibitors (ICIs) in combination with antiangiogenic agents in advanced cervical cancer patients. Moreover, genetic alterations detected by NGS could potentially serve as predictive biomarkers for PD-1 inhibitor combination therapy in cervical cancer patients.

Conclusion

Our case demonstrates that PD-L1–positive cervical cancer patients who cannot tolerate chemotherapy and radiotherapy may benefit from camrelizumab combined with apatinib. Our patient's positive outcome supports further investigation of immune checkpoint inhibitors (ICIs) in combination with antiangiogenic agents for advanced cervical cancer patients. Furthermore, NGS-detected genetic alterations could potentially serve as predictive biomarkers in cervical cancer patients undergoing PD-1 inhibitor combination therapy.

Acknowledgement

Not applicable.

Funding

No funding was received.

Authors Contributions

ZPL and SHL were responsible for the conceptualization of the present study and writing the manuscript. HZ, FYR，BX and DX acquired the majority of the data, analyzed the data and prepared the original draft. BX and DX was responsible for editing and performing critical review of the manuscript. All authors read and approved the final manuscript for publication.

Ethics Approval and Consent to Participate

The study involving a human participant was reviewed and approved by The First Affiliated Hospital of Harbin Medical University, Harbin city, Heilongjiang Province, China. Written informed consent was obtained from the patient and all procedures were conducted in accordance with the Declaration of Helsinki.

Patient Consent for Publication

The patient provided consent for publication.

Competing Interests

The authors declare that they have no competing interests.

References

1. https://www.iarc.fr/faq/latest-global-cancer-data-2020-qa/
2. Luvero, Daniela, Francesco Plotti, Alessia Aloisi, and Stella Capriglione, et al. "Patients treated with neoadjuvant chemotherapy+ radical surgery+ adjuvant chemotherapy in locally advanced cervical cancer: long-term outcomes, survival and prognostic factors in a single-center 10-year follow-up." Med oncol 33 (2016): 1-7.

Google Scholar, Crossref, Indexed at

3. Angioli, Roberto, Francesco Plotti, Daniela Luvero, and Alessia Aloisi, et al. "Feasibility and safety of carboplatin plus paclitaxel as neoadjuvant chemotherapy for locally advanced cervical cancer: a pilot study." Tumor Biol 35 (2014): 2741-2746.

Google Scholar, Crossref, Indexed at

4. Chung, Hyun Cheol, Jan HM Schellens, Jean-Pierre Delord, and Ruth Perets et al. "Pembrolizumab treatment of advanced cervical cancer: updated results from the phase 2 KEYNOTE-158 study." J Clin Oncol (2018): 5522-5522.

Google Scholar, Crossref, Indexed at

5. Frenel, Jean-Sebastien, Christophe Le Tourneau, Bert O’Neil, and Patrick A. Ott, et al. "Safety and efficacy of pembrolizumab in advanced, programmed death ligand 1–positive cervical cancer: results from the phase Ib KEYNOTE-028 trial." J Clin Oncol 35 (2017): 4035-4041.

Google Scholar, Crossref, Indexed at

6. Hollebecque, Antoine, Tim Meyer, Kathleen N. Moore, and Jean-Pascal H. Machiels, et al. "An open-label, multicohort, phase I/II study of nivolumab in patients with virus-associated tumors (CheckMate 358): Efficacy and safety in recurrent or metastatic (R/M) cervical, vaginal, and vulvar cancers." J Clin Oncol 35 (2017):5504.

Google Scholar, Crossref, Indexed at

7. Colombo, Nicoletta, Coraline Dubot, Domenica Lorusso, and M. Valeria Caceres, et al. "Pembrolizumab for persistent, recurrent, or metastatic cervical cancer." N Engl J Med 385 (2021): 1856-1867.

Google Scholar, Crossref, Indexed at

8. Lan, Chunyan, Jingxian Shen, Yin Wang, and Jundong Li, et al. "Camrelizumab plus apatinib in patients with advanced cervical cancer (CLAP): a multicenter, open-label, single-arm, phase II trial." J Clin Oncol 38 (2020): 4095.

Google Scholar, Crossref, Indexed at

9. Huang, Xin, Minjun He, Hongyu Peng, and Chongjie Tong. "Correction: Genomic profiling of advanced cervical cancer to predict response to programmed death-1 inhibitor combination therapy: a secondary analysis of the CLAP trial." J Immunother 10 (2022): e002223corr1.

Google Scholar, Crossref, Indexed at

10. Xu, Qin, Junjie Wang, Yang Sun,and Yibin Lin, et al. "Efficacy and safety of sintilimab plus anlotinib for PD-L1–positive recurrent or metastatic cervical cancer: a multicenter, single-arm, prospective phase II trial." ." J Clin Oncol 40 (2022): 1795.

Google Scholar, Crossref, Indexed at

11. Shinto, Eiji, Kazuo Hase, Yojiro Hashiguchi, and Akinori Sekizawa, et al. "CD8+ and FOXP3+ tumor-infiltrating T cells before and after chemoradiotherapy for rectal cancer." Ann Surg Oncol 21 (2014): 414-421.

Google Scholar, Crossref, Indexed at

12. Teng, Feifei, Xiangjiao Meng, Li Kong, and Dianbin Mu, et al. "Tumor-infiltrating lymphocytes, forkhead box P3, programmed death ligand-1, and cytotoxic T lymphocyte–associated antigen-4 expressions before and after neoadjuvant chemoradiation in rectal cancer." Transl Res 166 (2015): 721-732.

Google Scholar, Crossref, Indexed at

13. Clarke, Sarah L., Gareth J. Betts, Andrea Plant, and Kate L. Wright, et al. "CD4+ CD25+ FOXP3+ regulatory T cells suppress anti-tumor immune responses in patients with colorectal cancer." PloS one 1 (2006): e129.

Google Scholar, Crossref, Indexed at

14. Tang, Chad, Zhongxing Liao, Daniel Gomez, and Lawrence Levy, et al. "Lymphopenia association with gross tumor volume and lung V5 and its effects on non-small cell lung cancer patient outcomes." Int J Radiat Oncol Biol Phys 89 (2014): 1084-1091.

Google Scholar, Crossref, Indexed at

15. Schmidt, Marcus, Daniel Böhm, Christian von Törne, and Eric Steiner, et al. "The humoral immune system has a key prognostic impact in node-negative breast cancer." Cancer Res 68 (2008): 5405-5413.

Google Scholar, Crossref, Indexed at

16. Kim, Ryungsa, Manabu Emi, Kazuaki Tanabe, and Koji Arihiro. "Tumor-driven evolution of immunosuppressive networks during malignant progression." Cancer Res 66 (2006): 5527-5536.

Google Scholar, Crossref, Indexed at

17. Ben-Baruch, A. "Inflammation-associated immune suppression in cancer: the roles played by cytokines, chemokines and additional mediators." Semin Cancer Biol 16 (2006): 38-52.

Google Scholar, Crossref, Indexed at

18. Gutiérrez-Hoya, Adriana, and Isabel Soto-Cruz. "NK cell regulation in cervical cancer and strategies for immunotherapy." Cells 10 (2021): 3104.

Google Scholar, Crossref, Indexed at
